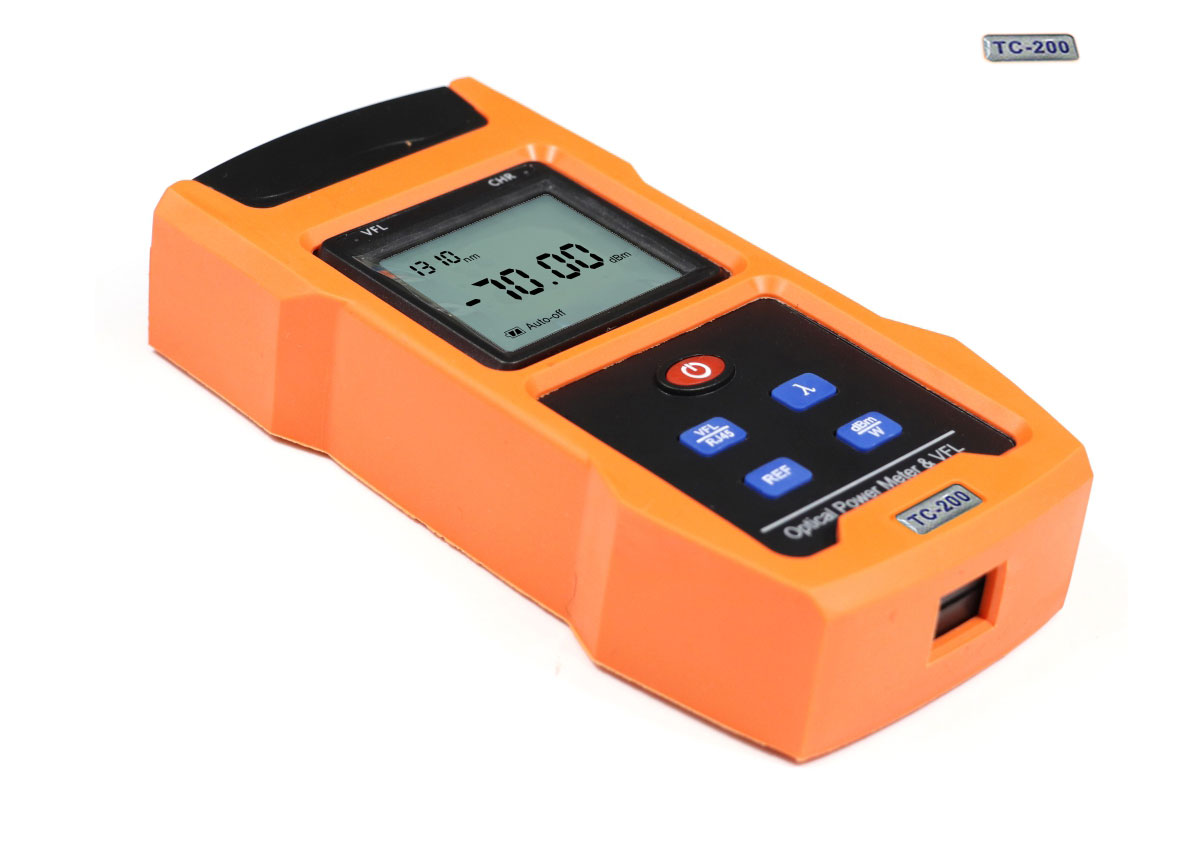

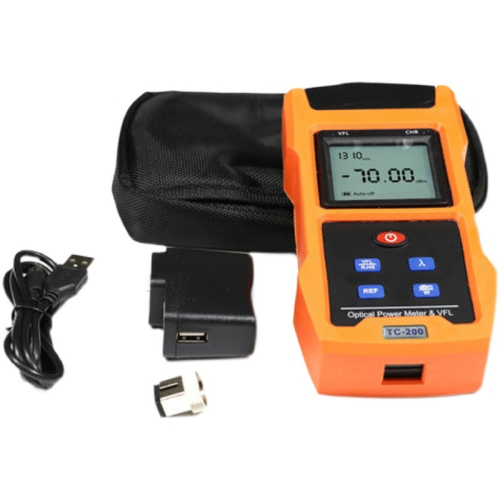

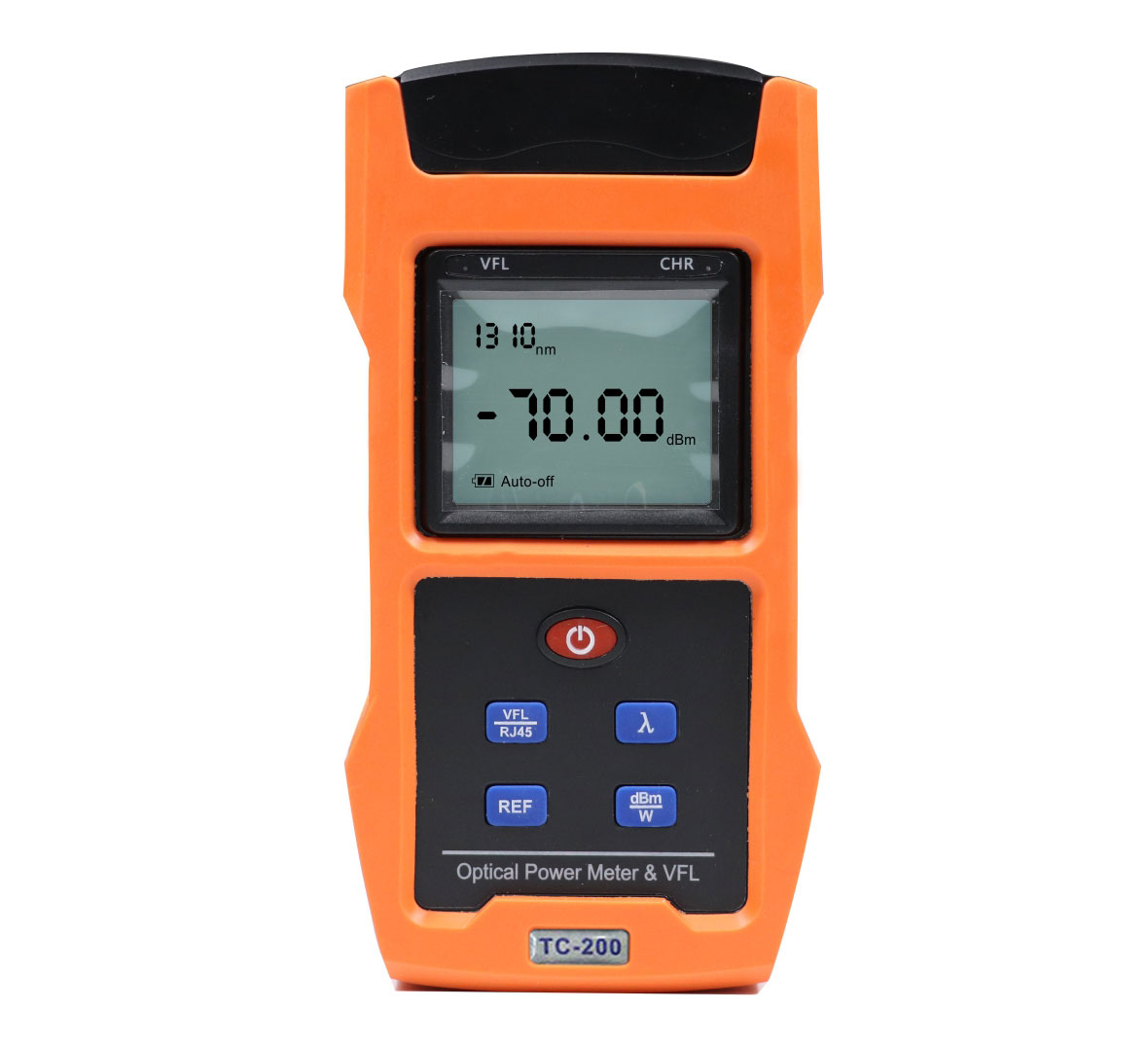

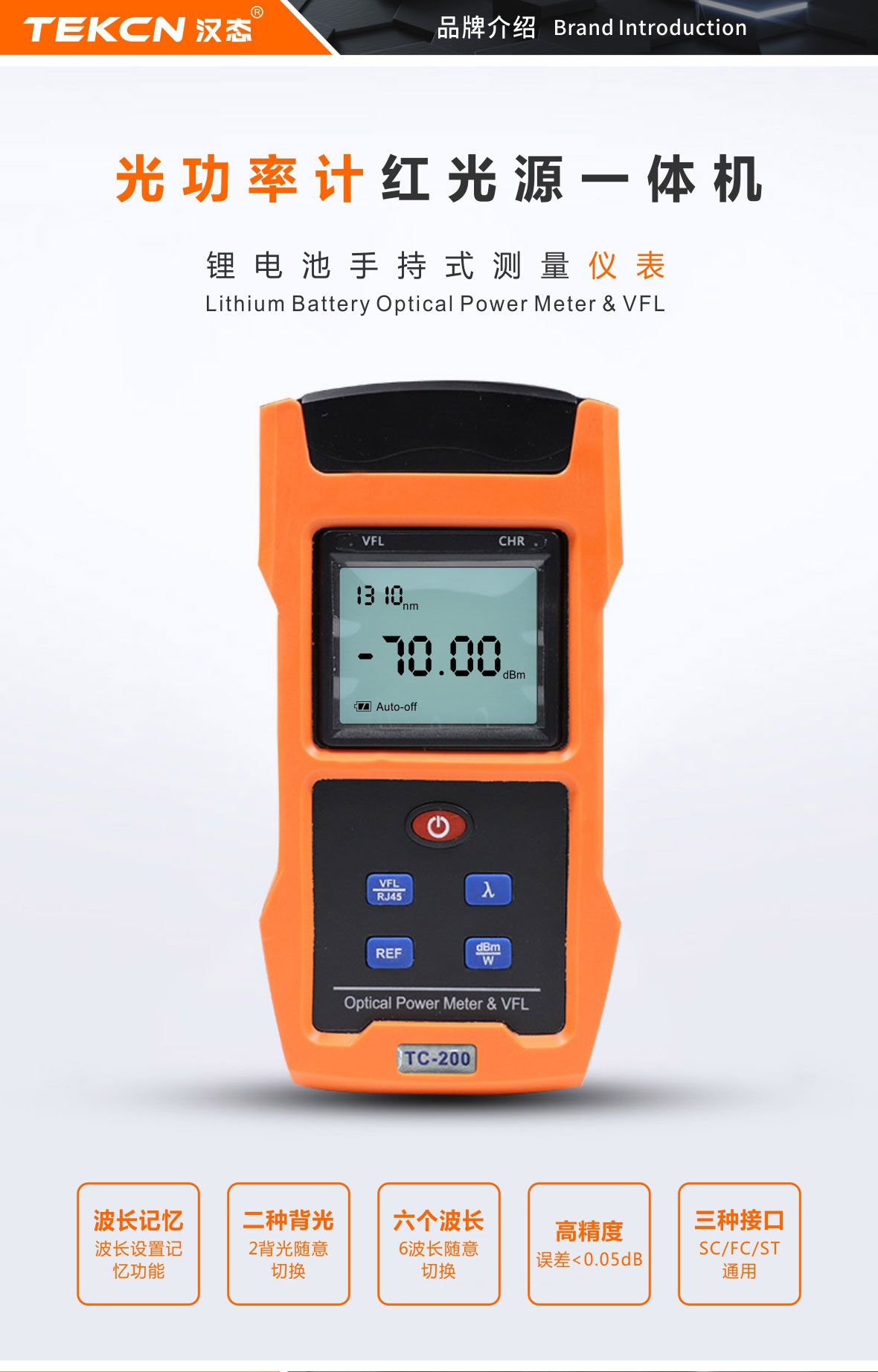

TC-200 Optical Power Meter & VFL

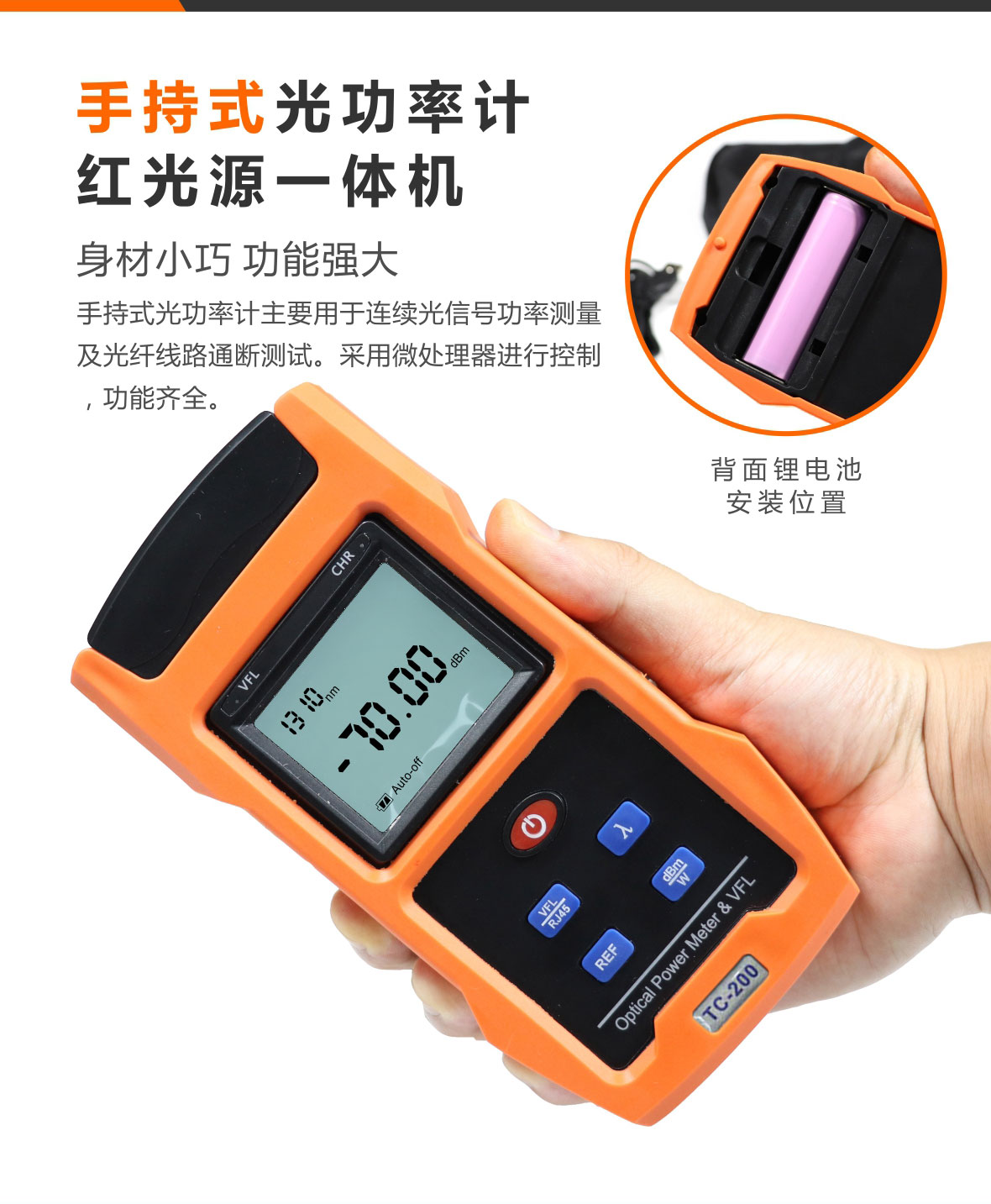

The TC-200 Optical Power Meter & VFL is a handheld device designed for continuous optical signal power measurement and fiber optic circuit fault detection. It features a compact design, high precision, and user-friendly operation.
Save to Favorites
Overview

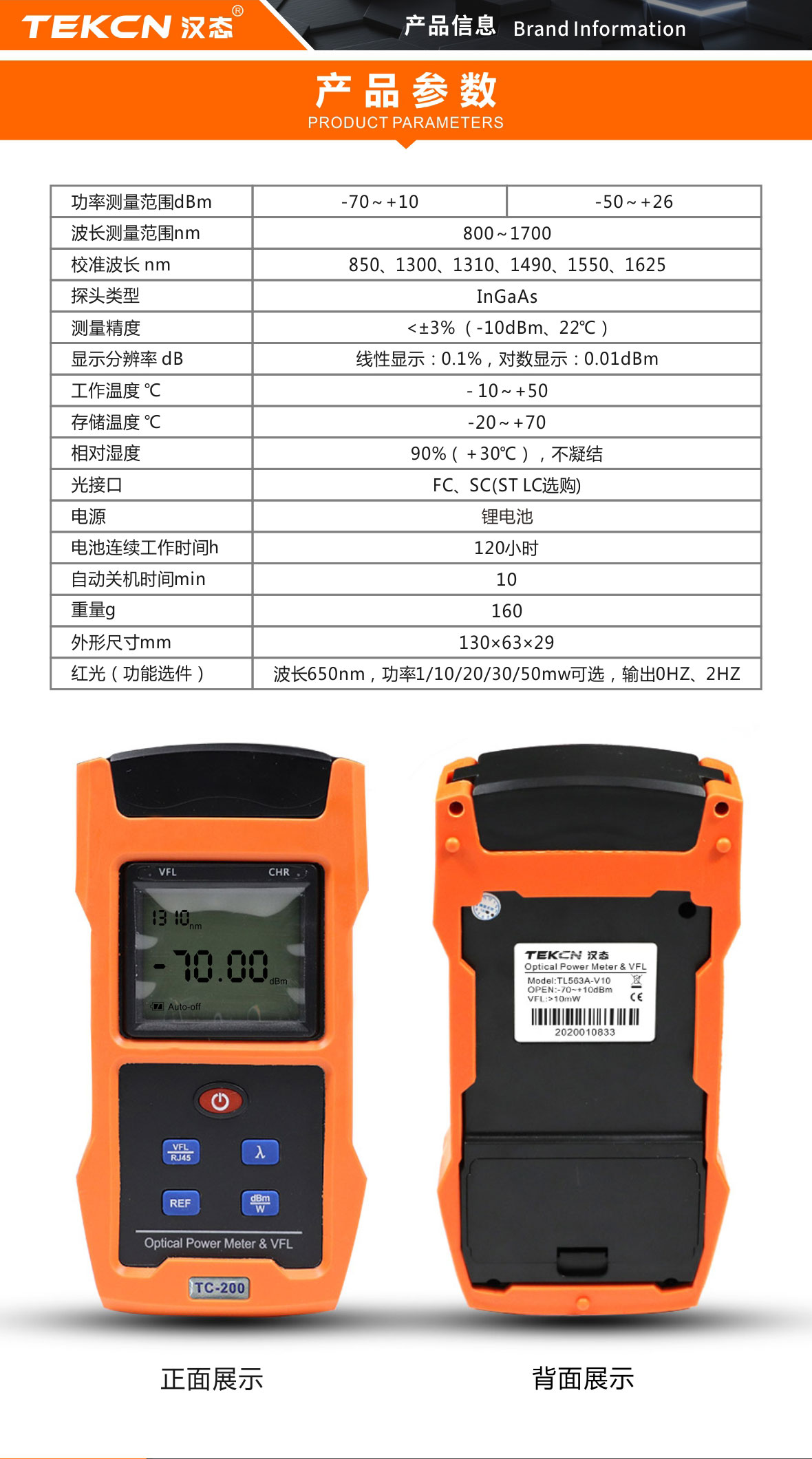

Specifications
| Parameter | Value |
|---|---|
| Power Measurement Range(dBm) | -70~+10 |
| Wavelength Measurement Range(nm) | 800~1700 |
| Calibration Wavelength(nm) | 850,1300,1310,1490,1550,1625 |
| Detector Type | InGaAs |
| Measurement Accuracy | ±3% (-10dBm,22°C) |
| Display Resolution(dB) | Linear display:0.1%,Relative display:0.01dBm |
| Operating Temperature(°C) | -10~+50 |
| Storage Temperature(°C) | -20~+70 |
| Relative Humidity | 90% (+30°C),Non-condensing |

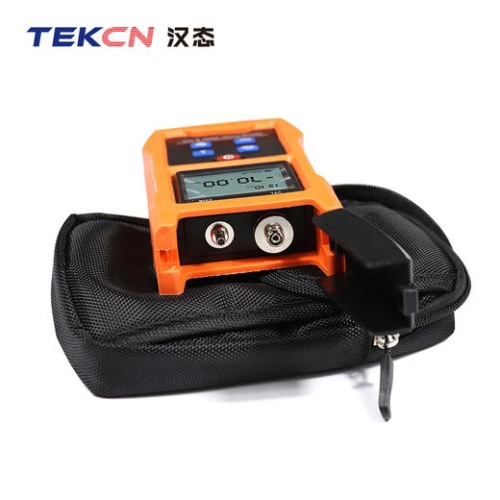

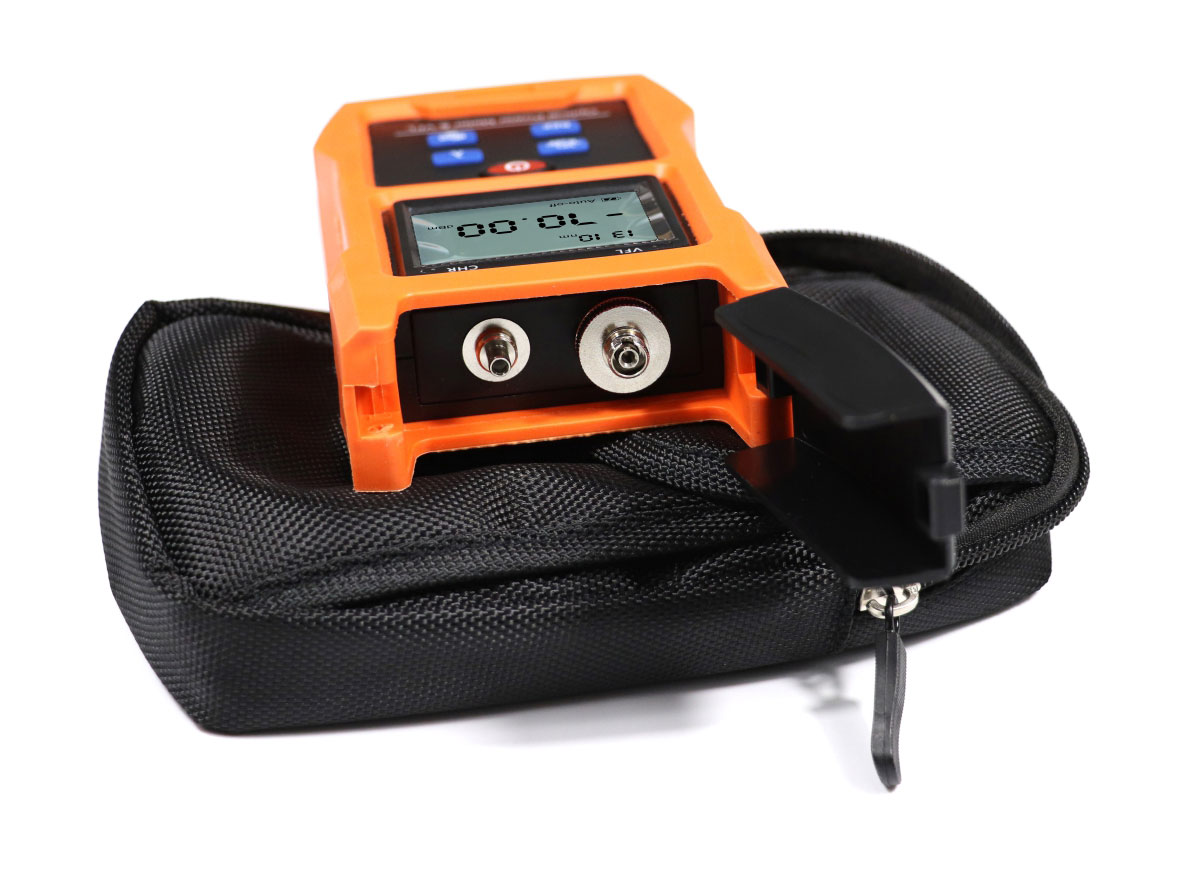

| Optical Interface | FC,SC(ST LC optional) |
| Power Supply | Lithium battery |
| Battery Continuous Working Time(h) | 120 |
| Auto Shutdown Time(min) | 10 |
| Weight(g) | 160 |
| Dimensions(mm) | 130×63×29 |
| Red Light(Function Option) | Wavelength 650nm,Power 1/10/20/30/50mW optional,Output 0HZ,2HZ |
