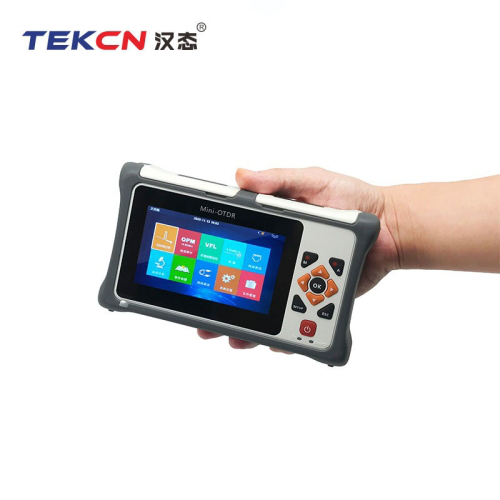

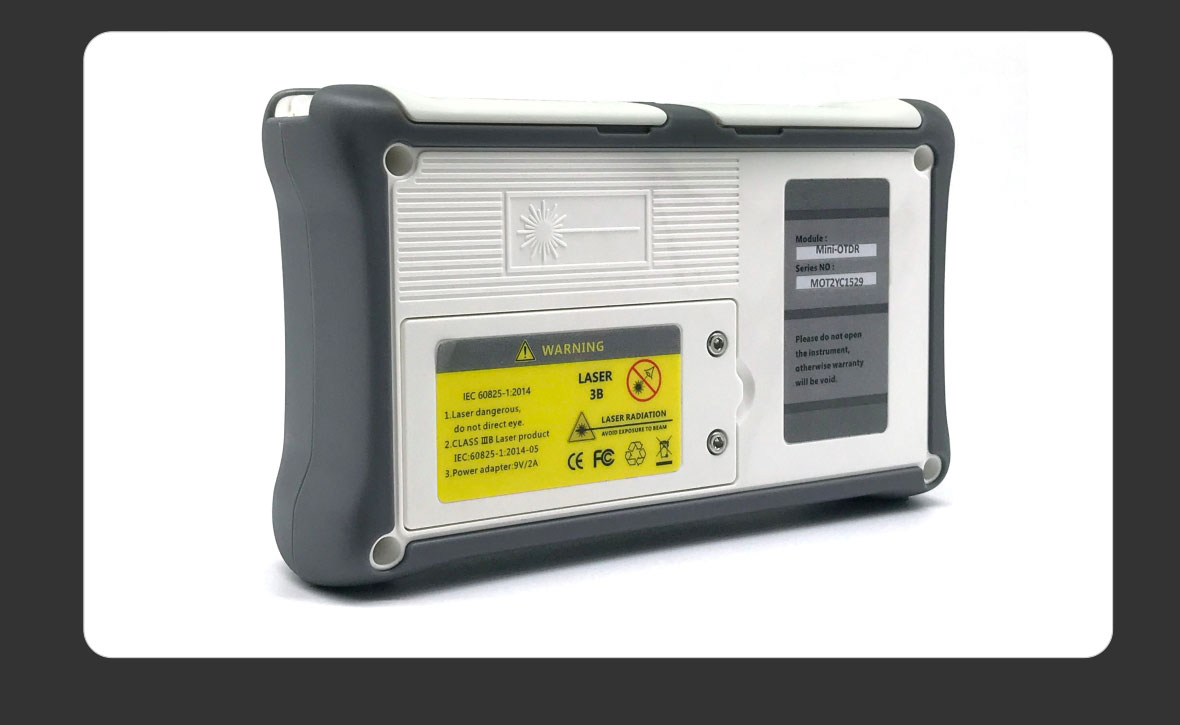

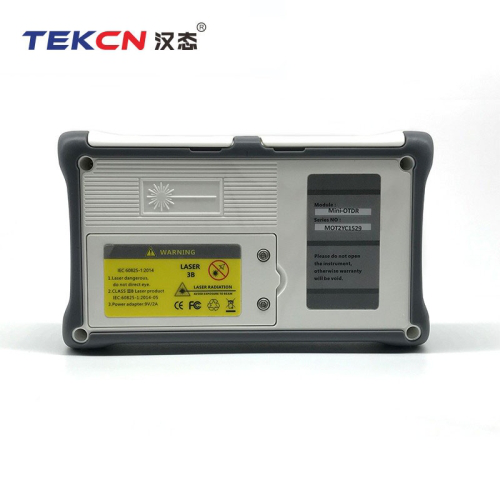

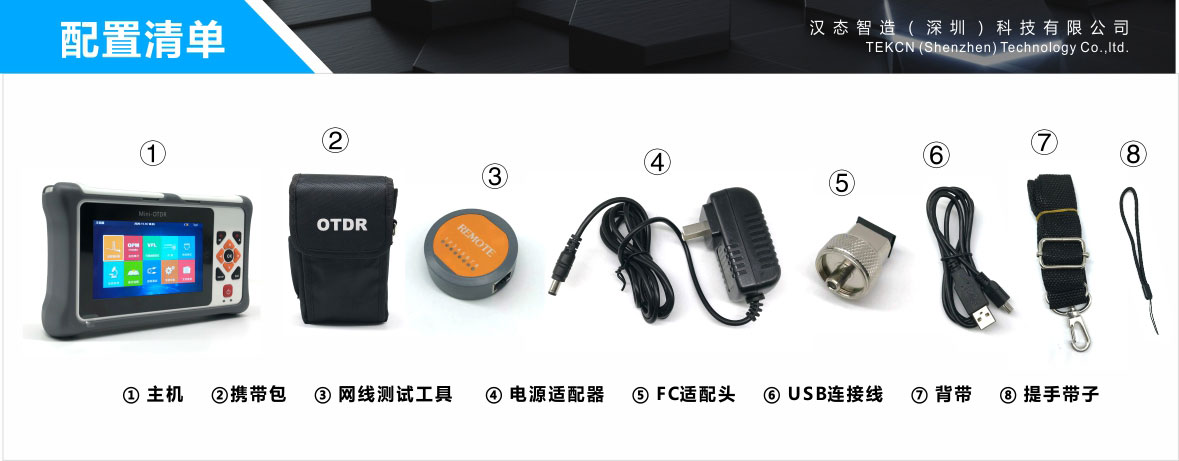

Mini-OTDR

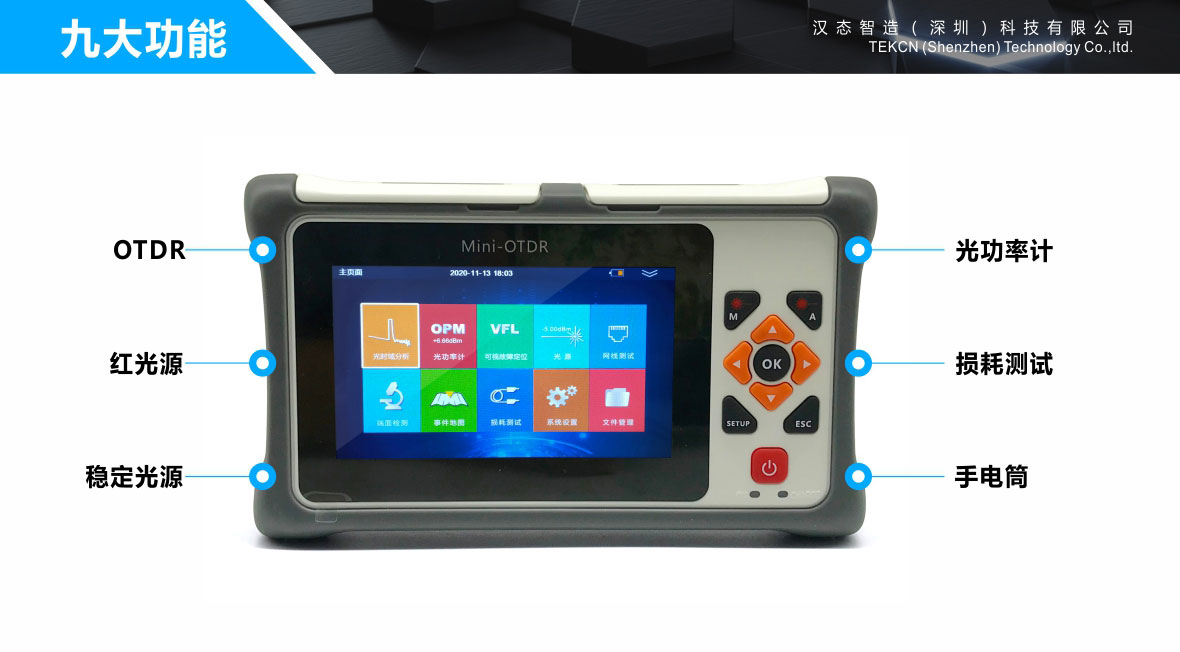

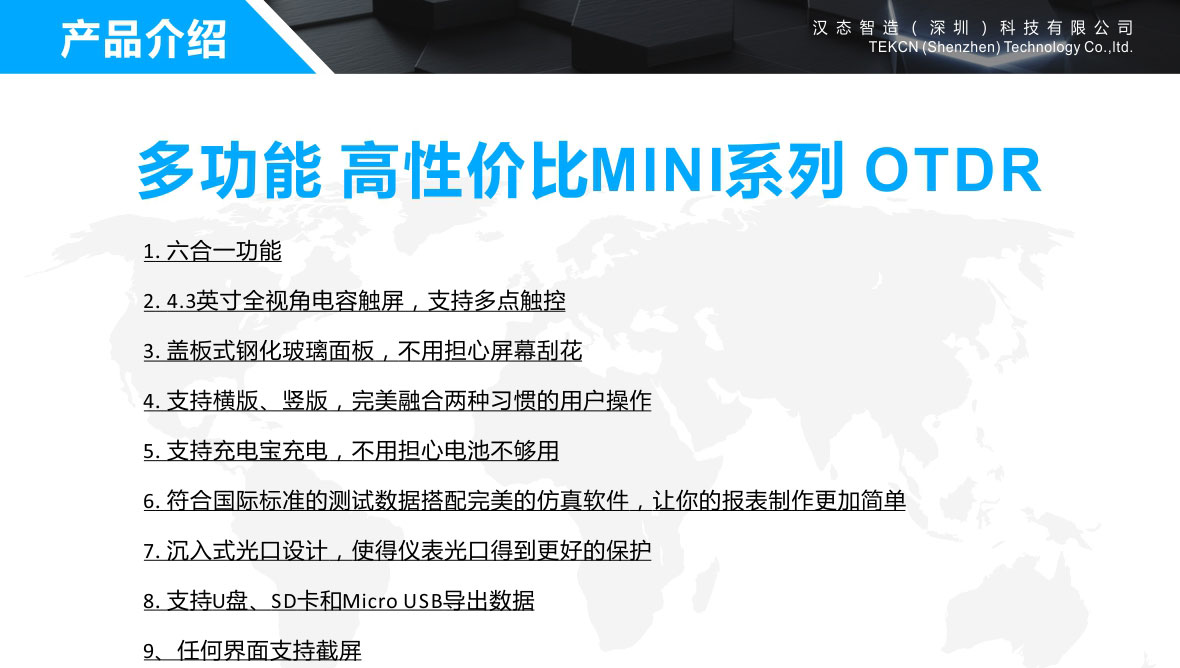

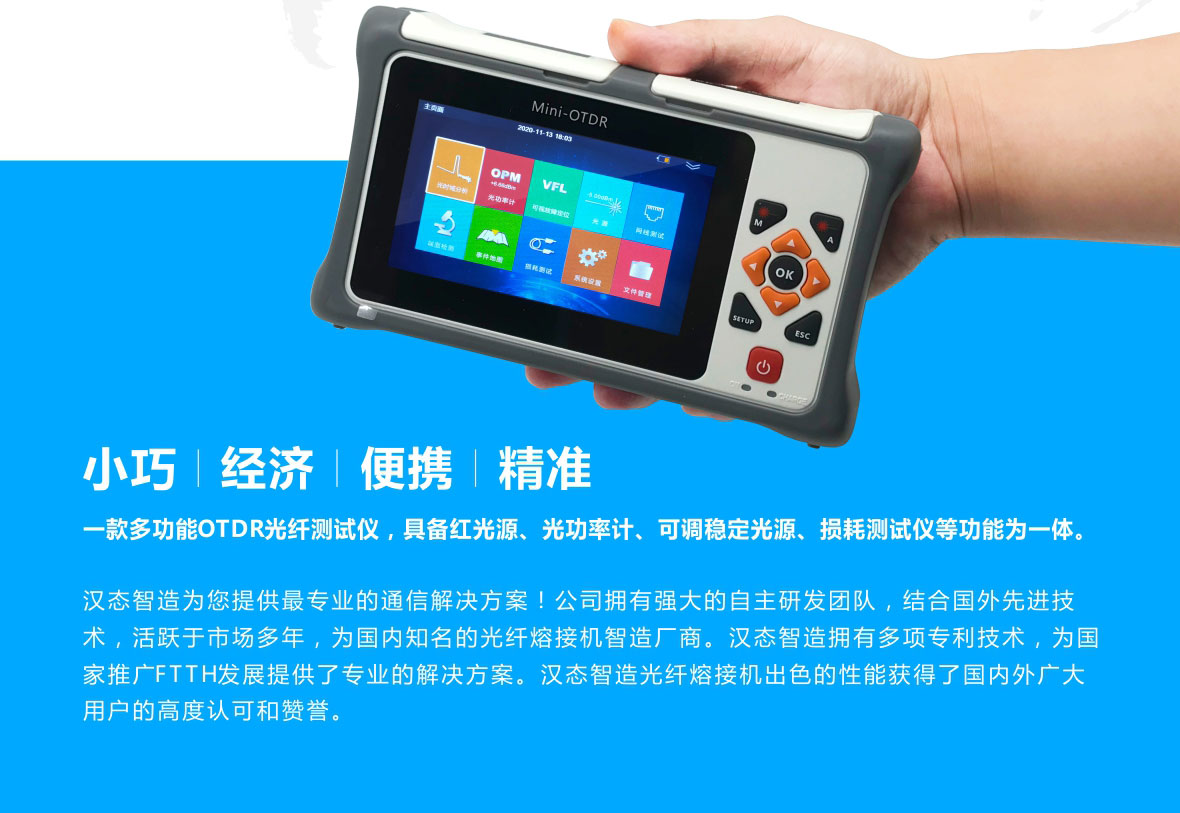

A compact and multifunctional optical time domain reflectometer (OTDR) designed for fiber optic testing, featuring red light source, optical power meter, adjustable stable light source, and fault testing capabilities.
Save to Favorites
Overview
Specifications

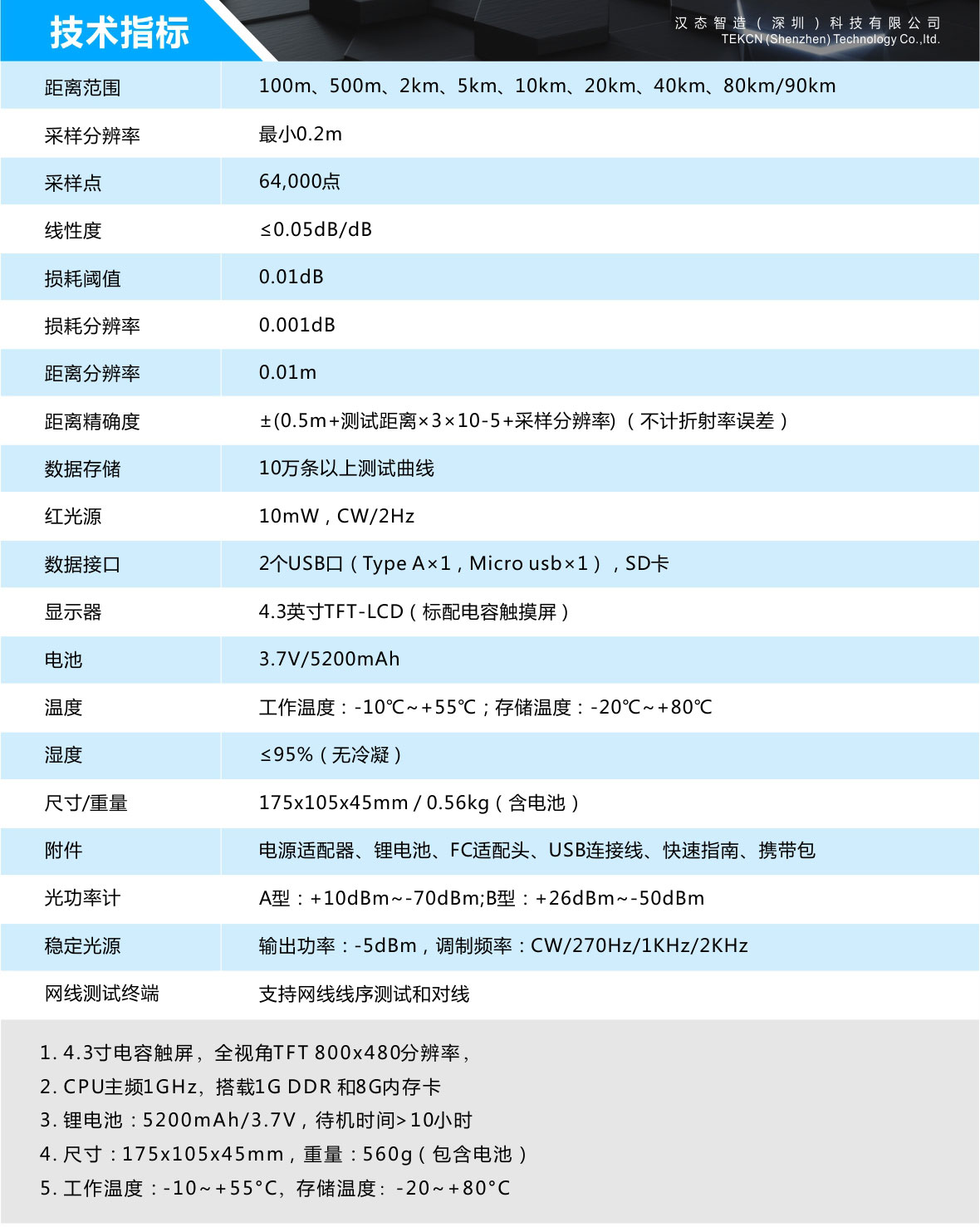

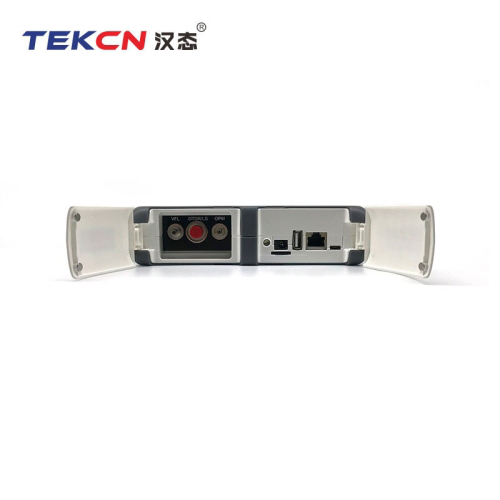

| Parameter | Value |
|---|---|
| Distance Range | 100m,500m,2km,5km,10km,20km,40km,80km,90km |
| Sampling Resolution | ≥0.2m |
| Sampling Points | 64000 points |
| Linearity | ≤0.05dB/dB |
| Loss Threshold | 0.01dB |
| Distance Accuracy | ±(0.5m+test distance×3×10^-5×sampling resolution) |
| Red Light Source | 10mW,CW/2Hz |
| Display | 4.3-inch TFT-LCD (capacitive touch screen) |
| Battery | 3.7V/5200mAh |
| Humidity | ≤95%(non-condensing) |
| Dimensions/Weight | 175×105×45mm/0.56kg (including battery) |
| Stable Light Source | Output power:-5dBm,adjustable frequency:CW/270Hz/1kHz/2kHz |
| Network Test Port | Supports network cable sequence testing and fault detection |
| Screen Resolution | 800×480 |
| CPU Frequency | 1GHz |
| Memory | 1GB DDR |
| Battery Capacity | 5200mAh/3.7V |
| Battery Life | ≥10 hours |
| Operating Temperature | -10°C~+55°C |
| Storage Temperature | -20°C~+80°C |
| Humidity Range | ≤95% (non-condensing) |
