光纤端面检测仪

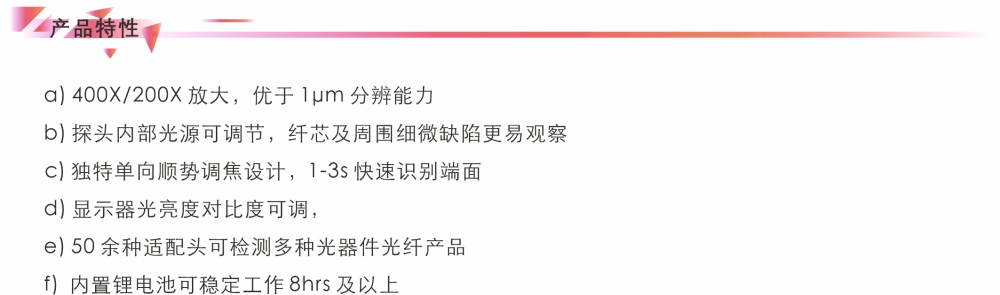

This fiber end-face inspection device offers high magnification and resolution, making it ideal for observing fiber cores and surrounding micro-defects. It is equipped with adjustable internal light sources and a unique single-direction focusing design for quick identification.
Save to Favorites
Overview

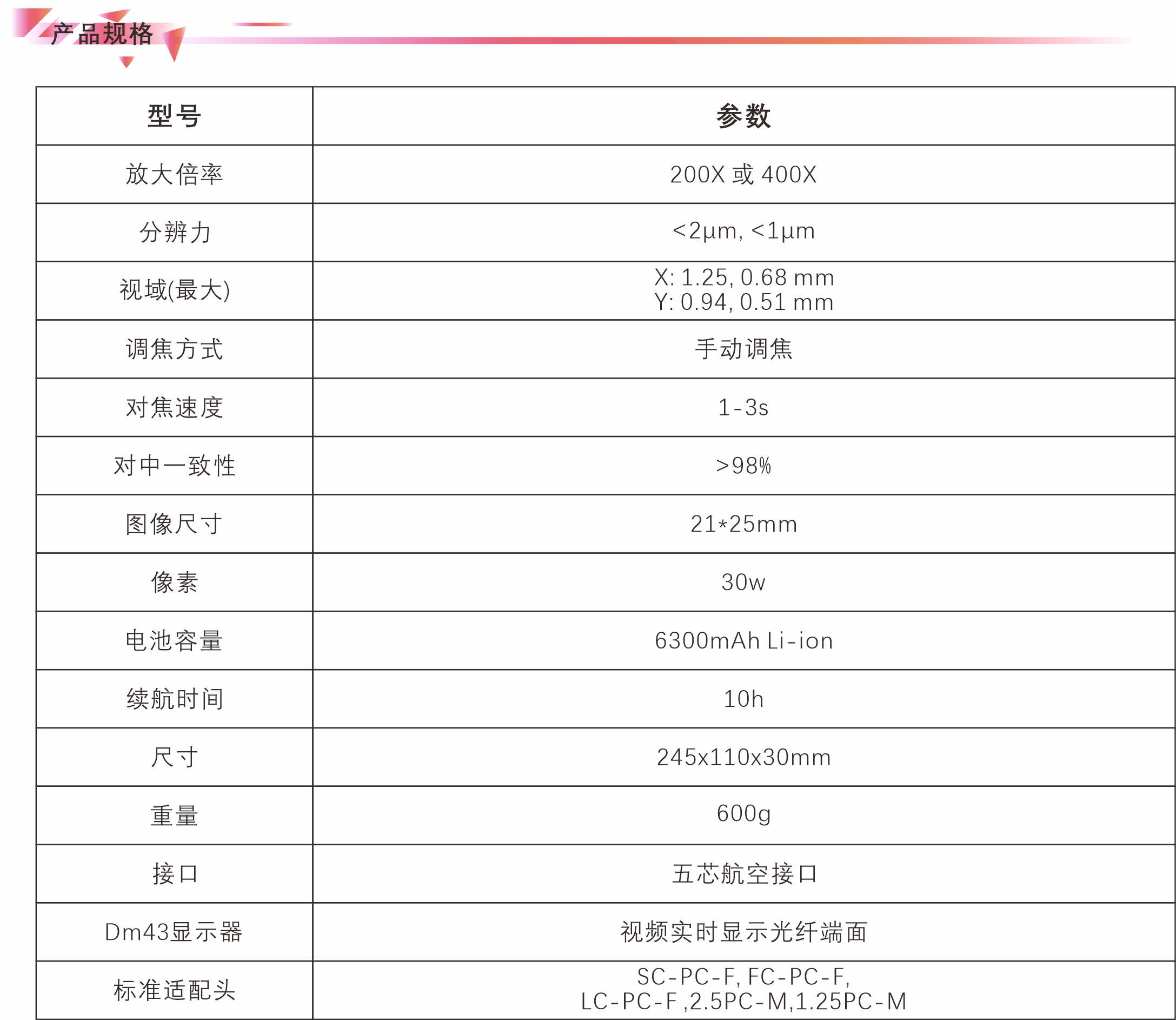

Specifications
| Parameter | Value |
|---|---|
| Magnification | 200X or 400X |
| Resolution | <2μm, <1μm |
| Field of View (Max) | X: 1.25, 0.68mm; Y: 0.94, 0.51mm |
| Focusing Method | Manual focusing |
| Focusing Speed | 1-3s |
| Centering Consistency | >98% |
| Image Size | 21×25mm |
| Pixels | 30W |
| Battery Capacity | 6300mAh Li-ion |
| Battery Life | 10h |
| Dimensions | 245×110×30mm |
| Weight | 600g |
| Interface | Five-core aviation interface |
| Dm43 Display | Real-time video display of fiber end-face |
| Standard Adapter Heads | SC-PC-F, FC-PC-F, LC-PC-F, 2.5PC-M, 1.25PC-M |
