光纤端面检测仪
This fiber end-face detector is designed for precise measurement and inspection of fiber optic connectors, ensuring high accuracy and reliability.
Save to Favorites
Overview
Specifications

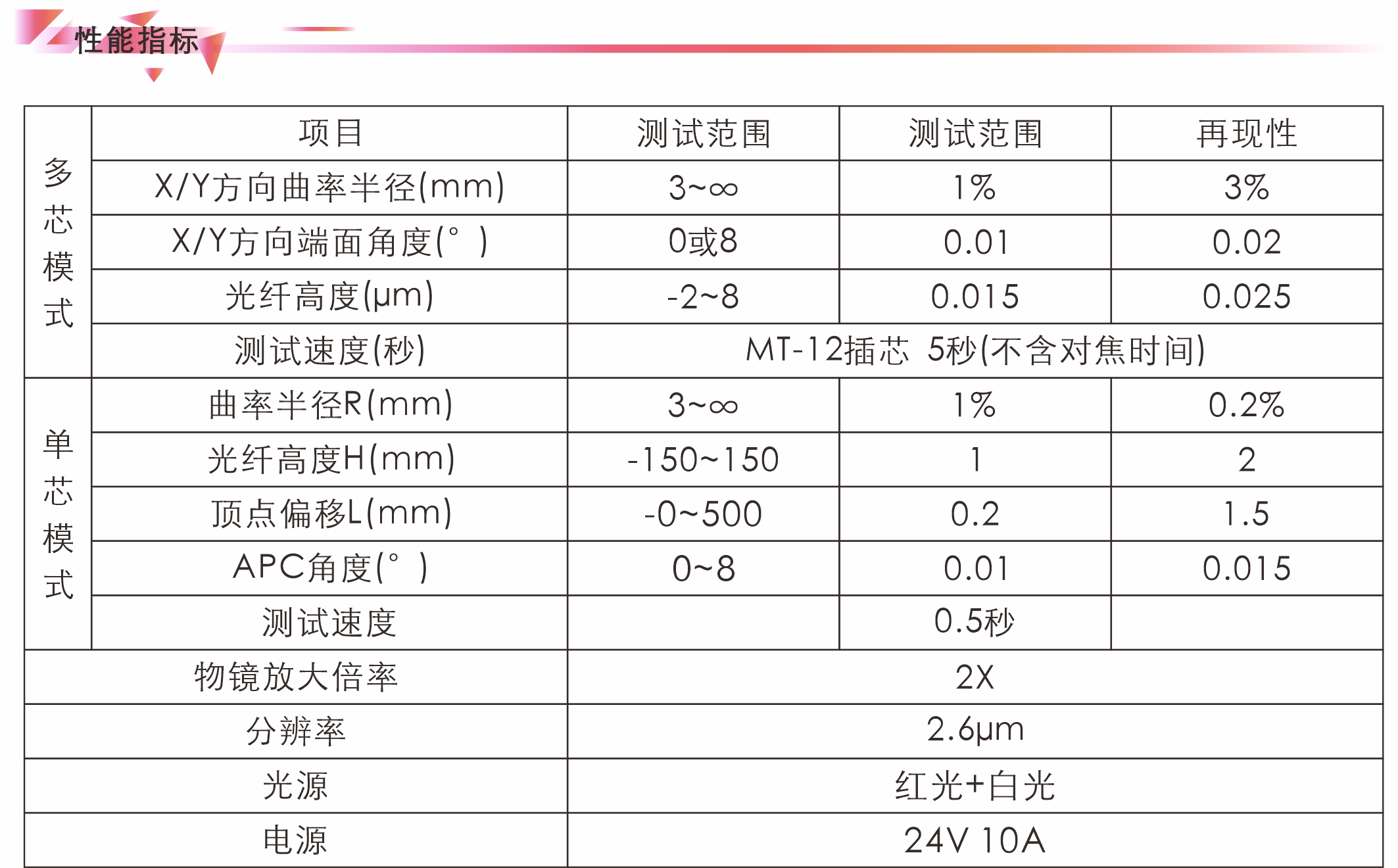

| Parameter | Value |
|---|---|
| X/Y Direction Curvature Radius(mm) | 3~∞ |
| Fiber Height(μm) | -2~8 |
| Testing Speed(s) | MT-12插芯5秒(不含对焦时间) |
| Curvature Radius R(mm) | 3~∞ |
| Fiber Height H(mm) | -150~150 |
| Vertex Offset L(mm) | -0~500 |
| APC Angle(°) | 0~8 |
| Testing Speed | 0.5秒 |
| Objective Magnification | 2X |
| Resolution | 2.6μm |
| Light Source | 红光+白光 |
| Power Supply | 24V10A |
Applications
Key Features
Datasheet
