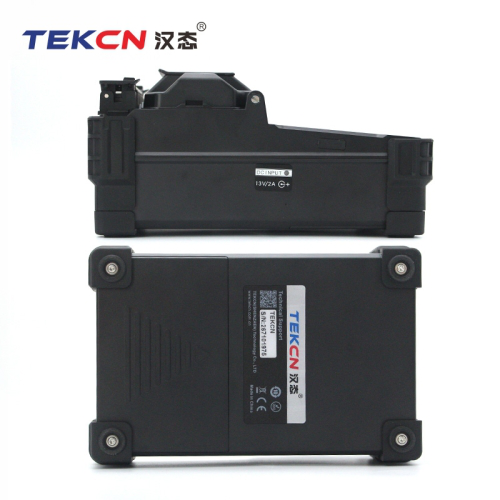

HanTai Zhi Automatic Fusion Splicer
HanTai Zhi is an advanced automatic fusion splicer designed for efficient and precise fiber optic splicing. It features a compact design, intelligent operation, and high performance, making it ideal for various fiber optic applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions and Weight | 208x137x101.4mm, 1.1kg (including battery 1.25kg) |
| Alignment Method | High precision core alignment system |
| Fusion Method | Single core |
| Fusion Loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, BI: <0.02dB |
| Applicable Fiber Types | SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657) |
| Applicable Fiber Diameter | Cladding diameter: 80-150μm, Coating diameter: 100-1000μm |
| Cutting Length | Coating diameter ≤250μm: 8-16mm; Coating diameter ≥250μm: 16mm |
| Fusion Mode | 1000 sets of preset storage parameters, supports custom settings and parameters |
| Fusion Time | 7s |
| Heating Time | 15s |
| Applicable Heat Shrink Tube Length | 10-60mm |
| Image Record | 1000 images storage capacity (automatic cycle storage) |
| Average Fusion Loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, BI: <0.02dB |
| Working Environment | Altitude ≤5000m, relative humidity ≤95%, temperature -20°C~50°C, maximum wind speed 15m/s |
| Storage Conditions | Relative humidity ≤95%, temperature -40°C~80°C (battery -20°C~40°C) |
| Display System | Dual-core processor, 4.3-inch high-resolution display |
| Magnification System | X/Y dual-axis magnification 130 times; X/Y single-axis magnification 300 times maximum |
| Data Interface | MicroSD card and USB output |
| Data Interface | supports software upgrades and data export |
| Electrode Life | 5000 arcs |
| Power Supply Voltage | AC100-240V, 50/60Hz |
| Power Supply Battery | 2600mAh lithium battery, supports continuous splicing and heating for more than 150 times |
