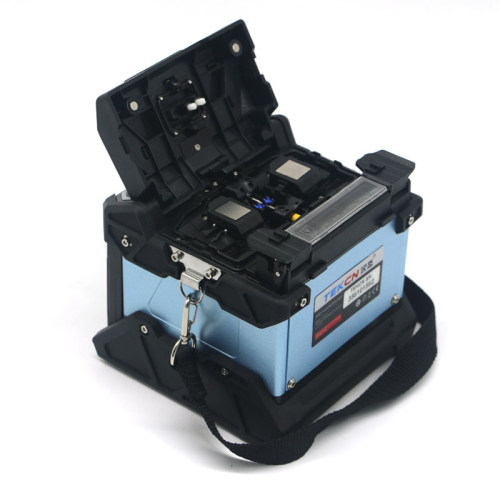

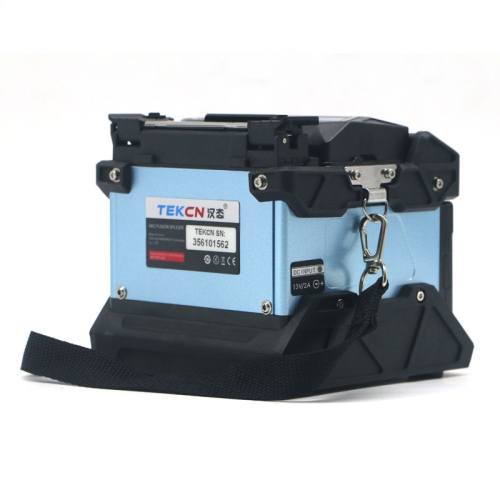

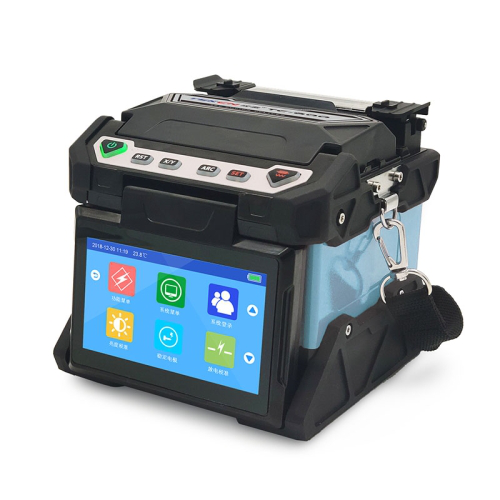

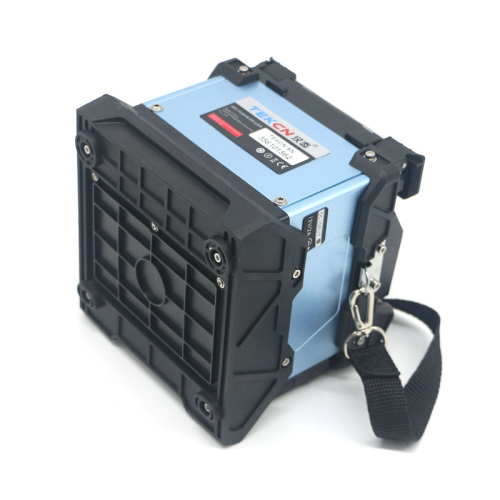

TC-600 Fusion Splicer

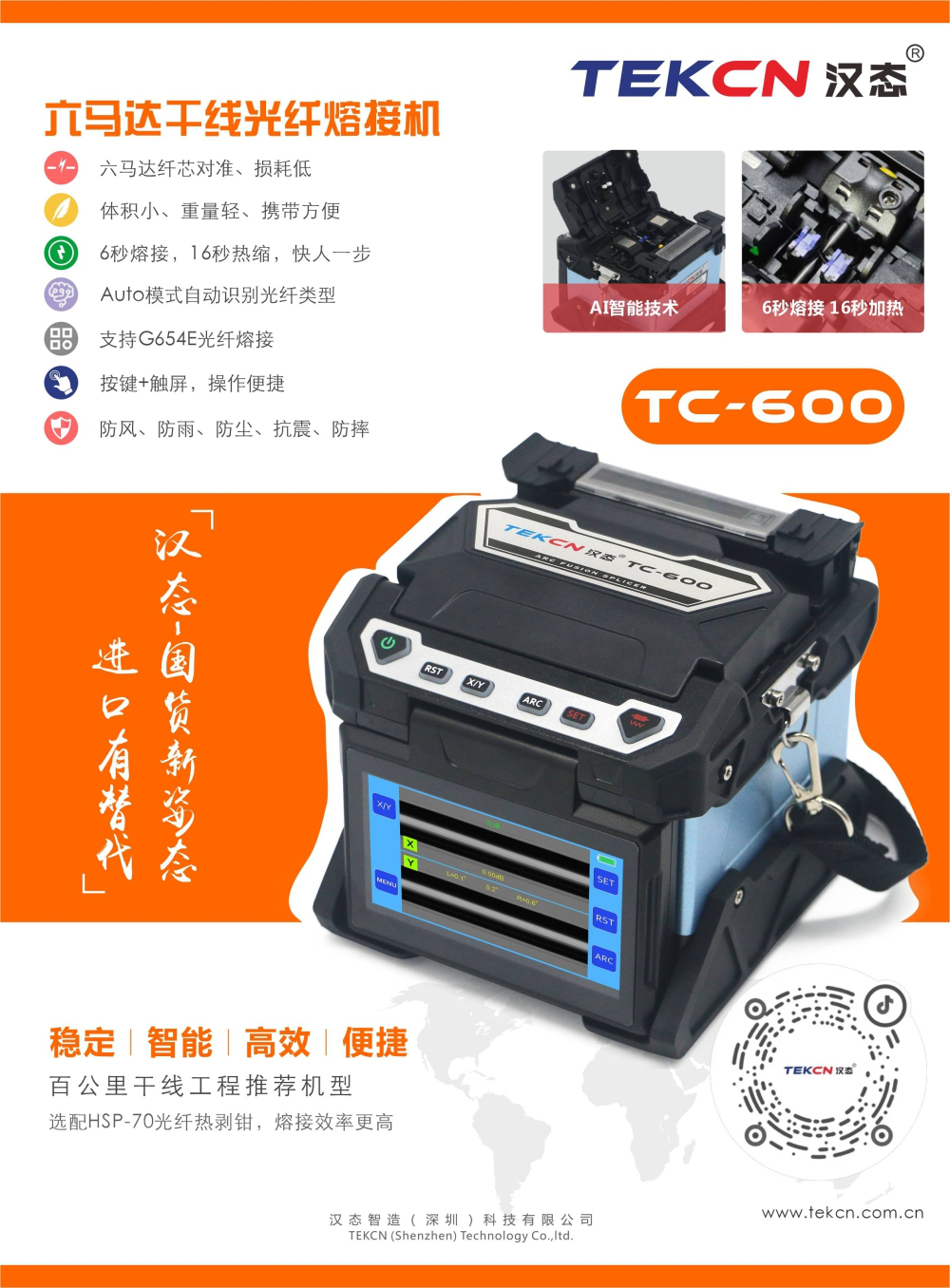

The TC-600 Fusion Splicer is a compact, lightweight, and portable device designed for efficient fiber optic splicing. It features advanced AI technology for automatic fiber type recognition and supports G654E fiber splicing. The device is equipped with a user-friendly interface combining buttons and touch screen functionality, ensuring ease of operation.
Save to Favorites
Overview

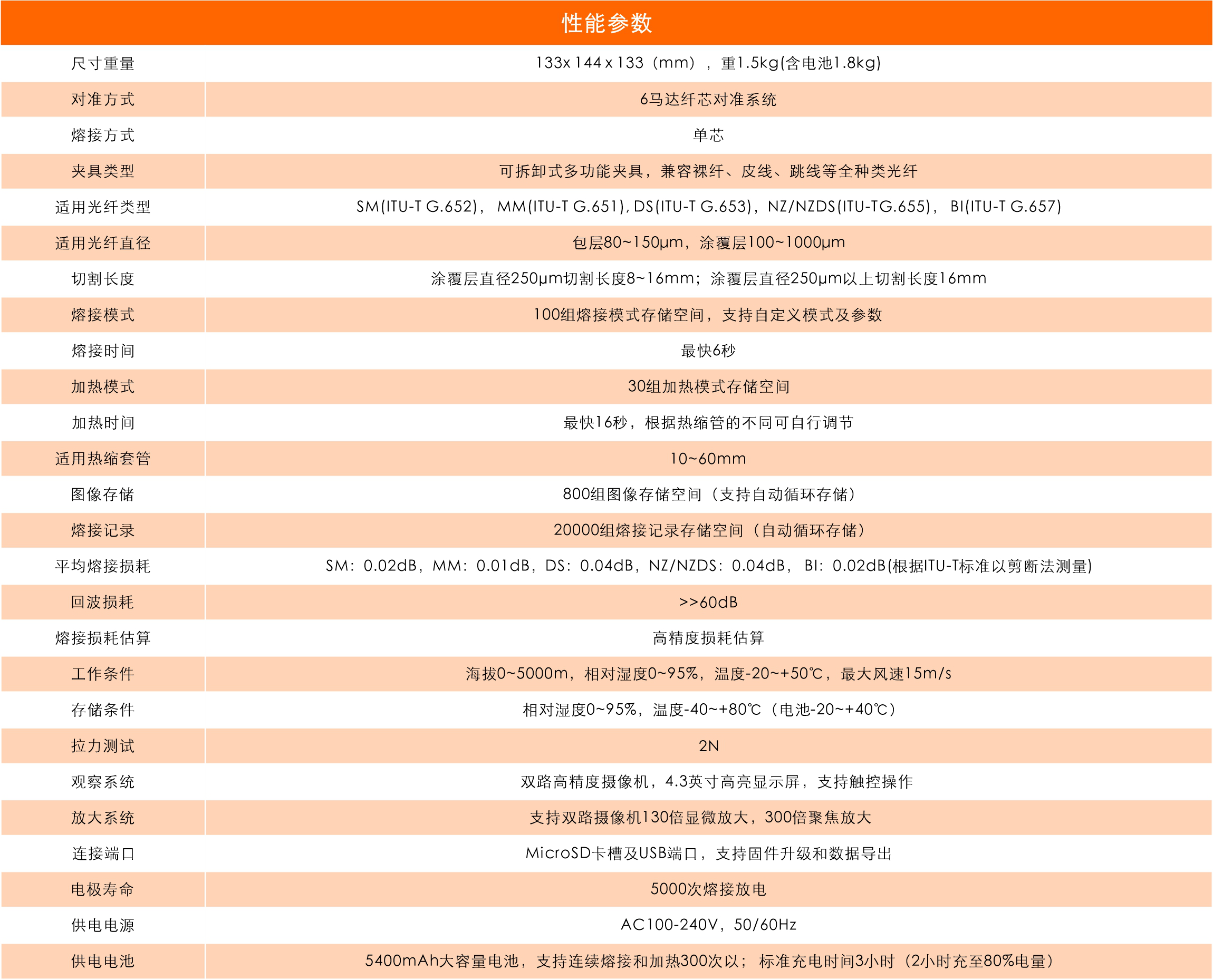

Specifications
| Parameter | Value |
|---|---|
| Dimensions and Weight | 133x144x133mm, 1.5kg (including battery) |
| Alignment Method | 6-motor core alignment system |
| Operation Mode | Manual |
| Fixture Type | Movable multifunctional fixture |
| Fixture Type | suitable for bare fibers |
| Fixture Type | leather cables |
| Fixture Type | and other types of optical fibers |
| Applicable Fiber Types | SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZ/NZDS (ITU-T G.655), B (ITU-T G.657) |
| Applicable Fiber Diameter | Coating diameter 250μm-1500μm, cladding diameter 100-1000μm |
| Cutting Length | Coating diameter 250μm: 8-16mm; Coating diameter 250μm and above: cutting length ≥16mm |
| Path Mode | 100 groups of splicing modes for customization, supports user-defined modes |
| Splicing Time | 6s |
| Heating Time | 30s (adjustable based on fiber type) |
| Minimum Heating Time | 16s |
| Applicable Heat Shrink Tubes | 10-60mm |
| Image Storage | 800 images (manual storage) |
| Splicing Records | 20000 records (automatic storage) |
| Average Splicing Loss | SM: ≤0.02dB, MM: ≤0.01dB, DS: ≤0.04dB, NZ/NZDS: ≤0.04dB, B: ≤0.02dB |
| Return Loss | ≥60dB |
| Splicing Mode Algorithm | High precision intelligent algorithm |
| Working Conditions | Altitude: 0-5000m, relative humidity: 0-95%, temperature: -20°C to +50°C, maximum wind speed: 15m/s |
| Storage Conditions | Relative humidity: 0-95%, temperature: -40°C to +80°C (without battery: -40°C to +40°C) |
| Tensile Test | 2N |
| Observation Display | Double CMOS camera, 5-inch high-resolution display, supports image adjustment |
| Magnification System | 310x magnification |
| Connectivity | MicroSD card storage |
| Connectivity | USB interface |
| Battery Capacity | 5400mAh |
| Power Supply | AC100-240V, 50/60Hz |
| Power Battery | 5400mAh lithium battery, supports continuous splicing and heating for 300 times |
