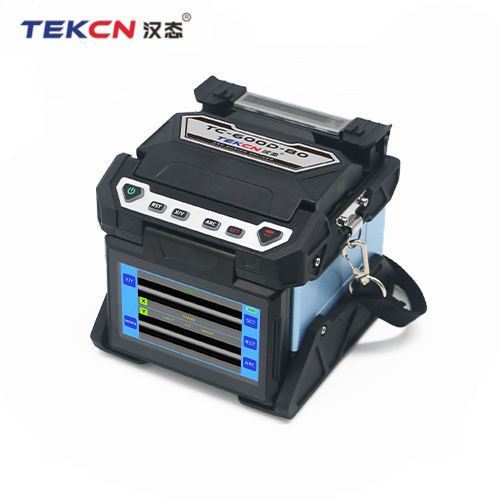

TC-600D-80

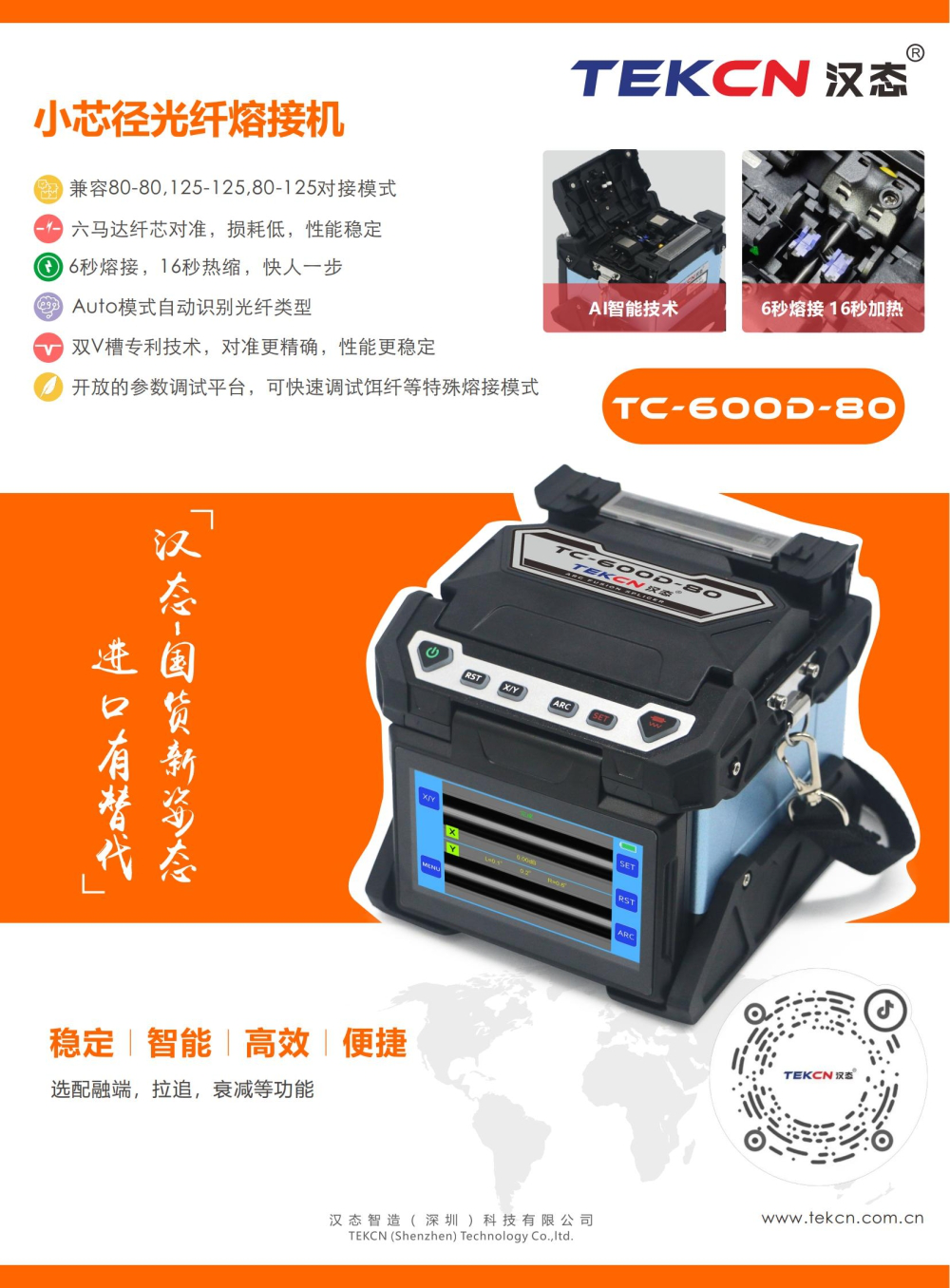

The TC-600D-80 is a small-diameter optical fiber fusion splicer designed for high precision and efficiency. It supports multiple fiber types and offers advanced features such as AI intelligent technology and dual V-groove patented technology.
Save to Favorites
Overview

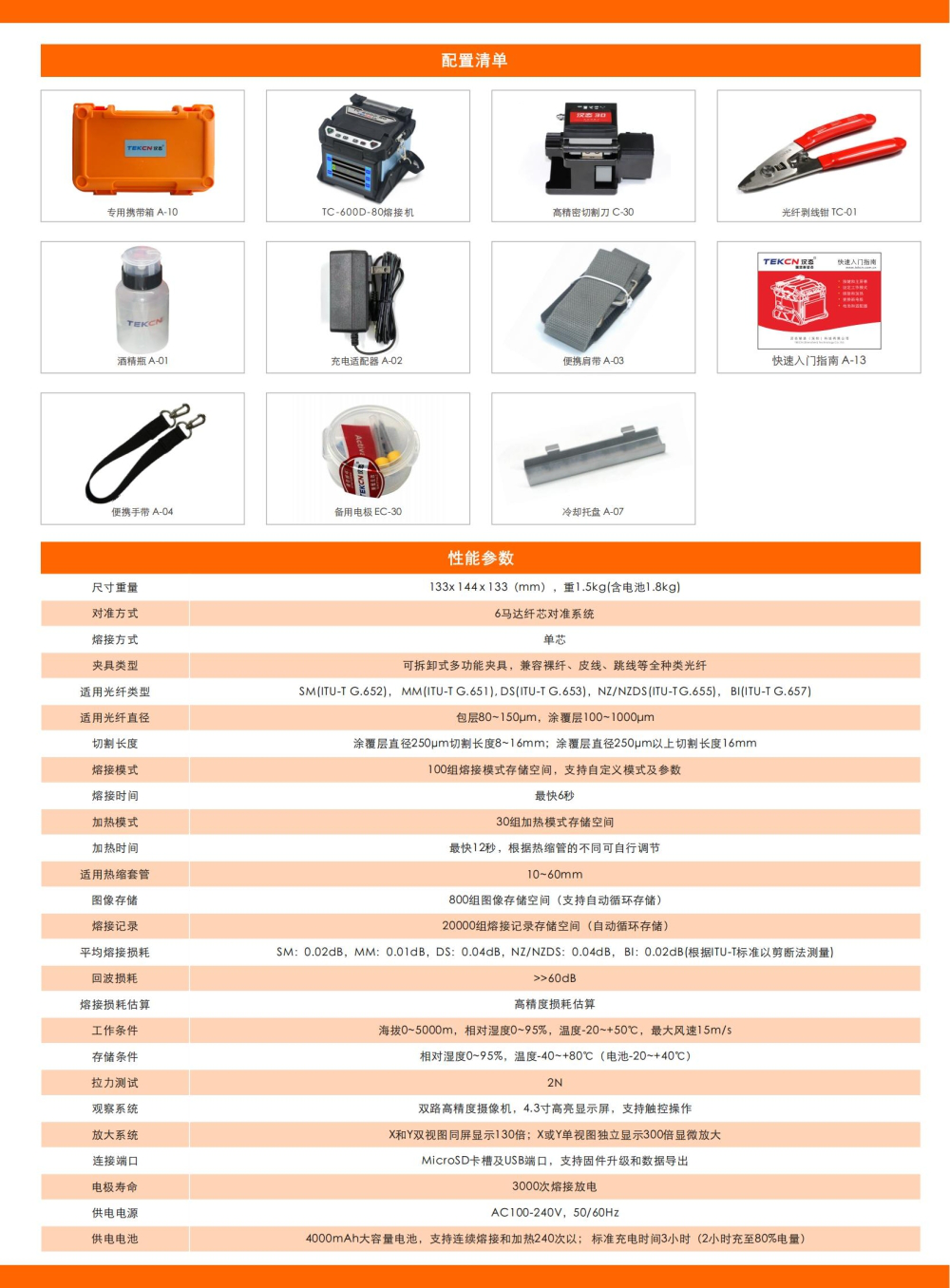

Specifications
| Parameter | Value |
|---|---|
| Dimensions and Weight | 133x144x133mm, 1.5kg (including battery 1.8kg) |
| Alignment Method | 6-motor core alignment mode |
| Splicing Method | Single fiber |
| Splicing Mode | 100 sets of splicing modes, supports special fiber splicing modes |
| Splicing Time | 6 seconds |
| Heater Power | 12V, adjustable heating power |
| Applicable Heat Shrink Tubes | 10-60mm |
| Image Storage | 800 image storage capacity (supports MicroSD card expansion) |
| Splicing Records | 20000 splicing records (supports MicroSD card expansion) |
| Average Splicing Loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/NDS: 0.04dB, BI: 0.02dB |
| Tension Test | ≥60N |
| Working Conditions | Altitude ≤5000m, relative humidity ≤95%, temperature -10°C to +50°C, wind speed ≤15m/s |
| Storage Conditions | Relative humidity ≤95%, temperature -40°C to +80°C (battery -20°C to +40°C) |
| Tensile Test | 2N |
| Dual Display Screen | Dual display screen design, 4.3-inch high-resolution display |
| Battery Power | 4000mAh large-capacity battery, supports splicing and heating for 240 cycles (charging time 3h, battery life ≥80%) |
