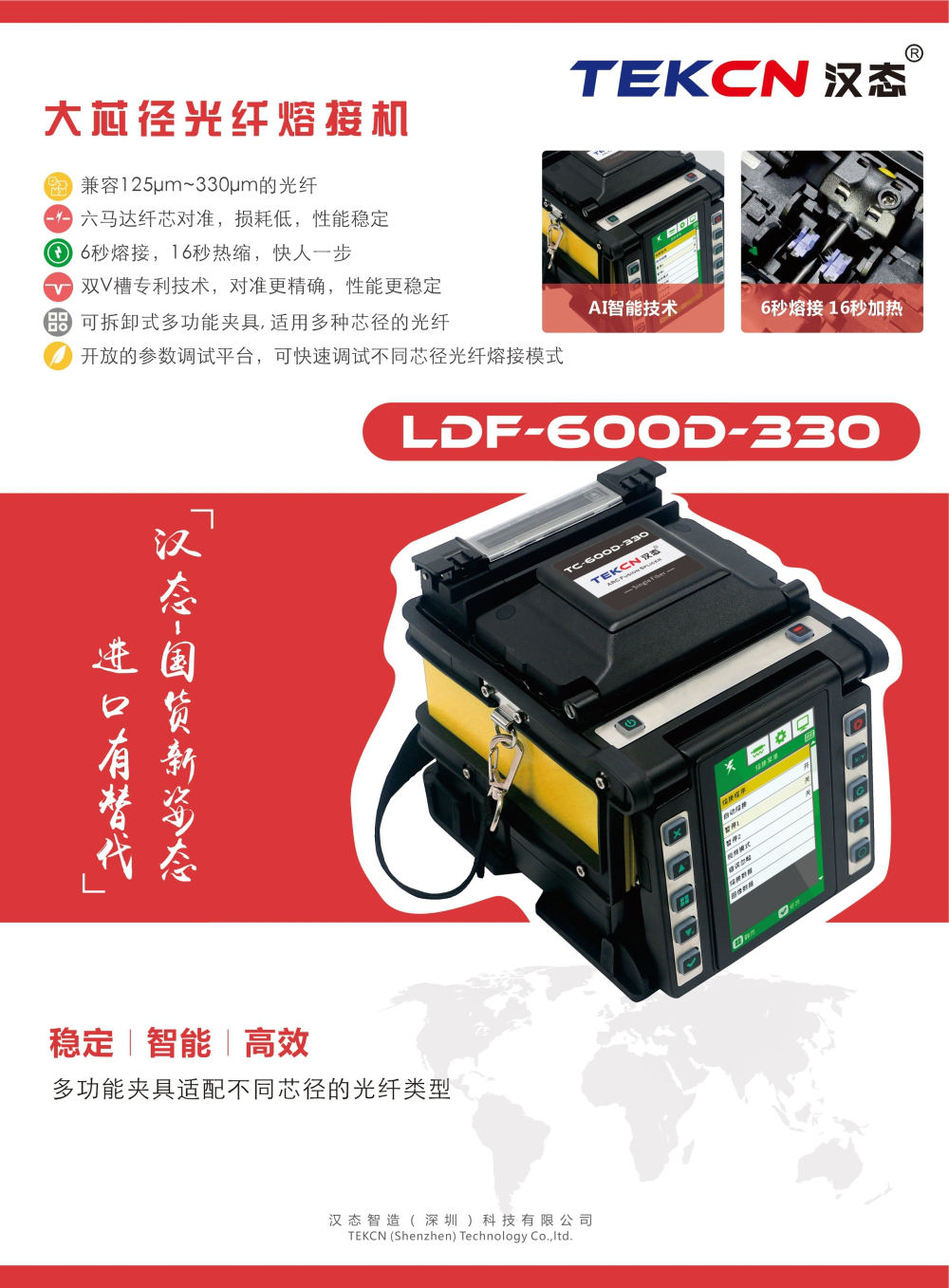

LDF-600D-330 Fusion Splicer
The LDF-600D-330 fusion splicer is a high-performance device designed for splicing large-diameter optical fibers. It features advanced AI technology, fast splicing and heating capabilities, and compatibility with various fiber types and diameters.
Save to Favorites
Overview
Specifications

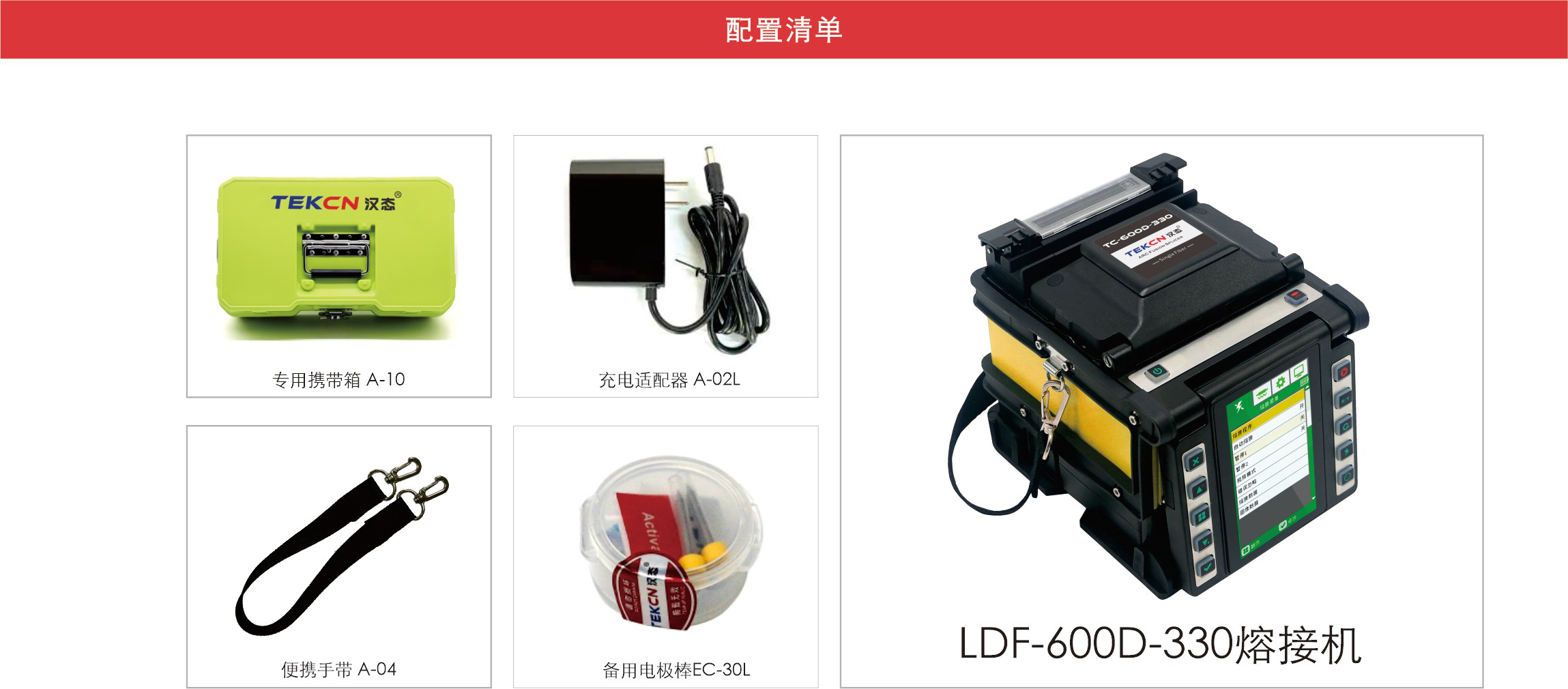

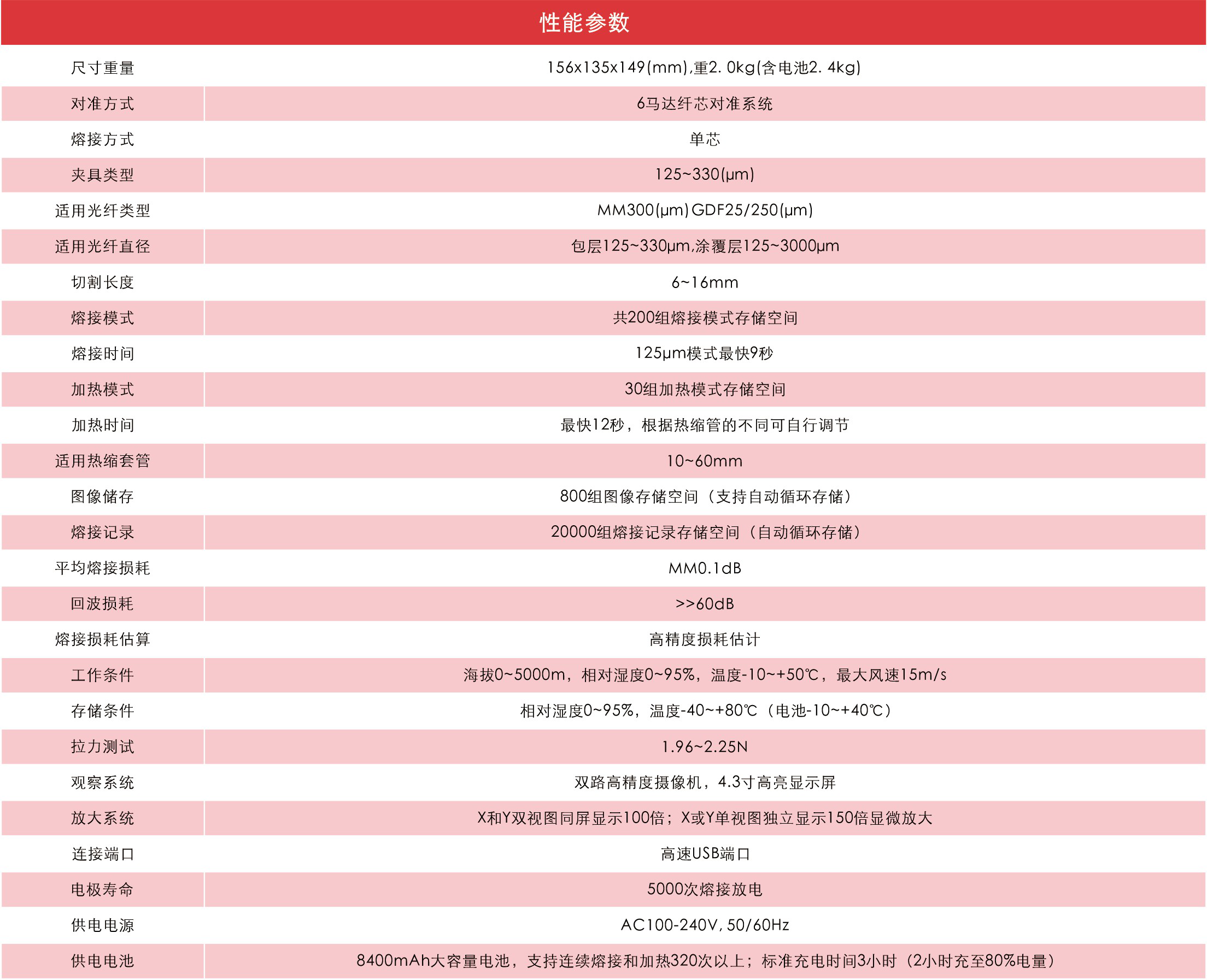

| Parameter | Value |
|---|---|
| Dimensions and Weight | 156x135x149(mm), Weight: 2.0kg (including battery: 2.4kg) |
| Alignment Method | 6-motor core alignment system |
| Operation Mode | Single |
| Fixture Type | 125-330(μm) |
| Applicable Fiber Type | MM300(μm), GDF25/250(μm) |
| Applicable Fiber Diameter | 125-330(μm), Coating Diameter: 125-3000(μm) |
| Cutting Length | 6-16mm |
| Splicing Mode | 200 adjustable splicing modes |
| Splicing Time | 125μm fiber: ≤6s |
| Heating Mode | 30 adjustable heating modes |
| Heating Time | Fastest: 12s, adjustable |
| Applicable Heat Shrink Tubes | 10-60mm |
| Image Storage | 800 images (supports automatic storage) |
| Splicing Records | 20000 splicing records (automatic storage) |
| Average Splicing Loss | MM: 0.1dB |
| Return Loss | ≥60dB |
| Splicing Precision Calculation | High-precision algorithm |
| Working Conditions | Altitude ≤5000m, Relative Humidity ≤95%, Temperature -10~50°C, Max Wind Speed ≤15m/s |
| Storage Conditions | Relative Humidity ≤95%, Temperature -40~80°C (battery: -10~40°C) |
| Tensile Test | 1.96-2.25N |
| Magnification System | X/Y dual-view magnification: 100x; X/Y single-view magnification: 50x |
| Connection Port | High-speed USB 2.0 |
| Battery Capacity | 5000mAh |
| Power Supply | AC100-240V, 50/60Hz |
| Battery Supply | 8400mAh lithium battery, supports continuous splicing and heating for 320 times; charging time: 3 hours (80% charge in 2 hours) |
