Filmetrics Profilm3D is a high-precision optical profiler designed for surface measurement and analysis, offering advanced features such as PSI and WLI technologies for 3D surface profiling and color imaging.

Specification Snapshot
Camera resolution
2592×1944 (5MP)
PSI Measurement Thickness Range
0-3μm
Machine Dimensions

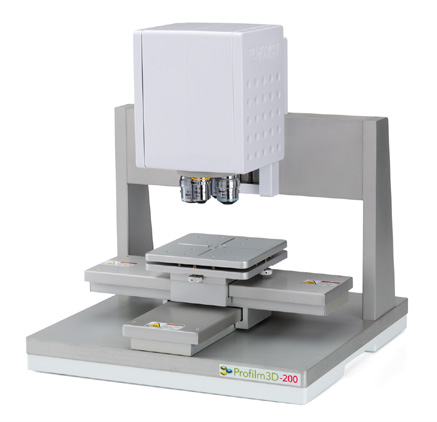

305mm×305mm×550mm (Profilm3D), 406mm×406mm×550mm (Profilm3D-200)
Sampling Size at 4X Digital Magnification
1.76μm (5X), 0.88μm (10X), 0.44μm (20X), 0.176μm (50X), 0.088μm (100X)
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

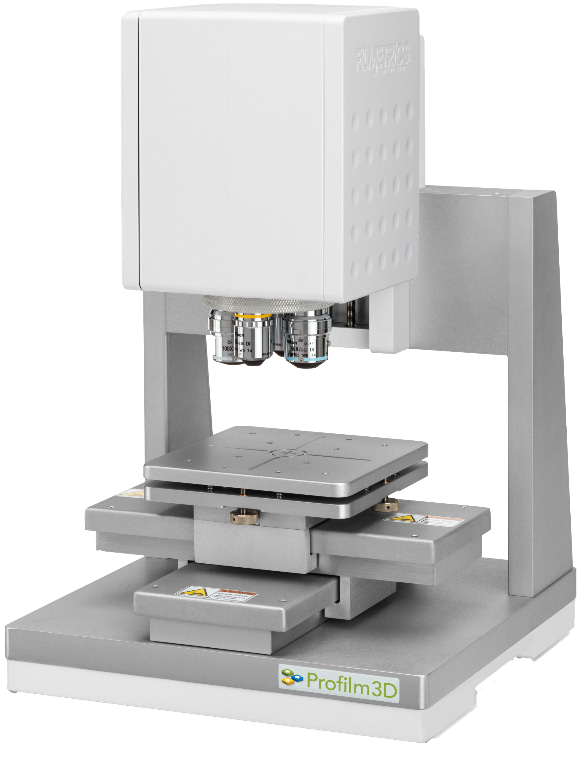

Overview

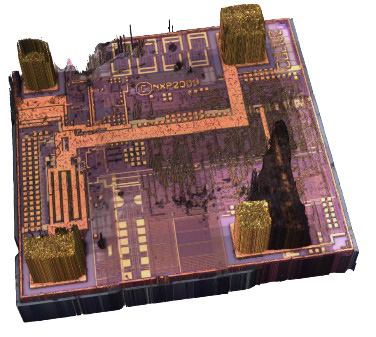

Filmetrics Profilm3D is a high-precision optical profiler designed for surface measurement and analysis, offering advanced features such as PSI and WLI technologies for 3D surface profiling and color imaging.

Specifications

ParameterValue
Z Range100mm
Piezo Stage Scan Range500μm
Vertical Resolution12μm
XY Sample Stage Scan Range100mm×100mm (Profilm3D), 200mm×200mm (Profilm3D-200)
Maximum Sample Stage Load2.5kg
Tilt Measurement Range±5°
Camera resolution2592×1944 (5MP)
Magnification1X, 2X, 4X
Color ImagingYes
WLI Measurement Thickness Range50nm-10mm
PSI Measurement Thickness Range0-3μm
WLI RMS Error1.0nm
PSI RMS Repeatability0.1nm
Step Measurement Accuracy0.79%
Step Measurement Accuracy Repeatability0.15%
Reflectivity Measurement Range0.05%-100%
ISO 25178 ComplianceYes
Sample Stage Height Range265mm (Profilm3D), 365mm (Profilm3D-200)

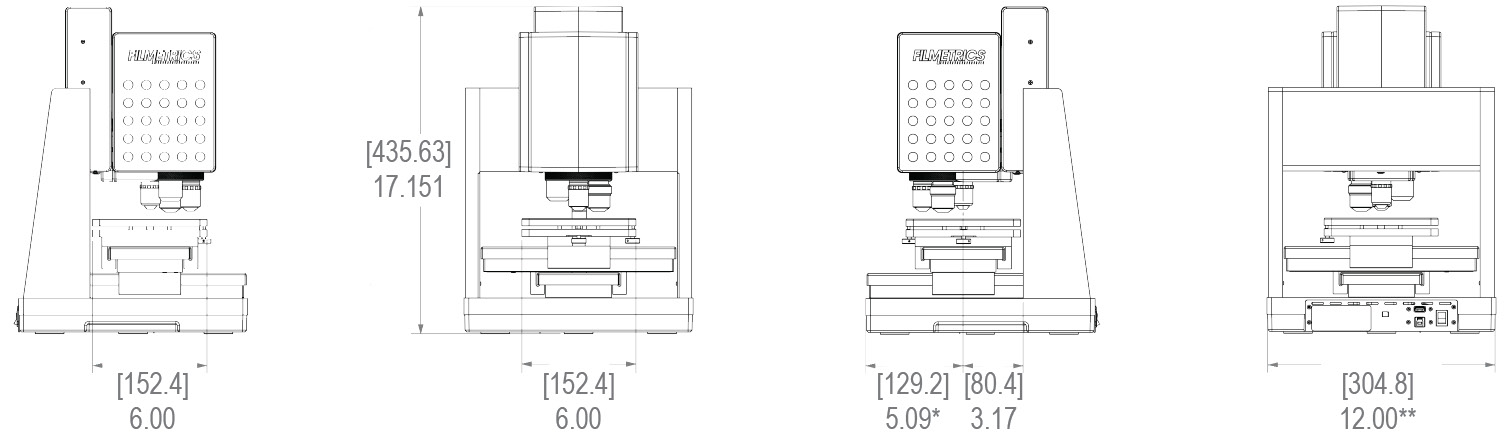

Machine Dimensions305mm×305mm×550mm (Profilm3D), 406mm×406mm×550mm (Profilm3D-200)
Machine Weight15kg (Profilm3D), 22kg (Profilm3D-200)
Magnification Range5X, 10X, 20X, 50X, 100X
Numerical Aperture0.13 (5X), 0.3 (10X), 0.4 (20X), 0.55 (50X), 0.7 (100X)
Working Distance9.3mm (5X), 7.4mm (10X), 4.4mm (20X), 2.2mm (50X), 2.1mm (100X)
Sampling Size at 4X Digital Magnification1.76μm (5X), 0.88μm (10X), 0.44μm (20X), 0.176μm (50X), 0.088μm (100X)
Field of View2.1μm (5X), 0.92μm (10X), 0.69μm (20X), 0.5μm (50X), 0.42μm (100X)
Maximum Sample Tilt Angle14° (5X), 21° (10X), 25° (20X), 21° (50X), 42° (100X)

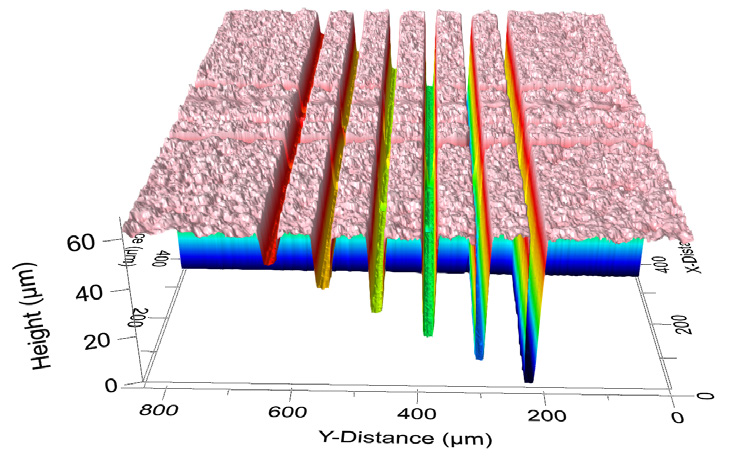

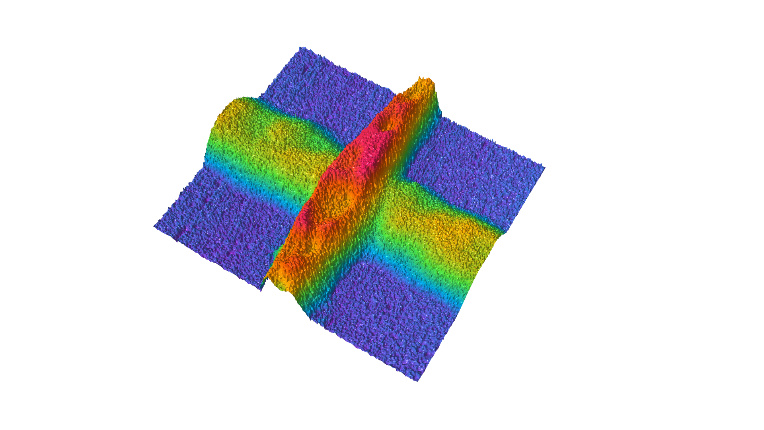

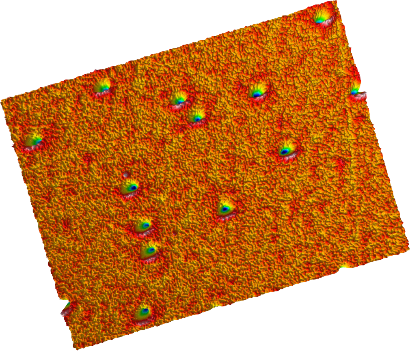

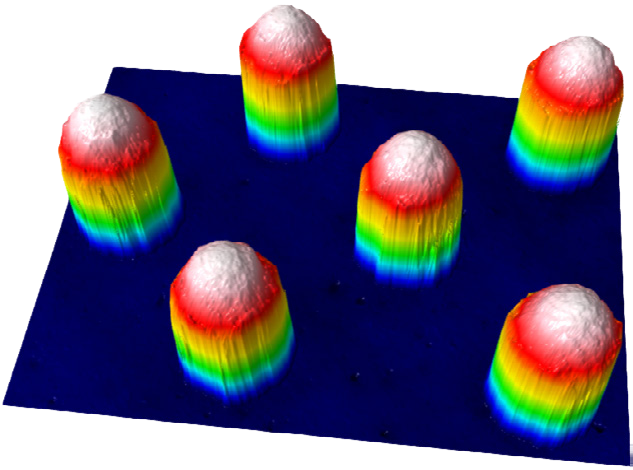

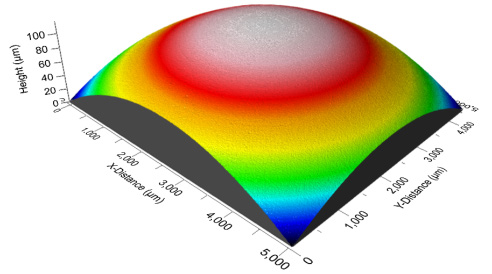

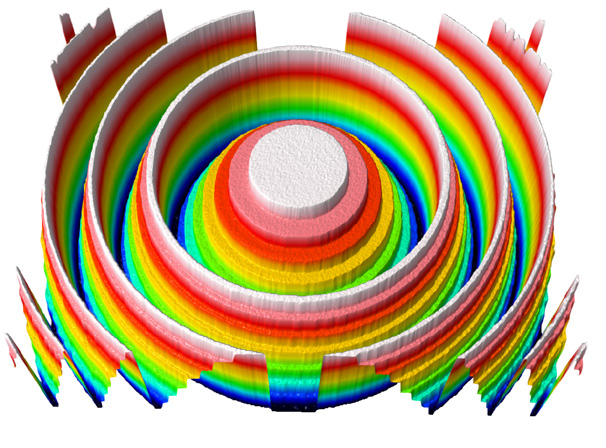

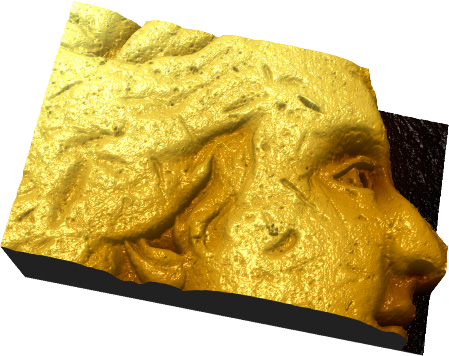

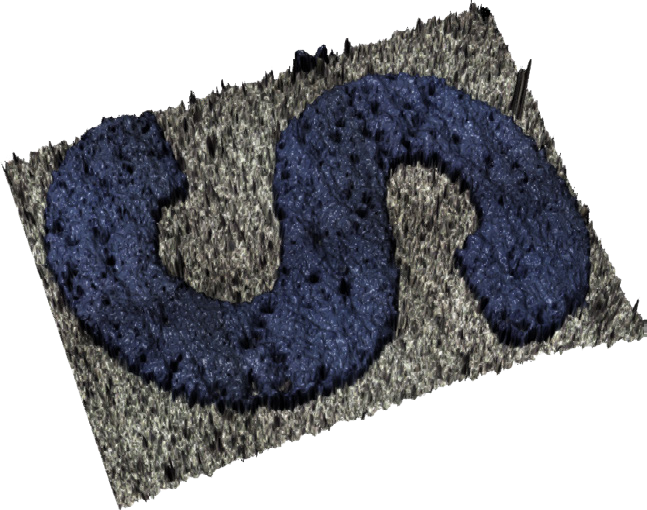

Applications

1. 3D printing and rapid prototyping 2. Metal precision machining and microfabrication 3. Semiconductor industry 4. Optics 5. Biology

Key Features

1. Automatic XY measurement stage with ranges of 100mm×100mm (Profilm3D) and 200mm×200mm (Profilm3D-200) 2. Automatic focusing with a range of 100mm 3. Tilt measurement stage with a range of ±5° 4. Advanced 500μm piezoelectric scanning range 5. Equipped with 10X objective lens and 2mm field of view 6. User-friendly and intuitive software interface

Datasheet

Product Datasheet
PDF
Download
