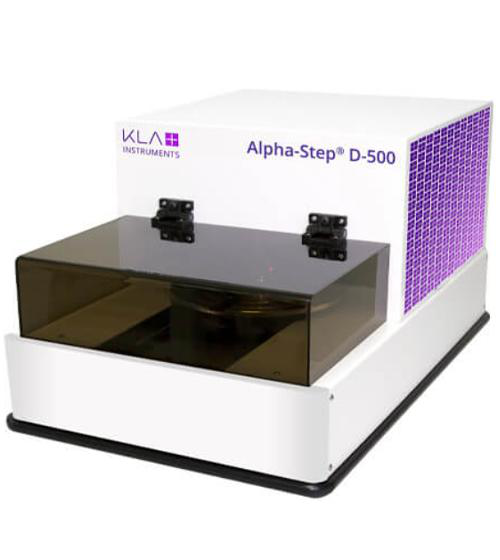

Alpha-Step D-500

Alpha-Step D-500

Supplier
Ybsemi-Solution
Part Number
Alpha-Step D-500
Category
Optical Surface Profiler
Origin
China

Alpha-Step D-500 is a stylus profiler capable of measuring step heights ranging from a few nanometers to 1200 micrometers. It is suitable for analyzing thin films, substrates, chemical mechanical polishing, and other industrial processes.

Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

Alpha-Step D-500 is a stylus profiler capable of measuring step heights ranging from a few nanometers to 1200 micrometers. It is suitable for analyzing thin films, substrates, chemical mechanical polishing, and other industrial processes.

Specifications

ParameterValue
Step Height Range几纳米至1200微米
Texture Roughness and Waviness2D纹理分析
Shape Curvature and Morphology可测量曲率 and 形貌
Stress 2D Thin Film Stress支持multiple complete plans工程Application

Applications

1. Measurement of step heights 2. Analysis of roughness and waviness 3. Evaluation of curvature and shape 4. Measurement of 2D thin film stress

Key Features

1. High precision measurement of step heights 2. Advanced software for texture analysis 3. Capability to measure curvature and morphology 4. Supports 2D thin film stress analysis

Datasheet

Product Datasheet
PDF
Download
