FlexSEM 1000 II
Material Analysis and Forensics

FlexSEM 1000 II

Supplier
Ybsemi-Solution
Part Number
FlexSEM 1000 II
Category
Material Analysis and Forensics
Origin
China

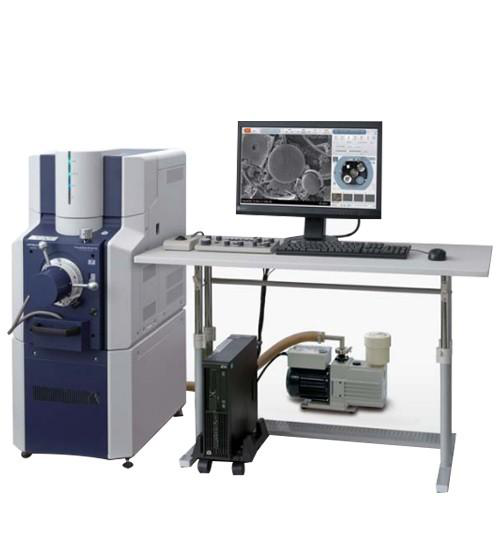

FlexSEM 1000 II is a compact and versatile scanning electron microscope (SEM) designed for high-resolution imaging and analysis. It offers advanced features for efficient and precise material characterization.

Specification Snapshot
Maximum Sample Size
Φ50mm (WD=10mm)
Stage Dimensions
X: 0–50mm; Y: 0–40mm; Z: 5–33mm; Rotation: 360°; Tilt: -15°–90°
Maximum Sample Height
80mm
Image Resolution
640×480, 1,280×960, 2,560×1,920 pixels
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

FlexSEM 1000 II is a compact and versatile scanning electron microscope (SEM) designed for high-resolution imaging and analysis. It offers advanced features for efficient and precise material characterization.

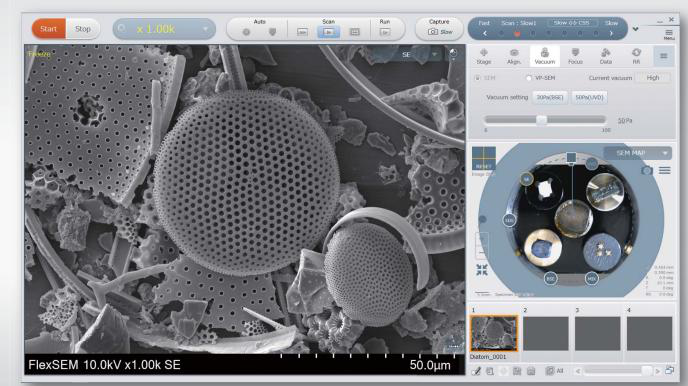

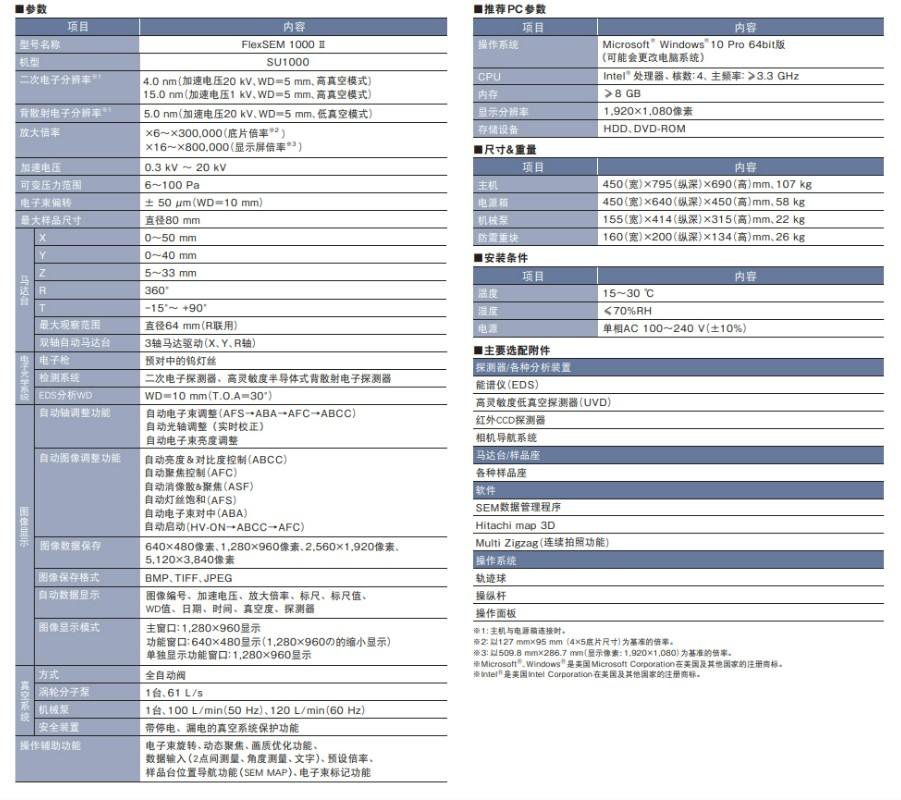

Specifications

ParameterValue
Secondary Electron Resolution4.0nm (at 20kV, WD=5mm, high vacuum mode); 15.0nm (at 1kV, WD=5mm, high vacuum mode)
Backscattered Electron Resolution5.0nm (at 20kV, WD=5mm, high vacuum mode)
Magnification×5–×300,000 (low vacuum mode); ×16–×800,000 (high vacuum mode)
Accelerating Voltage0.3kV–20kV
Low Vacuum Range6–100Pa
Maximum Sample SizeΦ50mm (WD=10mm)
Stage DimensionsX: 0–50mm; Y: 0–40mm; Z: 5–33mm; Rotation: 360°; Tilt: -15°–90°
Maximum Sample Weight450g
Maximum Sample Height80mm
Probe Movement RangeX
Probe Movement RangeY
Probe Movement RangeZ axes
Working DistanceWD=10mm (T: 0–A: 30°)
Automatic Electron Beam CenteringAvailable (AFS, ABA, AFC, ABCC)
Image Resolution640×480, 1,280×960, 2,560×1,920 pixels
Image Save FormatBMP
Image Save FormatTIFF
Image Save FormatJPEG
Vacuum System1.6L/s (oil rotary pump); 120L/min (50Hz, 120L/min, 60Hz)
Recommended PC Operating SystemMicrosoft Windows 10 Pro 64-bit
Recommended PC CPUIntel Core i3 or higher, ≥3.3GHz
Recommended PC Memory≥8GB
Recommended PC Display Resolution1920×1080
Installation ConditionsTemperature: 15–30°C; Humidity: <70% RH; Power Supply: AC 100–240V (±10%)

Applications

1. Material analysis 2. Surface morphology observation 3. Elemental composition analysis 4. Industrial quality control

Key Features

1. Compact design for space-saving 2. High-resolution imaging capabilities 3. Advanced automatic functions for ease of use 4. Supports low vacuum and high vacuum modes 5. Compatible with various sample sizes and weights

Datasheet

Product Datasheet
PDF
Download
