Apex XCT

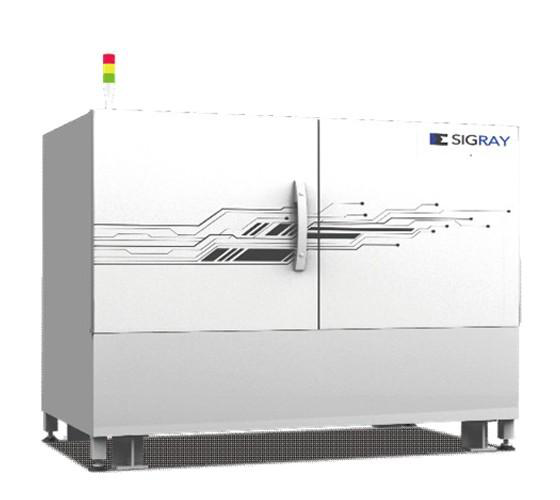

Apex XCT is a high-throughput, sub-micron resolution 3D X-ray CT system designed for rapid and precise imaging of various samples, including PCBs, soft-pack batteries, and crystalline samples.
Specification Snapshot
Spatial Resolution
Sub-micron resolution, 0.3μm voxel
Voltage
30-160kV
Request a Quote
Download Datasheet
Chat
Overview
Apex XCT is a high-throughput, sub-micron resolution 3D X-ray CT system designed for rapid and precise imaging of various samples, including PCBs, soft-pack batteries, and crystalline samples.
Specifications

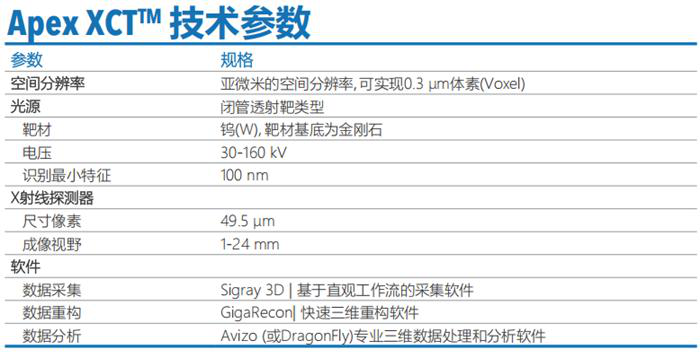

| Parameter | Value |
|---|---|
| Spatial Resolution | Sub-micron resolution, 0.3μm voxel |
| X-ray Source | Transmission type |
| Target Material | Tungsten (W), diamond substrate |
| Voltage | 30-160kV |
| Minimum Feature Recognition | 100nm |
| X-ray Detector Pixel Size | 49.5μm |
| Imaging Field of View | 1-24mm |
| Data Acquisition | Sigray 3D workflow-based acquisition software |
| Data Reconstruction | GigaRecon high-speed 3D reconstruction software |
| Data Analysis | Avizo (or DragonFly) professional 3D data processing and analysis software |
Applications
1. Failure analysis of chips and PCBs 2. Structural analysis of soft-pack batteries 3. TSV process inspection 4. Original position analysis of crystalline samples
Key Features
1. Rapid imaging within minutes 2. Eliminates traditional CT artifacts 3. Ideal for large flat samples such as PCBs and batteries
Datasheet
Product Datasheet
PDF
