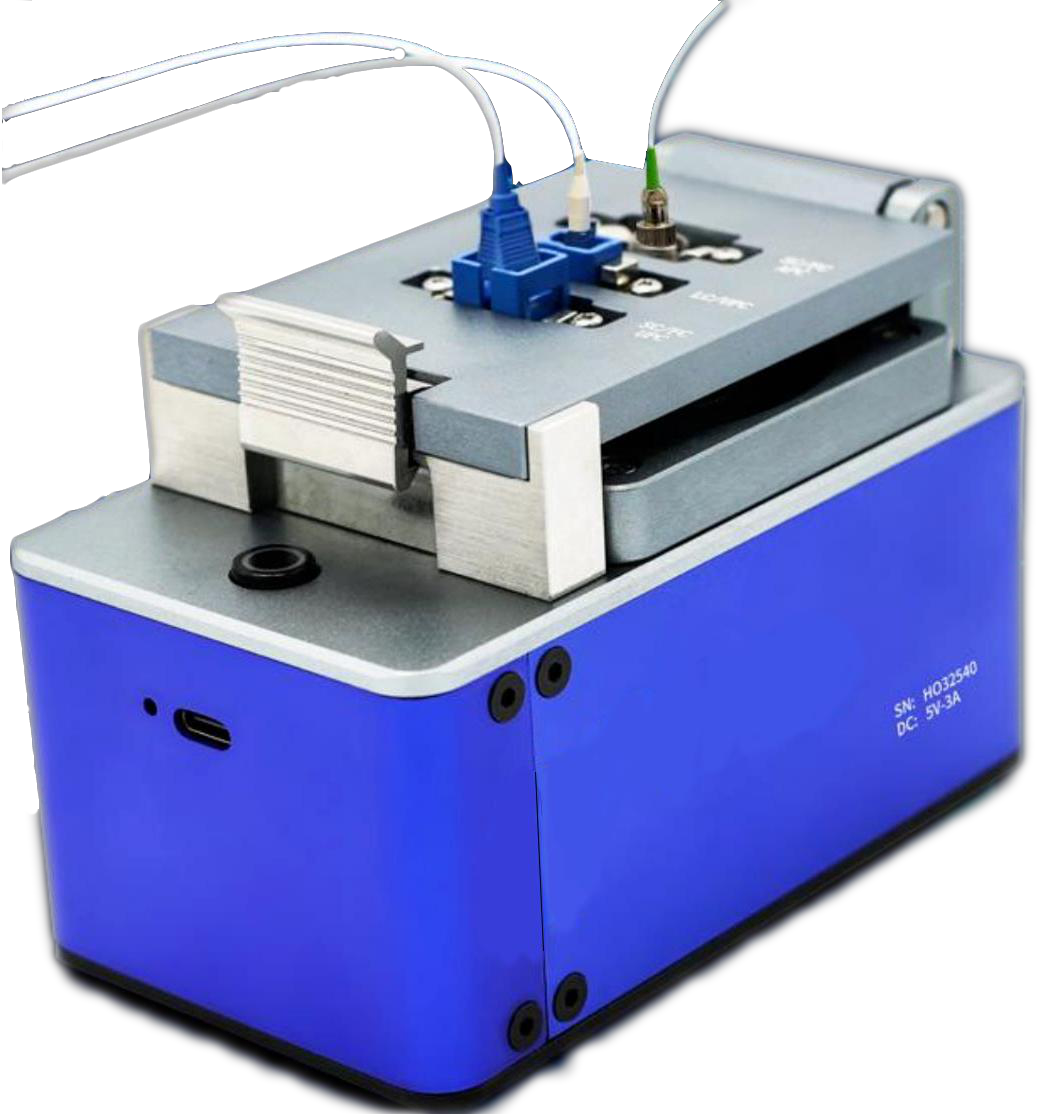

MY7011 Palm-Type Multi-Core Fiber Polishing Machine
The MY7011 palm-type multi-core fiber polishing machine is a precision polishing tool designed for multi-core fiber connectors. Its compact design is suitable for handheld operation, making it convenient for laboratory or field use. The device adopts high-quality polishing discs and a stable pressure control system to ensure the end face of the optical fiber achieves high flatness and cleanliness.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Polishing Method | 分步 |
| Single-Step Polishing Time (s) | 30s |
| Polishing Disc Lifespan | 25次 |
| Power Supply | 5V DC, 3A |
| Average Insertion Loss (dB) | <0.3 (取决于连接器品质) |
| Average Return Loss (dB) | >45 (取决于连接器品质) |
| Applicable Connectors | SC, FC, ST, LC, SMA905, 可按需定制 |
| Fixture Adaptation | SC, LC, FC (可选UPC/APC) ST, SMA905, 黑光纤, 塑料光纤等 |
| Main Unit Dimensions (mm) | 120×70×80 |
| Operating Altitude | 海拔高度: 0~6000m |
| Operating Temperature (°C) | -10~50°C |
| Storage Temperature (°C) | -20~50°C |
| Relative Humidity (RH) | 0~95 |
