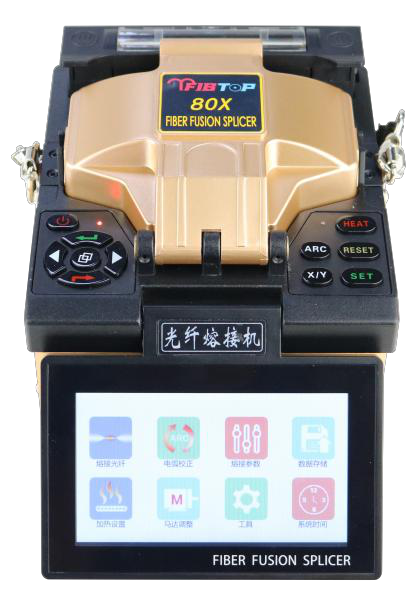

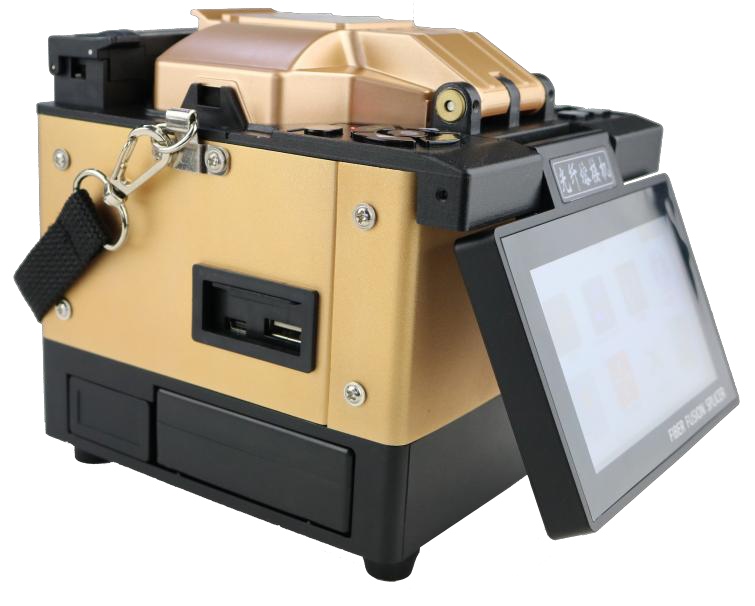

80μm Single Core Fiber Fusion Splicer
This fiber fusion splicer is designed for single-core fibers with a small core diameter of 80μm. It adopts advanced fiber alignment and splicing technology, achieving high precision and low loss fiber splicing. The device is suitable for various scenarios requiring small core fiber splicing, including optical fiber sensing, medical equipment, and precision instruments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Model | 80X |
| Fiber Type | SM (single mode), MM (multi-mode), DS (dispersion-shifted), NZDS (non-zero dispersion-shifted) |
| Cladding Diameter (μm) | 50~80; 80~150 |
| Coating Diameter (μm) | 60~100; 100~1000 |
| Cutting Length (mm) | 8~16 (coating layer diameter ≤250μm) |
| Average Splicing Loss (dB) | 0.02 (SM); 0.01 (MM); 0.04 (DS); 0.04 (NZDS) |
| Typical Splicing Time (s) | 8~10 |
| Typical Heating Time (s) | 20 (standard 60mm) |
| Return Loss (dB) | >60 |
| Heat Shrink Tube | 60mm, 40mm, and a series of micro heat shrink tubes |
| Magnification | X, Y single screen magnification up to 300x; X/Y simultaneous magnification up to 150x |
| Storage Results | Stores 10,000 splicing records; 100 splicing images |
| Tension Test (N) | Standard (optional) |
| Electrode Life | Typical 3000 uses; electrode replacement is simple and convenient |
| Power Supply | AC input: AC100~240V 50/60Hz; DC input: DC13.5V/4.5A; built-in lithium battery: 11.1V, 5200mAh |
| Working Environment | Temperature: -10~+50°C; Humidity: ≤95%RH (non-condensing); Altitude: 0~5000m; Maximum wind speed: 15m/s |
| Host Dimensions L×W×H (mm) | 154×130×132 |
| Weight (kg) | 1.65 (including battery) |
