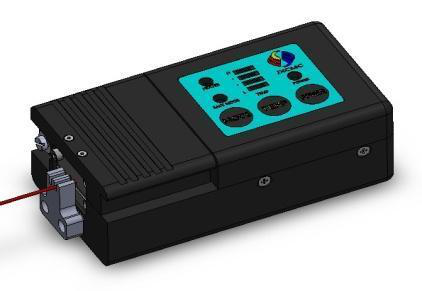

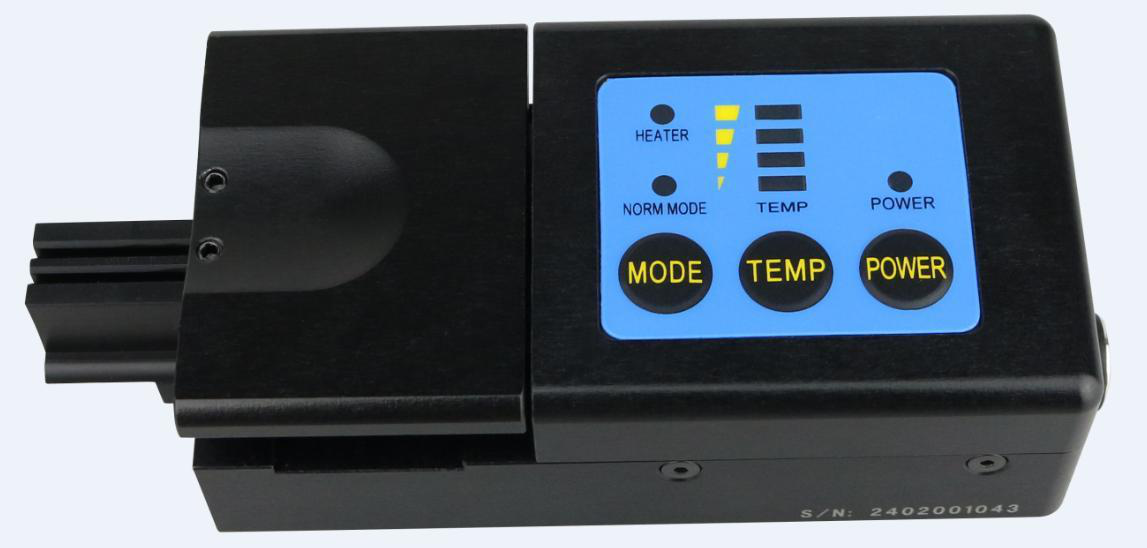

MY-280 Optical Fiber Thermal Stripper
This product is designed to be compact and lightweight, easy to use, with stable stripping performance, low stripping force, high blade quality, and long service life. It adopts a guide groove and thermal stripping method to ensure no damage to the optical fiber, easy removal of the coating layer, and effective learning features.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Coating Layer Stripping Length(mm) | 30(最大) |
| Heating Mode | 正常模式/省电模式 |
| Temperature Setting(°C) | 四档:80,100,120 and 130°C |
| Power Supply Mode | 使用适配器转换成DC12V电源 |
| Dimensions(mm) | 92.5(L)×46(D)×31.5(H) |
| Fiber Material | 石英材料 |
| Coating Material | UV硬化型树脂 |
| Fiber Core Count | 900 |
| Coating Layer Thickness(mm) | 0.9mm |
| Fiber Diameter(μm) | 125μm |
Applications
Key Features
Datasheet
