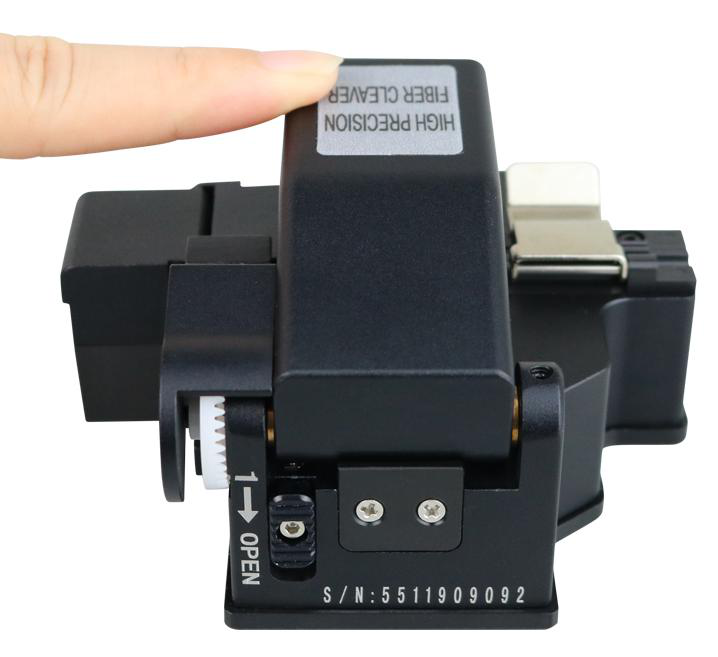

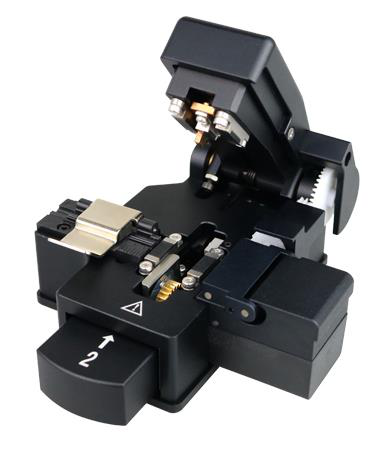

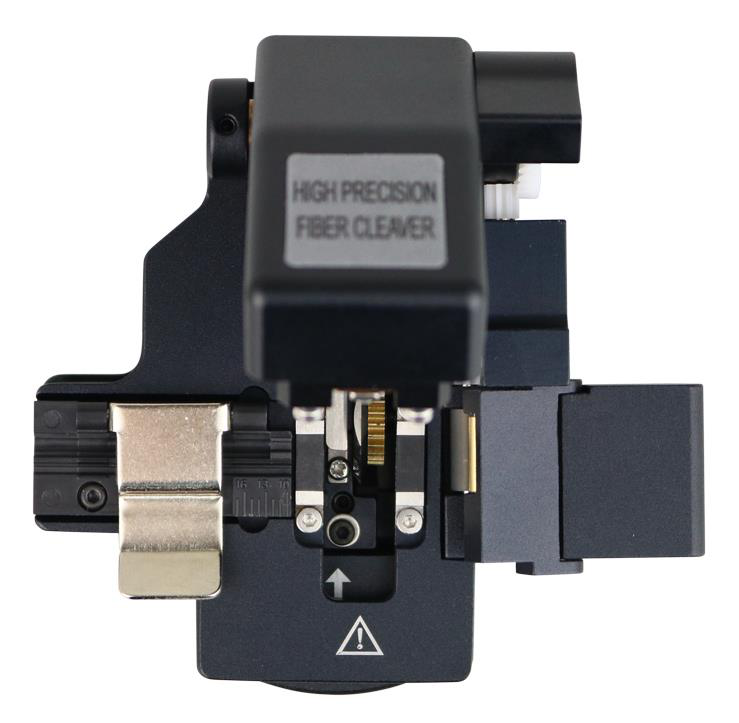

FCL-2S Precision Fiber Cleaver
FCL-2S is a high-precision fiber cleaver designed for various fiber types. It features a simple operation, flat cutting surface, and automatic blade rotation. The cleaver supports fiber lengths of 5–16mm and has a blade lifespan exceeding 60,000 cuts.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Applicable Fiber Cladding Diameter (μm) | 125 |
| Applicable Fiber | Single core, multi-core (2/4/8/12 ribbon fibers), optical fibers |
| Coating Diameter (mm) | 0.16–0.9, 2.0–3.0 |
| Fiber Cutting Length (mm) | 5–16 (φ0.25), 10–16 (φ0.9) |
| Fiber Coating Stripping Length (mm) | 23–30 |
| Cleaving Angle | ≤0.7° (typical value: 0.5°) |
| Blade Lifespan (times) | 60000 |
| Dimensions W×D×H (mm) | 107×94×50 |
| Weight (g) | 315 |
Applications
Key Features
Datasheet
