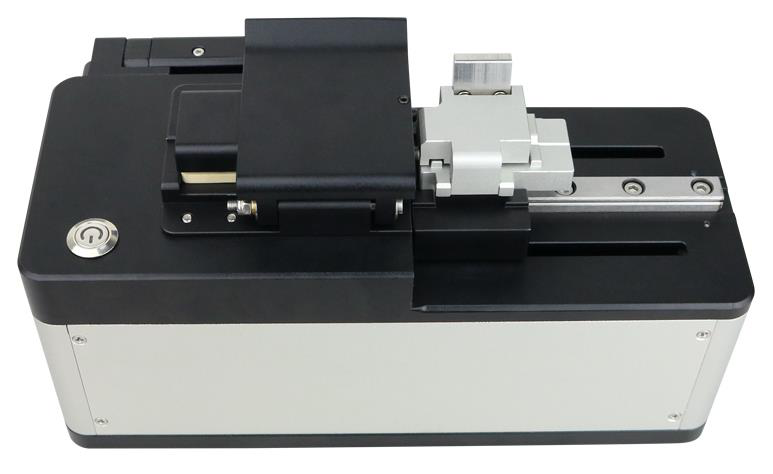

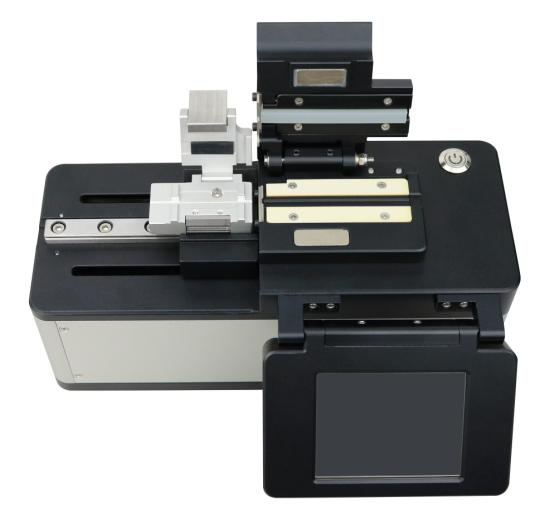

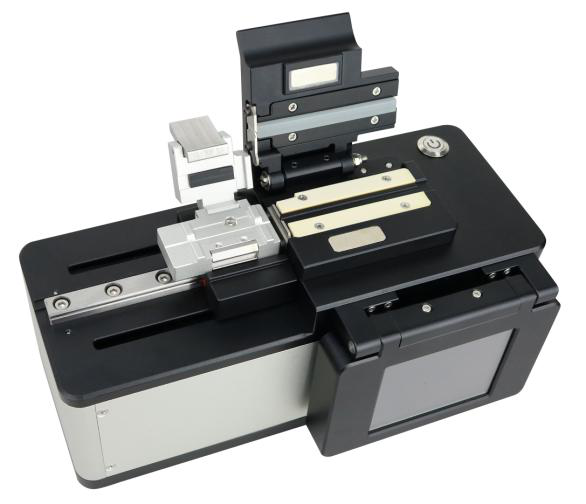

Large Diameter Single-Core Fiber Automatic Stripping Machine

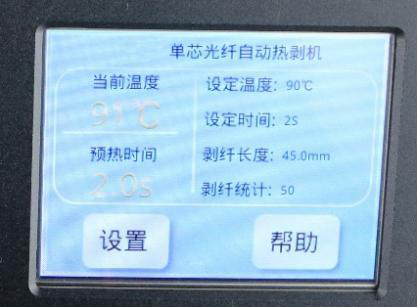

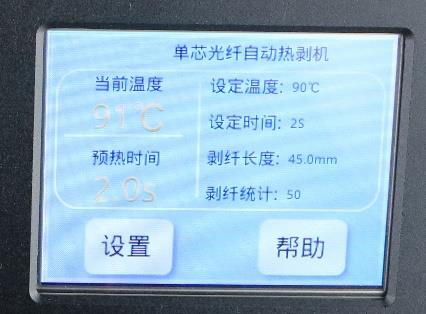

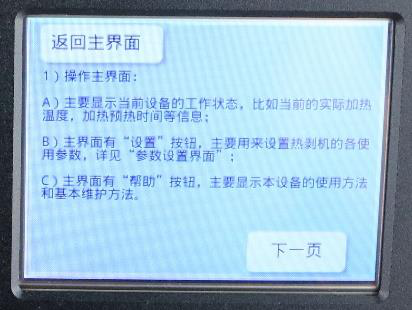

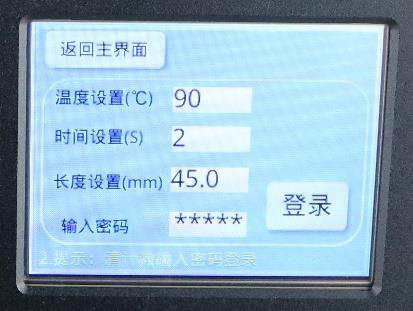

The single-core fiber automatic thermal stripper can replace the fiber fixture to strip the coating layer of optical fibers with a diameter of 60–600 μm. It is equipped with a 2.8-inch true color LCD touch screen, which can display stripping parameters, stripping time, and temperature. Users can adjust the temperature within the range of 60–120°C to ensure the appropriate temperature for stripping and maintain fiber quality.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Applicable Fiber | Quartz fiber |
| Applicable Coating Diameter (μm) | 60–600 |
| Applicable Cladding Diameter (μm) | 100–1000 |
| Stripping Length (mm) | ≤58mm |
| Heating Temperature (℃) | 60–120 adjustable°C |
| Transmission Mode | Direct drive guide rail and synchronous belt transmission |
| Fiber Stripping Method | Fully automatic |
| Fixture Platform | Special fixture (different diameter fibers require replacement fixtures) |
| Power Supply Mode | DC12V2A power supply |
| Dimensions L×D×H (mm) | 200×80×110 |
| Operating Environment Requirements | Temperature ≤50°C, Humidity ≤85% |
