MY8307 Return Loss and Insertion Loss Tester

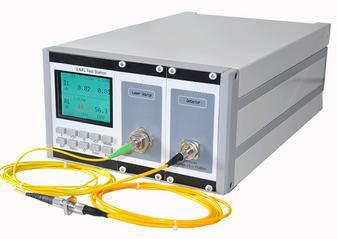

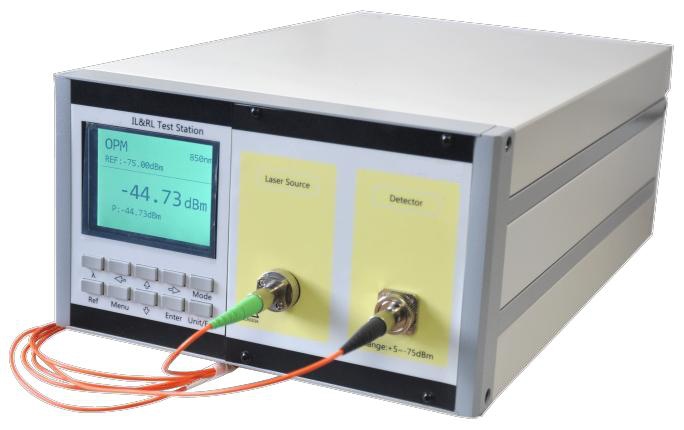

The MY8307 series return loss and insertion loss tester adopts modular design, featuring high source stability, return loss testing accuracy, and abundant testing modes and software functions. It provides an excellent solution for testing optical devices with high return loss and insertion loss accuracy, especially for devices that are inconvenient or unsuitable for end-face testing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Detector Diameter | φ2.0/3×4 |
| Wavelength Detection Range | 850-1700 |
| Optical Power Measurement Range | -75±5,-55±10 |
| Applicable Fiber Type | Standard single-mode and multi-mode fibers |
| Total Uncertainty | ±3 |
| Optical Power Meter | <10 |
| Measurement Unit | dBm/dB |
| Light Source Type | FP Laser |
| Light Source Type | LD |
| Environmental Temperature Standard | IEC-61280-4-1 |
| Source Stability | 0.01dB/15min,0.03dB/8hour,0.05dB/8hour |
| Optical Output Interface | FC/APC |
| Return Loss Testing Range | ±1dB(12~-55dB),±1.5dB(55~-65dB),±1dB(12~-40dB),±1.5dB(40~-50dB) |
| Return Loss Testing Length | 2~10m |
| Minimum Cable Length | 2m(APC),3m(PC) |
| Maximum Cable Length | 1000m |
| Operating Power | 180V~260VAC 50Hz |
| Startup Stabilization Time | 15min |
| Recommended Calibration Period | 18 months |
| Operating Temperature | +5~+40°C |
| Dimensions | 310×235×380mm |
