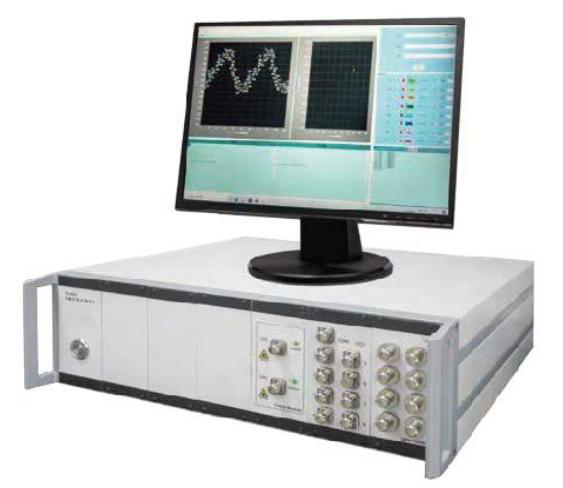

MY801 Optical Fiber Interruption Tester
MY801 Optical Fiber Interruption Tester is designed for monitoring the vibration and other dynamic environments of interconnected components to detect whether instantaneous interruptions or potential interruptions occur. It features data processing and storage functions, automatic data recovery, and the ability to eliminate interference signals caused by external factors. Widely used in aviation, aerospace systems, and military equipment.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Detection Channels | 12(Max) |
| Monitoring Power Range (dBm) | -20~10dBm |
| Monitoring Power Accuracy (dB) | 0.1~4dB |
| Monitoring Interruption Length (ms) | 1~100ms |
| Recovery Time (μs) | <10 |
| Display Mode | 800×480 7" TFT |
| Operating Voltage | 220V/50Hz |
| Storage Humidity (%) | 0~85(75%RH) |
| Dimensions (mm) | 3U×450×440 |
Applications
