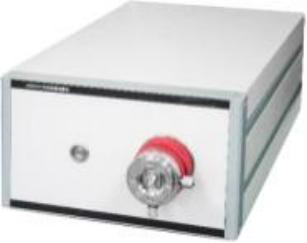

MY-806 EF Encircled Flux Meter
The Encircled Flux (EF) meter is a critical instrument for multimode fiber transmission, reflecting the distribution and transmission efficiency of optical signals in fibers. By accurately measuring and analyzing the EF, it evaluates the transmission performance and sensing capabilities of fibers, optimizing fiber structure and improving transmission efficiency. It is ideal for analyzing multimode fiber modes.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dynamic Range(dB) | 60dB |
| Test Fiber(μm) | 50, 62μm |
| Input Connector Type | 通用2.5mm, FC(标准) |
| End-face Excitation and Type | 850nm LED |
| Supported Operating System | Windows 10/11, 64位 |
Applications
Key Features
Datasheet
