Multi-channel Fiber Optic Rotary Joint

Multi-channel Fiber Optic Rotary Joint

Supplier
Fibretop
Part Number
Multi-channel Fiber Optic Rotary Joint
Category
Fiber Optics
Origin
China

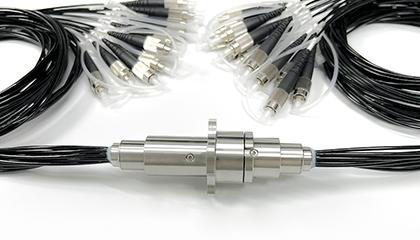

The multi-channel fiber optic rotary joint is a high-precision rotary connection device designed for applications requiring simultaneous transmission of multiple optical signals. It supports up to 12 channels and offers options for single-mode and multi-mode configurations. The product is resistant to harsh environments such as shock, vibration, and extreme temperatures.

Specification Snapshot
Insertion Loss at Room Temperature (dB)
≤4
Number of Channels
8~12
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The multi-channel fiber optic rotary joint is a high-precision rotary connection device designed for applications requiring simultaneous transmission of multiple optical signals. It supports up to 12 channels and offers options for single-mode and multi-mode configurations. The product is resistant to harsh environments such as shock, vibration, and extreme temperatures.

Specifications

ParameterValue
Operating Wavelength1310/1550nm (SM), 850/1310nm (MM)
Bandwidth (nm)±50
Insertion Loss at Room Temperature (dB)≤4
Insertion Loss Fluctuation (dB)≤2
Return Loss (dB)≥40 (SM)
Power Handling (mW)≤23
Tensile Strength (N)≤12
Rotational Speed (rpm)0~300 (customizable)
Number of Channels8~12
Operating Temperature (°C)-20~+60 (-40~+85 customizable)
Storage Temperature (°C)-40~+85
Vibration and Shock StandardGJB150 Land Military Standard
Protection LevelIP54 (IP65, IP67 optional)
Fiber Type9/125 (SM), 50/125 (MM), 62.5/125 (MM)
Fiber Tail Length1.2m or customizable
Connector TypeFC/APC, FC/PC, SC/APC, SC/PC, or others
Packagingφ0.6mm, φ2mm, φ3mm, armored

Applications

1. Simultaneous transmission of multiple optical signals 2. Harsh environments requiring shock and vibration resistance 3. Applications with extreme temperature conditions

Key Features

1. High-precision rotary connection 2. Supports up to 12 channels 3. Single-mode and multi-mode options 4. Resistant to shock, vibration, and extreme temperatures

Datasheet

Product Datasheet
PDF
Download
