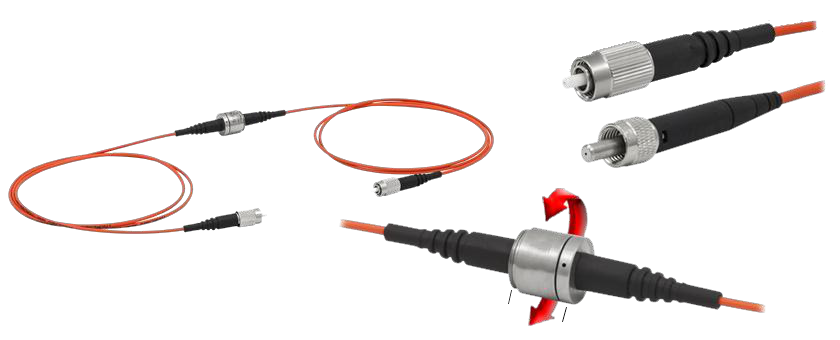

Multimode Fiber Rotary Connector Jumper
Multimode (MM) fiber rotary connector jumper is a comprehensive solution for any experiment requiring a rotary fiber connector. The internal rotary connector allows the fiber to rotate freely while keeping the light stable, reducing the risk of damage during experiments. It is designed with high precision and low insertion loss, making it suitable for various applications.
Specification Snapshot
Wavelength Range
400~2200
Request a Quote
Download Datasheet
Chat
Overview
Multimode (MM) fiber rotary connector jumper is a comprehensive solution for any experiment requiring a rotary fiber connector. The internal rotary connector allows the fiber to rotate freely while keeping the light stable, reducing the risk of damage during experiments. It is designed with high precision and low insertion loss, making it suitable for various applications.
Specifications
| Parameter | Value |
|---|---|
| Model RJPF2 | RJPF2 |
| Model RJPF4 | RJPF4 |
| Model RJPS4 | RJPS4 |
| Connector Type RJPF2 | FC/PC |
| Connector Type RJPF4 | FC/PC |
| Connector Type RJPS4 | SMA |
| Fiber Core Diameter RJPF2 | φ200±5 |
| Fiber Core Diameter RJPF4 | φ400±8 |
| Fiber Core Diameter RJPS4 | φ400±8 |
| Cladding Diameter RJPF2 | φ225±5 |
| Cladding Diameter RJPF4 | φ425±10 |
| Cladding Diameter RJPS4 | φ425±10 |
| Coating Diameter RJPF2 | φ500±30 |
| Coating Diameter RJPF4 | φ730±30 |
| Coating Diameter RJPS4 | φ730±30 |
| Fiber Count RJPF2 | 1 |
| Fiber Count RJPF4 | 1 |
| Fiber Count RJPS4 | 1 |
| Short/Long End Diameter RJPF2 | 21/42 |
| Short/Long End Diameter RJPF4 | 43/86 |
| Short/Long End Diameter RJPS4 | 43/86 |
| Numerical aperture | 0.39 |
| Wavelength Range | 400~2200 |
| Length | 1m each |
| Package Size | φ2 |
| Rotary Head Insertion Loss | <2.0 (Transmission rate>63%) |
| Rotary Process Insertion Loss | ±0.4 (Transmission rate>8%) |
| Starting Torque | <0.01 (Deviation value150μN·m) |
| Max RPM | 10000 |
| Life Cycle | 2~4 |
| Operating Temperature | <50 |
Applications
1. Used in experiments requiring rotary fiber connectors 2. Suitable for low insertion loss and high stability applications 3. Applicable for wavelengths from 400nm to 2200nm
Key Features
1. Rotary connector prevents fiber damage during rotation 2. Smooth rotation and high precision
