在线式偏光纤法拉第旋转镜

在线式偏光纤法拉第旋转镜

Supplier
Fibretop
Part Number
在线式偏光纤法拉第旋转镜
Category
Fiber Optics
Origin
China

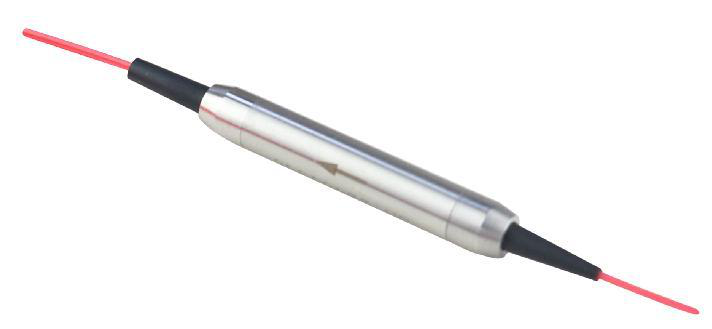

The inline polarization-maintaining fiber Faraday rotator is used to change the polarization state of input light, making the polarization of light passing through the Faraday rotator rotate 45 degrees. It features low insertion loss, high return loss, high reliability, and excellent environmental stability. It minimizes changes in polarization state caused by thermal and mechanical disturbances in the fiber. It is particularly outstanding in applications such as fiber amplifiers and fiber lasers.

Specification Snapshot
Maximum Insertion Loss (dB) 1030
3.0
Maximum Insertion Loss (dB) 1064
1.7
Maximum Insertion Loss (dB) 1310/1480/1550
1.6
Maximum Insertion Loss (dB) 1950/2000
0.8
Extinction Ratio (dB)
20
Power Handling (mW)
50-150
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The inline polarization-maintaining fiber Faraday rotator is used to change the polarization state of input light, making the polarization of light passing through the Faraday rotator rotate 45 degrees. It features low insertion loss, high return loss, high reliability, and excellent environmental stability. It minimizes changes in polarization state caused by thermal and mechanical disturbances in the fiber. It is particularly outstanding in applications such as fiber amplifiers and fiber lasers.

Specifications

ParameterValue
Center Wavelength (nm) 1030±5
Center Wavelength (nm) 1064±5
Center Wavelength (nm) 1310/1480/1550±30
Center Wavelength (nm) 1950/2000±30
Maximum Insertion Loss (dB) 10303.0
Maximum Insertion Loss (dB) 10641.7
Maximum Insertion Loss (dB) 1310/1480/15501.6
Maximum Insertion Loss (dB) 1950/20000.8
Single Pass Rotation Angle45°
Rotation Angle Error±3°
Extinction Ratio (dB)20
Minimum Return Loss (dB)50
Power Handling (mW)50-150
Fiber TypePM Fiber
Fiber Pigtail Length1m or others
Connector TypeFC/APC or others

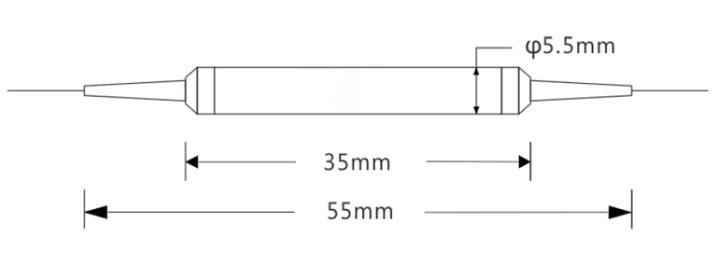

Package Dimensionsφ5.5×L35
Operating Temperature (°C)-5~+70
Storage Temperature (°C)-40~+85

Applications

1. Fiber laser devices 2. Fiber amplifiers 3. Fiber sensors 4. Fiber interferometers

Key Features

1. Low insertion loss 2. High extinction ratio 3. High stability and reliability 4. Compact design

Datasheet

Product Datasheet
PDF
Download
