Hard-Clad Silica Fiber (HCS Fiber)

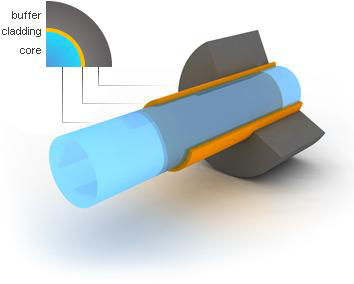

Hard-Clad Silica Fiber (HCS Fiber) is a specially designed optical fiber with a pure silica core and a hard polymer cladding material (e.g., fluorinated polyacrylate). This structure combines the high transmission performance of silica fiber with the mechanical strength and cost advantages of polymer cladding, making it widely applicable in communication, sensing, and industrial fields.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Model HCS200 | HCS200 |
| Fiber Model HCS400 | HCS400 |
| Fiber Model HCS600 | HCS600 |
| Fiber Model HCS1000 | HCS1000 |
| Core Material | Pure silica |
| Cladding Material | Hard polymer material |
| Cladding Numerical Aperture | 0.37~0.48 |
| Core Diameter (μm) HCS200 | 200±2.0μm |
| Core Diameter (μm) HCS400 | 400±2.0μm |
| Core Diameter (μm) HCS600 | 600±2.0μm |
| Core Diameter (μm) HCS1000 | 1000±2.0μm |
| Cladding Diameter (μm) HCS200 | 230±0.2μm |
| Cladding Diameter (μm) HCS400 | 430±0.2μm |
| Cladding Diameter (μm) HCS600 | 650±0.2μm |
| Cladding Diameter (μm) HCS1000 | 1050±0.2μm |
| Buffer Diameter (μm) HCS200 | 500±0.5μm |
| Buffer Diameter (μm) HCS400 | 730±0.5μm |
| Buffer Diameter (μm) HCS600 | 1040±0.5μm |
| Buffer Diameter (μm) HCS1000 | 1400±0.5μm |
| Tensile Strength (ksi) | ≥70 |
| Cladding Temperature (°C) | 50~120°C |
| Buffer Material | Nylon |
| Buffer Temperature (°C) | -40~85°C |
| Buffer Material (Polyethylene) | Polyethylene |
| Buffer Temperature (°C) (Polyethylene) | -200~150°C |
