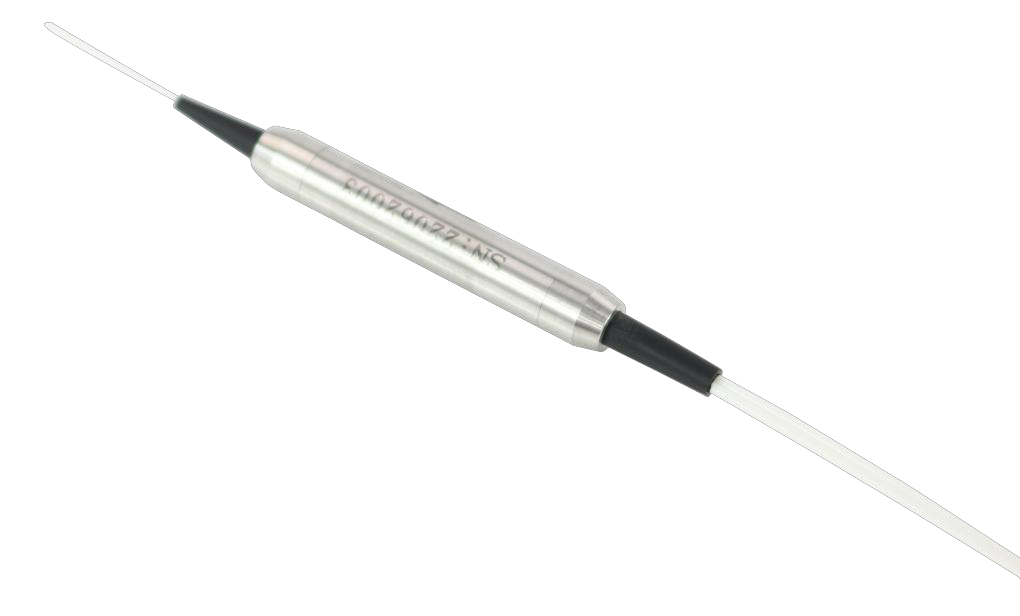

Filter WDMs
Filter WDMs are optical devices based on thin-film filter technology, designed for wavelength signal combination and separation. They feature precise thin-film filter technology, ensuring low insertion loss, high isolation, and excellent environmental stability. Widely used in optical communication, fiber laser systems, and sensing applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1460~1650nm |
| Passband Wavelength (nm) | 1550±6.5nm |
| Reflection Band Wavelength (nm) | 1460~1536.5,1563.5~1650nm |
| Passband Insertion Loss (dB) | ≤1.0dB |
| Reflection Band Insertion Loss (dB) | ≤0.7dB |
| Directivity (dB) | ≥50dB |
| Return Loss (dB) | ≥45dB |
| Polarization Dependent Loss (dB) | ≤0.15dB |
| Polarization Mode Dispersion (ps) | ≤0.15ps |
| Maximum Optical Power (mW) | 500mW |

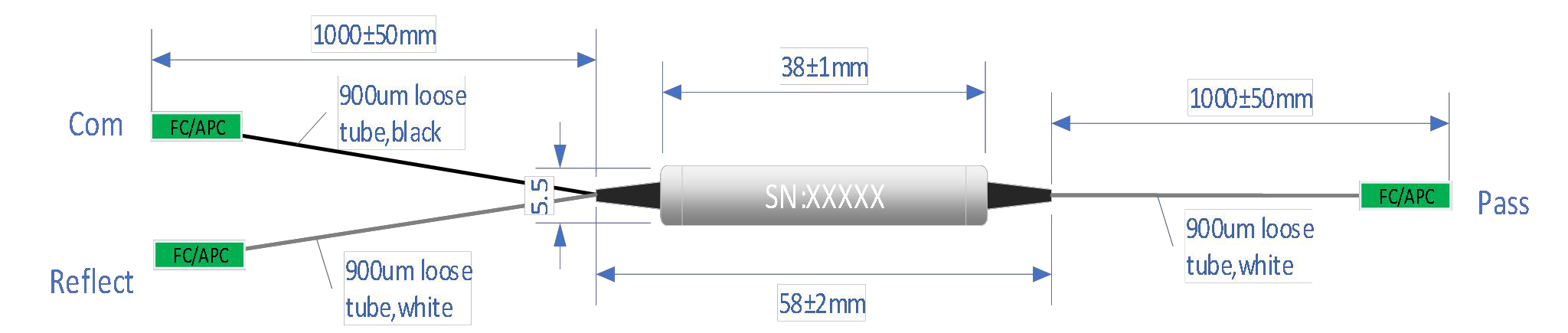

| Fiber Length (m) | 1.0±0.05m |
| Sleeve Type | 900μm loose tube (Hytrel) |
| Operating Temperature (°C) | -20~+85°C |
| Storage Temperature (°C) | -40~+85°C |
