TruHeat HF Series

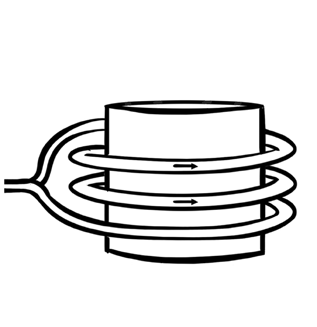

TruHeat HF Series generators are designed for induction heating processes, offering compact size, high power density, and broad frequency range. They are ideal for applications ranging from micro-device thermal treatment to highly automated heating processes.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Output Power | 5kW, 10kW |
| Output Frequency | 50kHz-450kHz at 35A, 50kHz-800kHz at 17.5A |
| Winding Ratio of the Output Transformer | 6:1-16:1 |
| Output Voltage | 250V, 520V |
| Output Current | 17.5-35A |
| Mains Power Consumption | 6.5kVA-12.5kVA |
| Mains Voltage | 3/PE AC 200/208V ±10%, 3/PE AC 400V ±10% |
| Mains Frequency | 50Hz/60Hz |
| Power Factor | 0.95 |
| Efficiency | 90% |
| Max. Water Pressure | 6bar |
| Min. Differential Pressure | 3bar |
| Water Flow Rate | 4.2l/min-9.5l/min |
| External Circuit | 3.6l/min |
| Max. Cooling Water Temperature | 35°C |
| Dimensions | 211mm x 122mm x 500mm (HF Series 1000), 483mm x 133mm x 662mm (HF Series 3000), 555mm x 195mm x 700mm (HF Series 5000), 114mm x 186mm x 328mm (External Circuit) |
| Weight | 16kg (HF Series 1000), 30kg (HF Series 3000), 41kg (HF Series 5000), 12kg (External Circuit) |
| Protection Class | IP30 (HF Series 1000), IP54 (HF Series 3000), IP54 (HF Series 5000), IP54 (External Circuit) |
| Interfaces | 37-pin Sub-D (AD user interface), 9-pin Sub-D (RS-232), 5-pin mini-style connector (CAN bus), 9-pin Sub-D (PROFIBUS) |
| Certification | CE |
