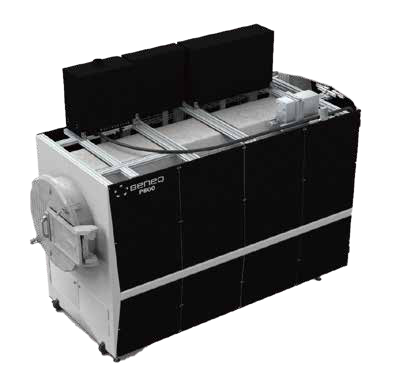

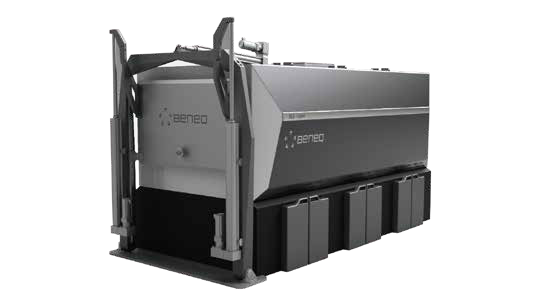

P Series ALD Platform
The P Series is designed for industrial-scale batch production, offering large reaction chambers for high-volume thin film deposition. It ensures uniformity across batches and supports various substrate types and thicknesses, making it ideal for ALD processes from research to production.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Process Type | Thermal ALD |
| Process Temperature Range | 25-550°C |
| Substrate Type | Silicon wafers, glass, metal materials, polymer 3D substrates |
| Vacuum Chamber Size | ø400mm (P400A), ø800mm (P800), ø1700mm (P1500) |
| Reaction Chamber Loading and Size | 240×240×720mm with 23 shelf cassette, 370×470×25mm with 2 shelf cassette (P400A); 550×310×700mm, 380×380×900mm, 730×1200×10mm (P800); 1300×2400×750mm (P1500) |
| Precursor Volume | 5 standard cylinders, user-defined options (P400A, P800); maximum 16.2L (P1500) |
| Equipment Dimensions | 2400×930×2420mm (P400A), 3200×1340×2460mm (P800), 6195×2480×2600mm (P1500) |
Applications
Key Features
Datasheet
