TFS Series

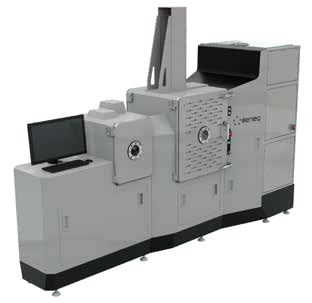

The TFS series is designed for scientific research and enterprise development, offering flexible ALD platforms that can be customized and upgraded to meet diverse user needs.
Save to Favorites
Overview
Specifications

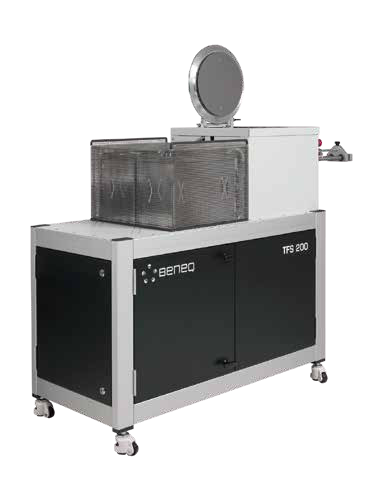

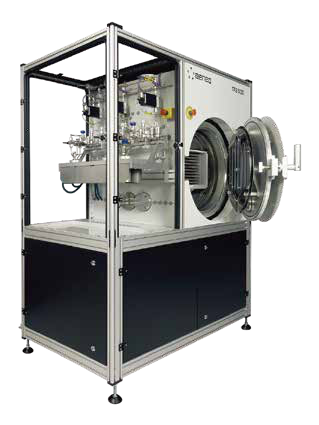

| Parameter | Value |
|---|---|
| Process Type | Thermal ALD |
| Process Type | PEALD |
| Substrate Type TFS200 | 单片200mm 200×200mm 3D部 Items 粉状材料 |
| Substrate Type TFS500 | 单片300mm 单片370×470mm玻璃基底材料 3D部 Items/粉状材料 |
| Substrate Loading | 自动, 手动 |
| Process Temperature Range | 25-500°C |
| Integrable Modules | Glove box/Load-lock/Cluster |
| Reaction Chamber Quantity and Size TFS200 | 单片Thermal, 单片Plasma 3D/批量沉积反应腔, 最大尺寸200mm晶圆 |
| Reaction Chamber Quantity and Size TFS500 | 单片Thermal, 单片Plasma 3D/批量沉积, 粉状反应腔 |
| Reaction Sources TFS200 | 8路液体源 (+5°C至室温) 4路液体源H5300 (室温至300°C) |
| Reaction Sources TFS500 | 5路气体源 4路液体源 (+5°C至室温) 4路液体源H5300 (室温至300°C) |
| Plasma Type (PEALD) | 电容耦合等离子体 (CCP) 功率可调 |
| Main Equipment Dimensions TFS200 | 1325×600×1298mm |
| Main Equipment Dimensions TFS500 | 1600×900×1930mm |
