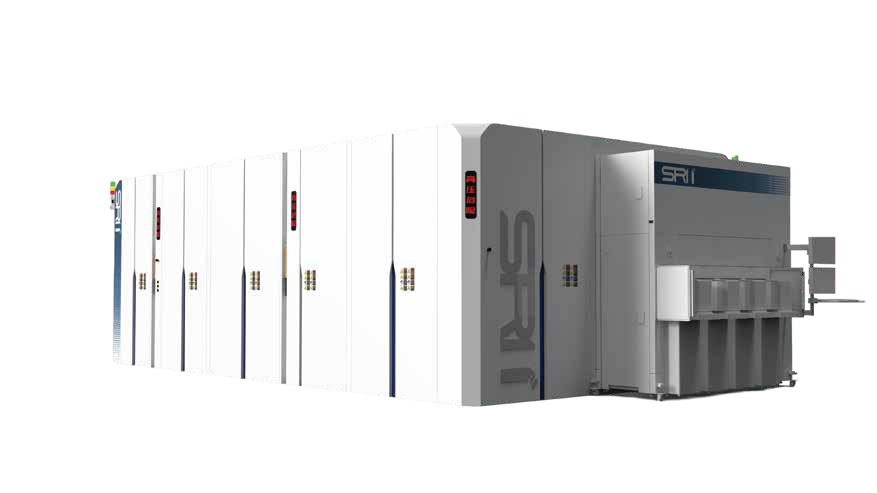

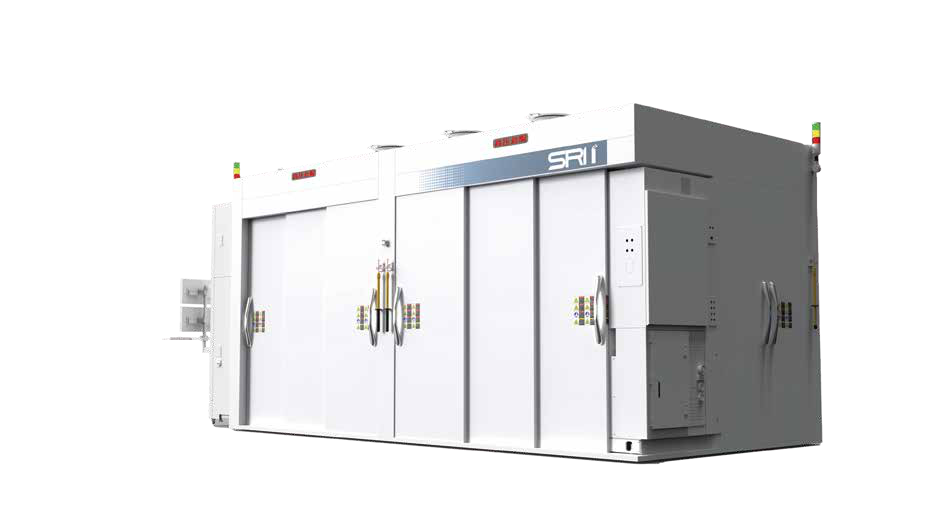

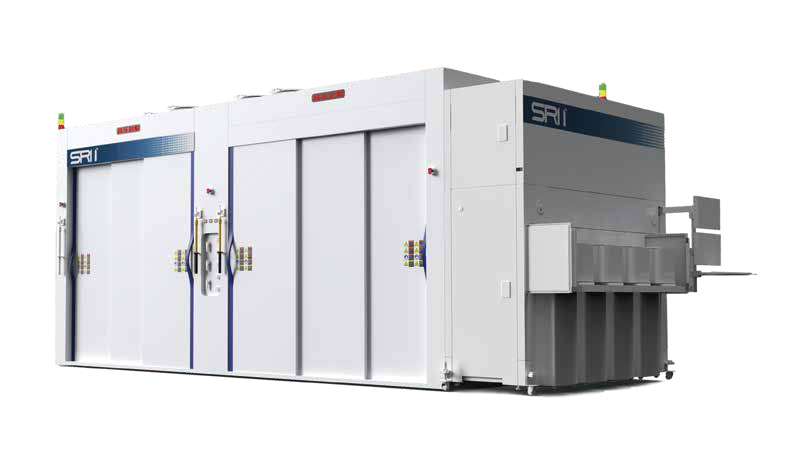

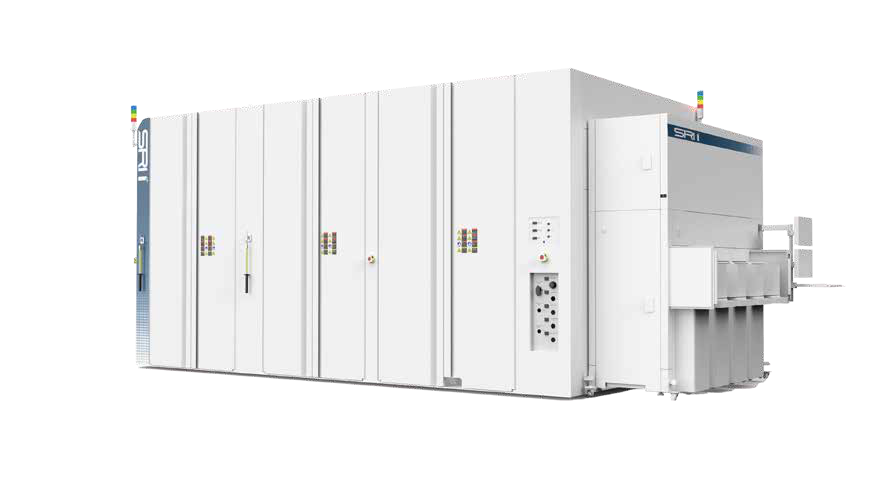

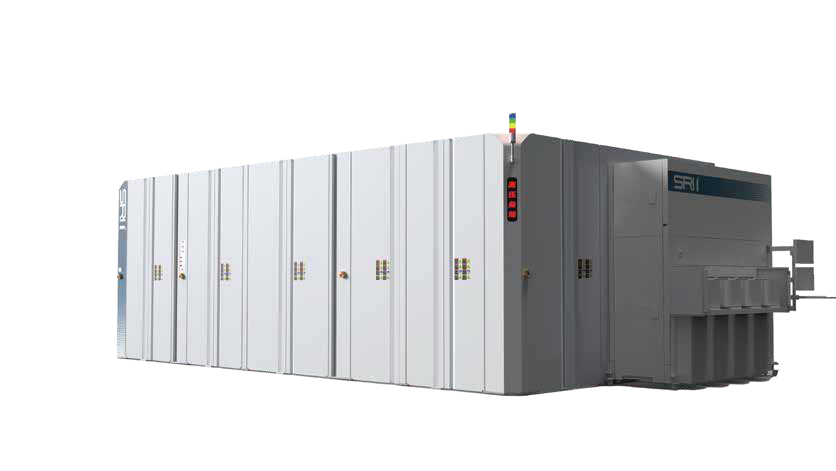

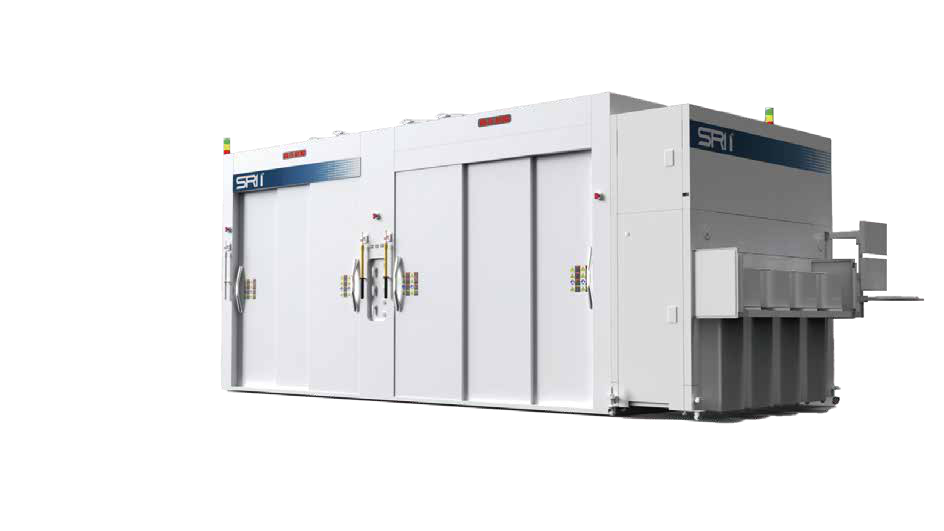

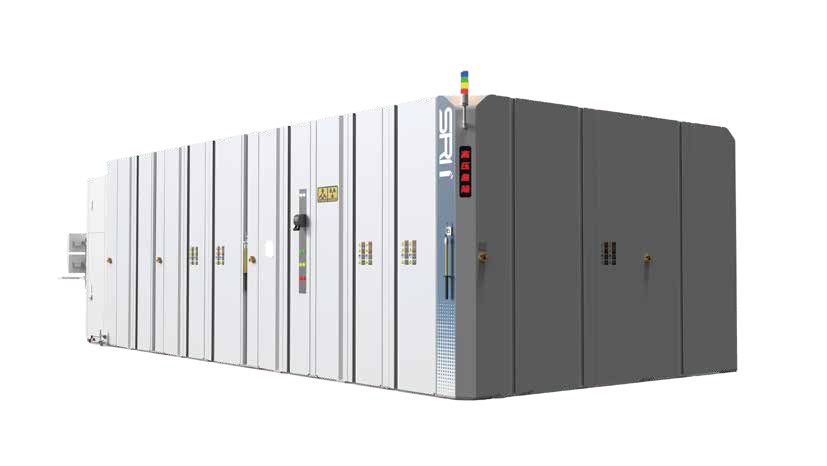

SRII Ion Implanter Series
The SRII Ion Implanter Series offers advanced ion implantation solutions for semiconductor manufacturing, featuring high precision, energy efficiency, and compatibility with various wafer sizes.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Product | SRII-60, SRII-200, SRII-1.5M, SRII-4.5M SiC, SRII-200 SiC, SRII-300 SiC, SRII-4.5M, SRII-8M, SRII-300 |
| Dimensions | 6.48×2.76×3.06m, 6×3×3.06m, 9.2×4.2×3m, 8.03×4.6×2.86m, 6×3×3.06m, 7.52×3.19×3.08m, 8.9×4.2×2.86m, 9.7×4.4×2.86m, 7.52×3.19×3.08m |
| Wafer Size | 200mm/300mm, 150mm/200mm |
| Species | H/He, Al/N/B/P/As, B/P/As |
| Application | SOI materials, semiconductor devices, power devices, SiC, logic/memory/power/CIS |
| Energy Range | 1-60keV (option 80keV), 5-200keV, 1.5MeV, 40-4500keV, 2-900keV, 40-8000keV |
| Energy Accuracy | ±1% |
| Dose Range | 5E14-1E17 ions/cm², 5E10-1E15 ions/cm², 1E13-5E16 ions/cm², 1E11-1E16 ions/cm² |
| Dose Uniformity | 0.7%-1%, 0.5% |
| Dose Repeatability | 0.7%-1%, 0.5% |
| Max Wafer Temperature | 600°C |
| Autotune Success | 92%, 95% |
