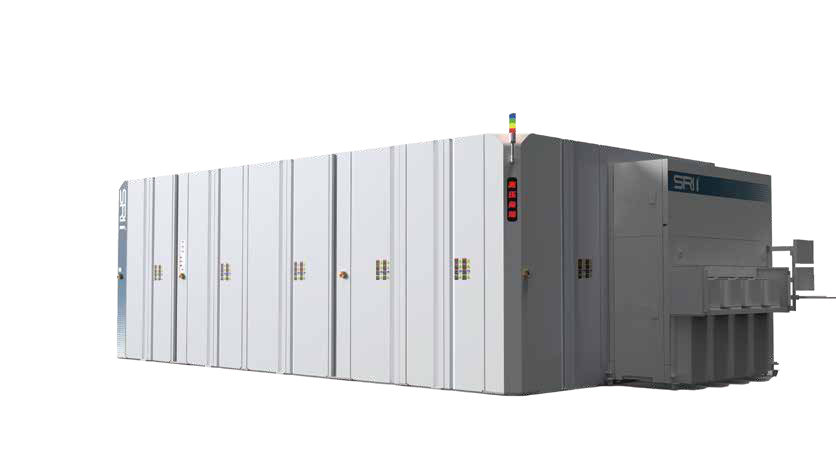

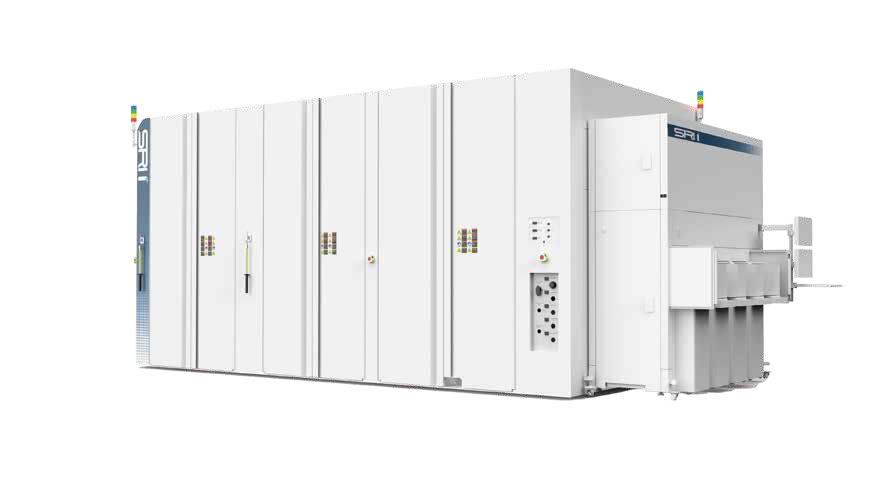

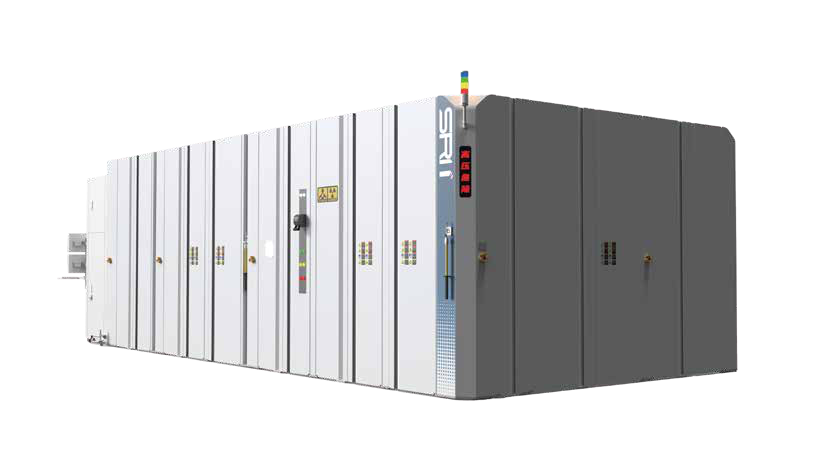

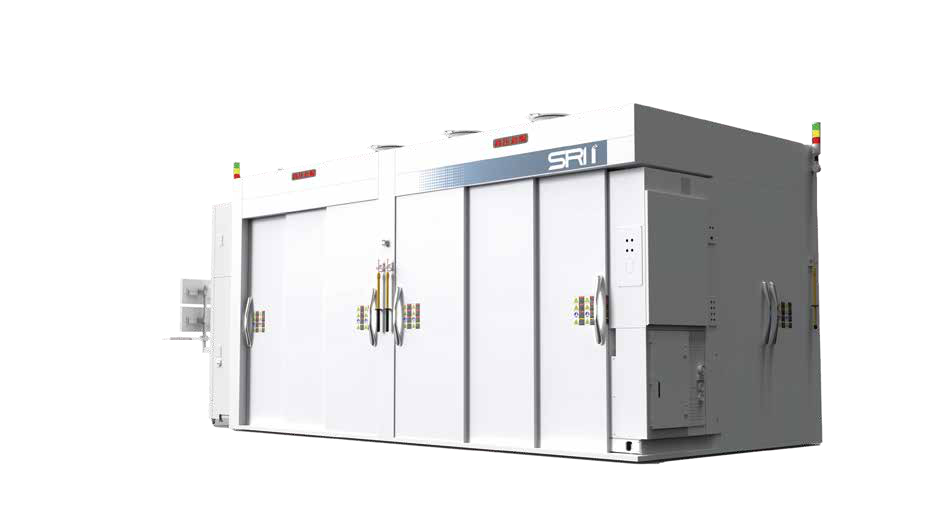

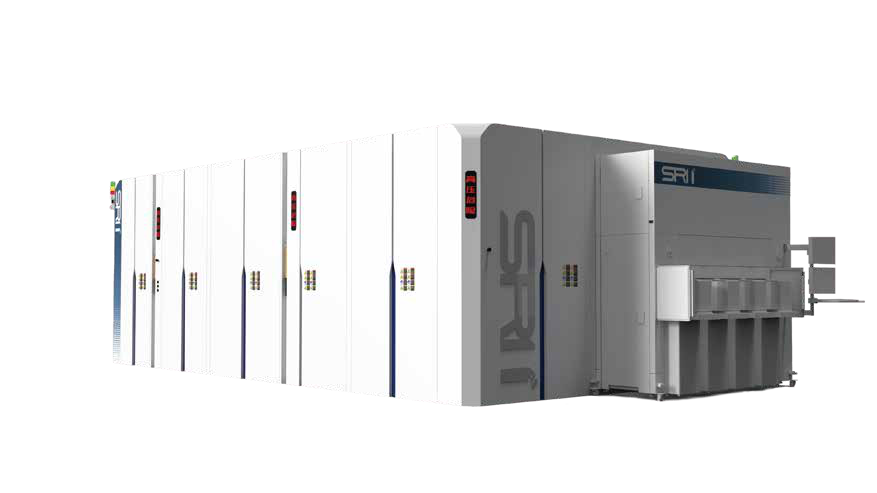

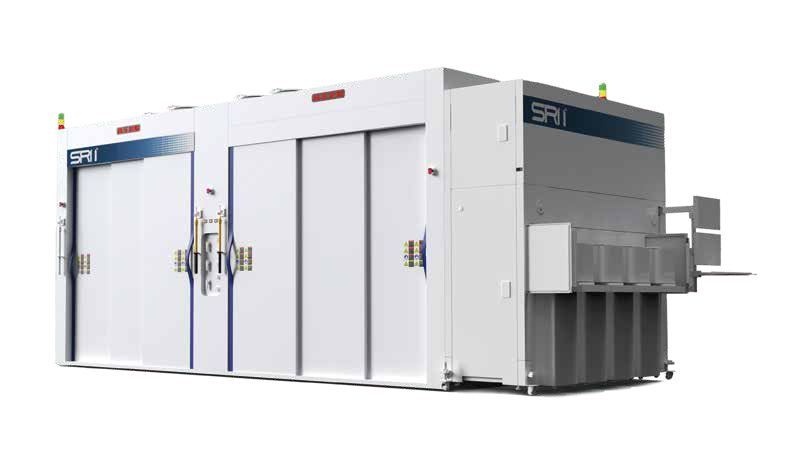

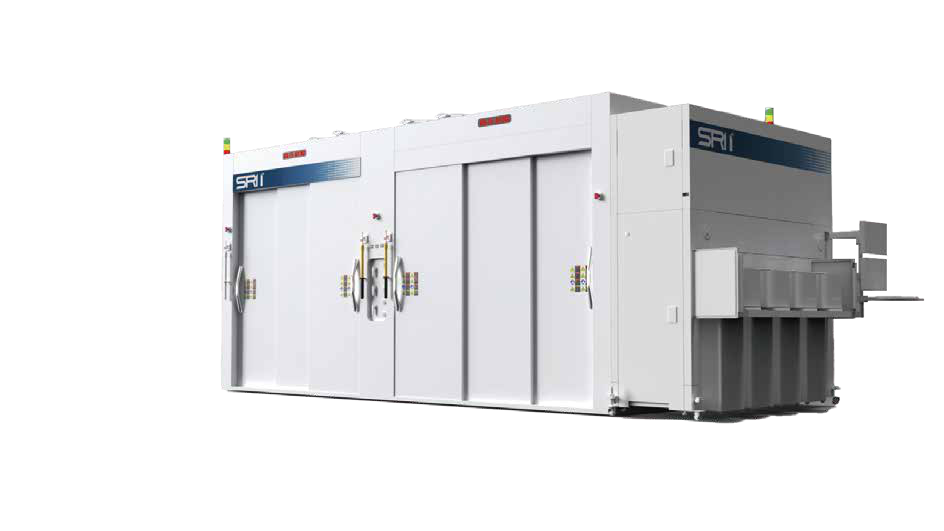

SRII Ion Implanter Series
The SRII Ion Implanter Series offers advanced ion implantation solutions for semiconductor manufacturing, featuring high precision, energy control, and compatibility with various wafer sizes.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Product | SRII-60, SRII-200, SRII-1.5M |
| Dimensions | 6.48×2.76×3.06m, 6×3×3.06m, 9.2×4.2×3m |
| Wafer Size | 200mm/300mm |
| Species | H/He |
| Application | SOI materials |
| Application | logic chips |
| Application | power devices |
| Energy Range | 1-60keV (option 80keV), 5-200keV, 1.5MeV |
| Energy Accuracy | ±1% |
| Dose Range | 5E14-1E17 ions/cm², 5E10-1E15 ions/cm² |
| Dose Uniformity | 0.7%-1%, 1% |
| Dose Repeatability | 0.7%-1%, 1% |
| Autotune Success | 92% |
