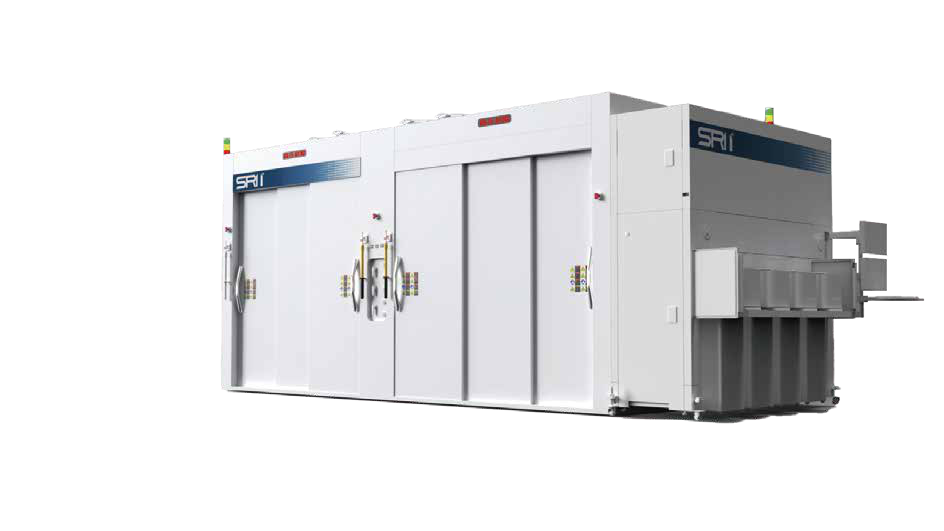

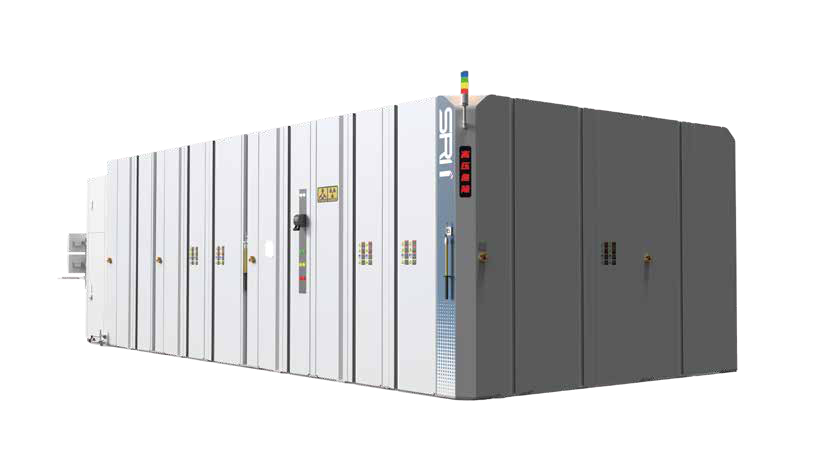

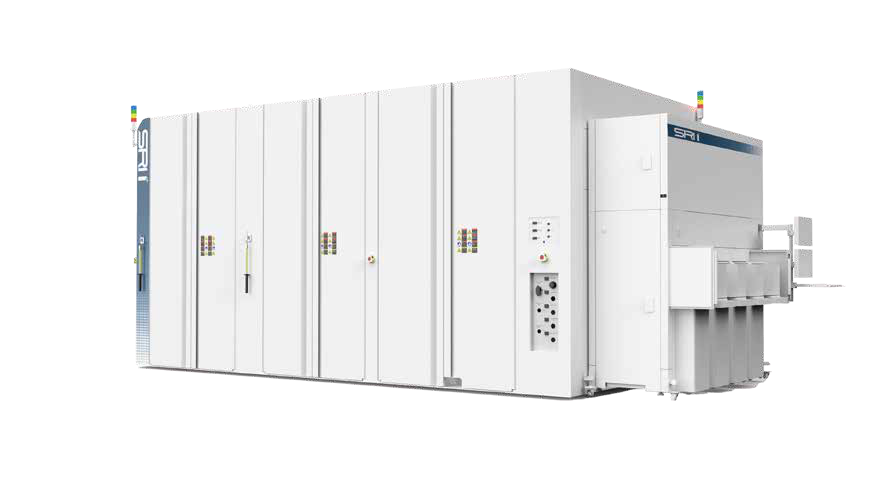

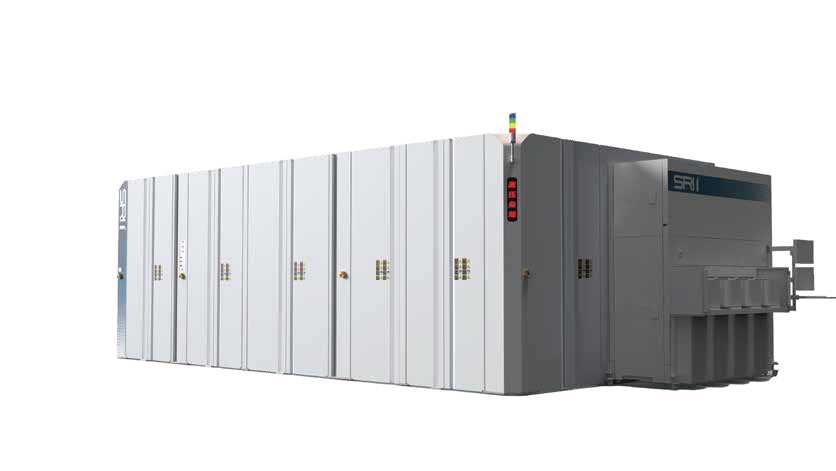

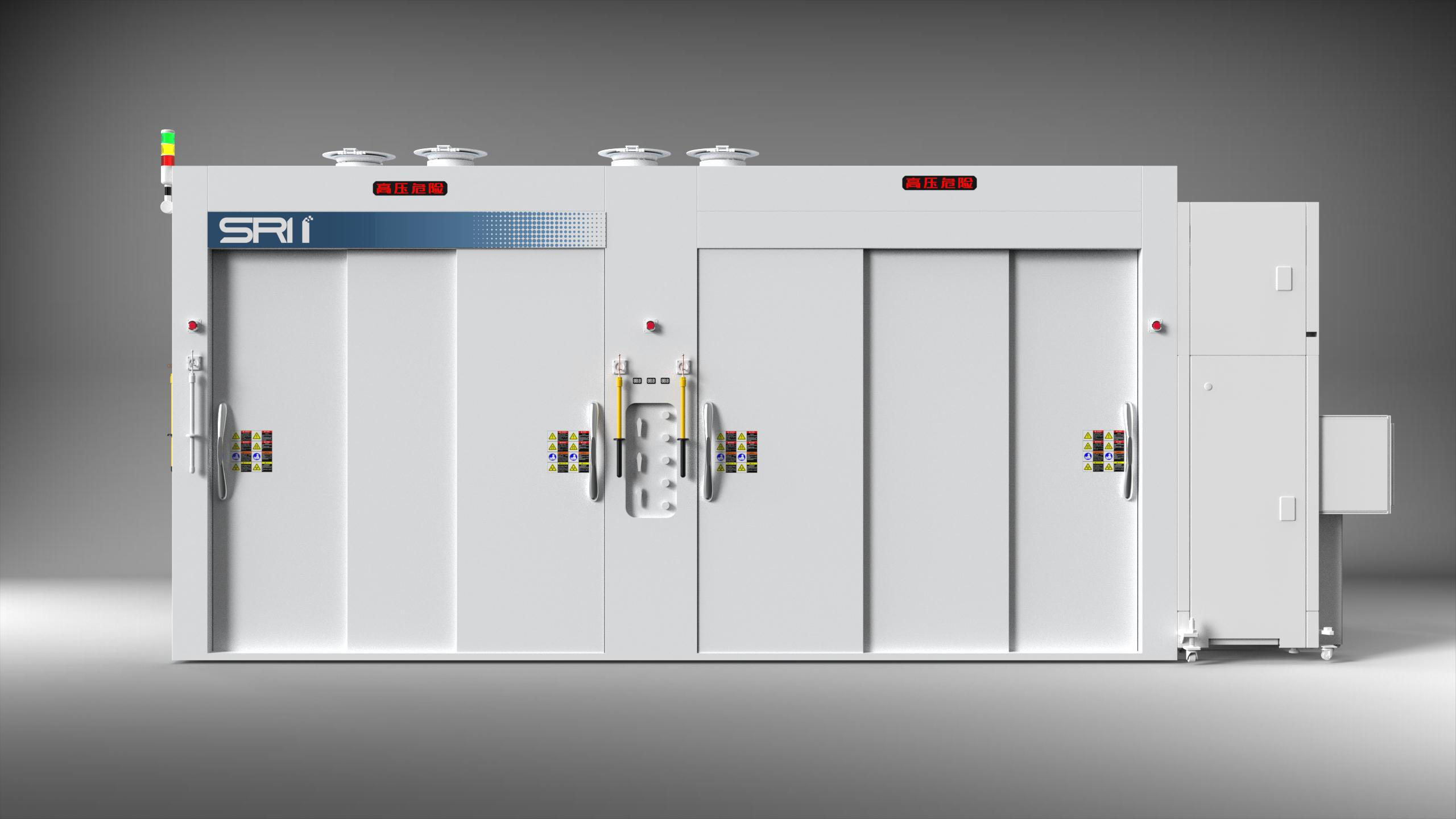

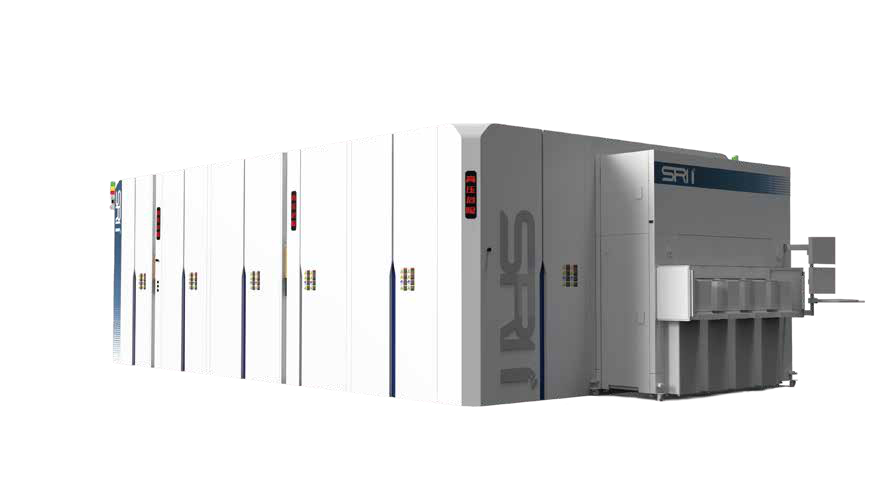

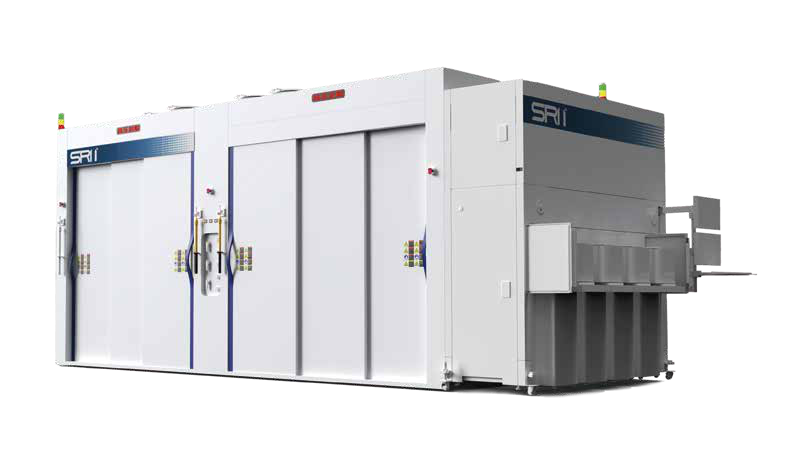

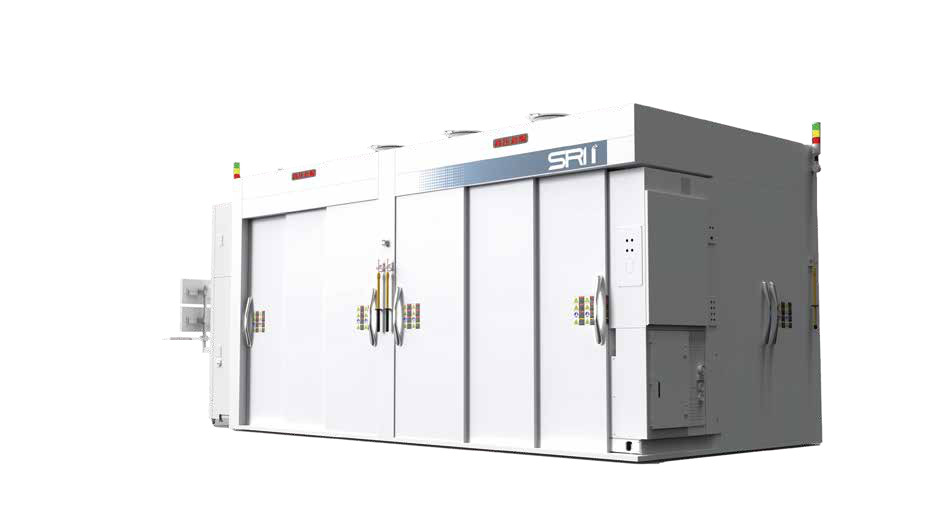

SRII Ion Implanter Series
The SRII Ion Implanter Series offers advanced ion implantation solutions for semiconductor manufacturing, featuring high precision, energy control, and compatibility with various wafer sizes.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions SRII-60 | 6.48×2.76×3.06m |
| Dimensions SRII-200 | 6×3×3.06m |
| Dimensions SRII-1.5M | 9.2×4.2×3m |
| Dimensions SRII-4.5M | 8.9×4.2×2.86m |
| Dimensions SRII-8M | 9.7×4.4×2.86m |
| Dimensions SRII-300 | 7.52×3.19×3.08m |
| Dimensions SRII-4.5M SiC | 8.03×4.6×2.86m |
| Dimensions SRII-200 SiC | 6×3×3.06m |
| Dimensions SRII-300 SiC | 7.52×3.19×3.08m |
| Wafer Size | 200mm/300mm |
| Species | H/He, B/P/As, Al/N/B/P/As |
| Application | SOI materials, logic/memory/power/CIS, SiC |
| Energy Range | 0.2-4500keV |
| Energy Accuracy | ±1% |
| Dose Range | 5E10-1E17 ions/cm² |
| Dose Uniformity | 0.5%-1% |
| Dose Repeatability | 0.5%-1% |
| Max Wafer Temperature | 600°C |
| Autotune Success | 92%-95% |
