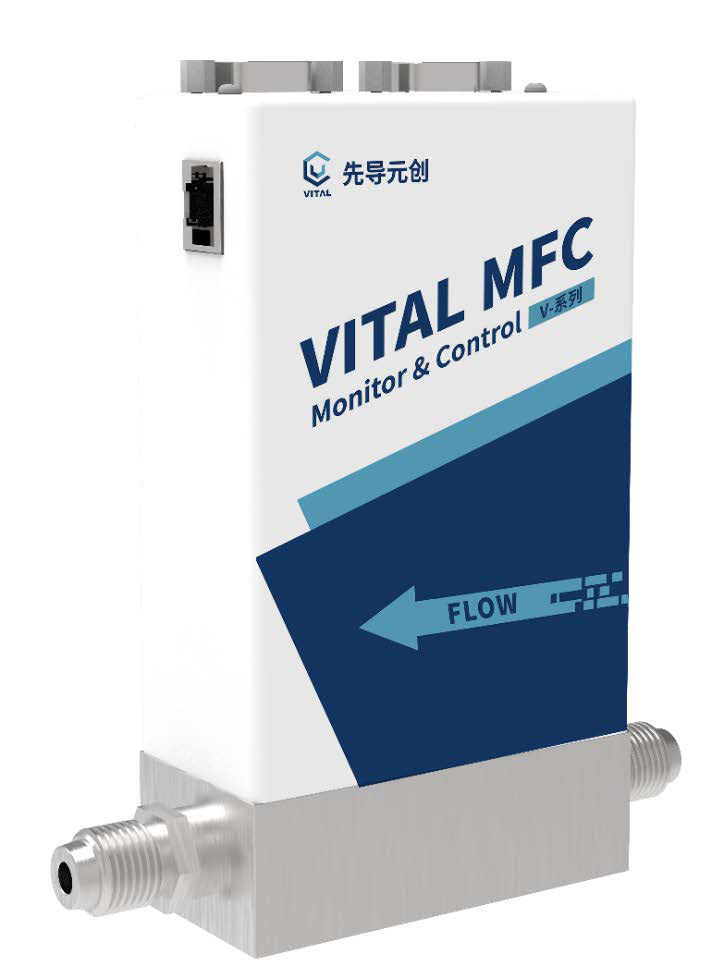

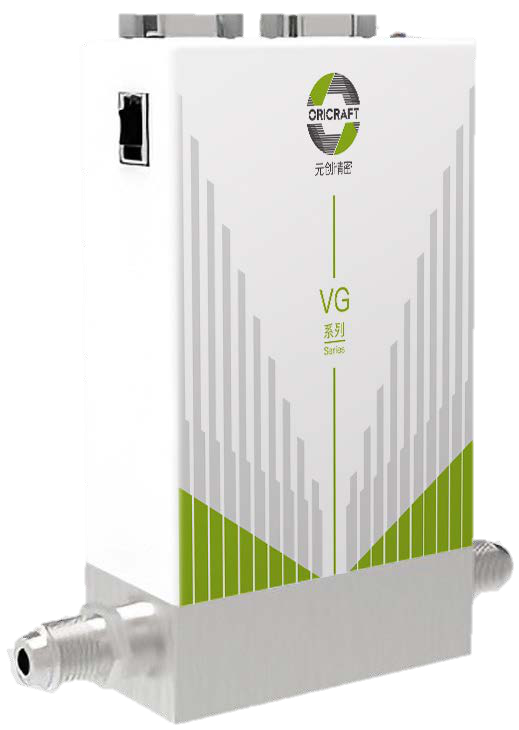

V Series Mass Flow Controller (MFC)
The V Series MFC is designed for precise gas flow control in semiconductor manufacturing and other industries, offering high accuracy, fast response time, and resistance to pressure and temperature variations.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Flow Range | 0.025-2000sccm |
| Control Accuracy | ±0.5%S.P. (0.5%-100%F.S.) |
| Response Time | <100ms (10%-100%F.S.), <300ms (0.5%-10%F.S.) |
| Leak Rate | <10⁻⁹atm·cc/sec (He) |
| Repeatability | ±0.2%S.P. (0.5%-100%F.S.) |
| Operating Pressure Range | 100-300kPaG (14.5-43.5psig) |
| Design Pressure | 2.07MPaG (300psig) |
| Operating Temperature Range | 15-50°C |
| Material | 金属 (耐注塑PCTFE) |
| Surface Treatment | 符合SEMI F19标准 |
| Communication Protocol | EtherCAT, DeviceNet, RS-485 |
| Supply Voltage | 11-24VDC |
| In-Rush Current | <200mA |
