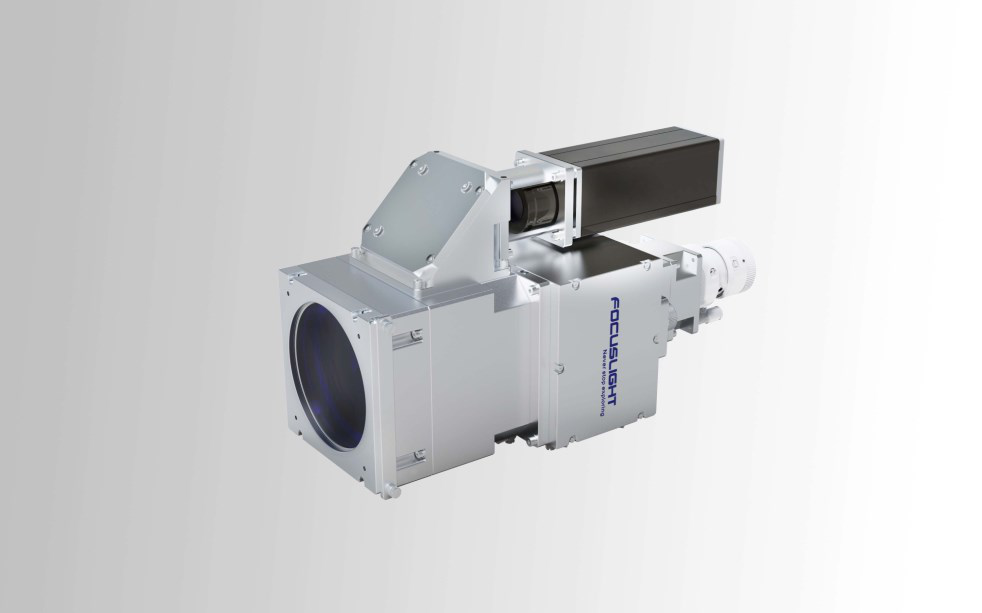

Variable Beam Laser System - Flux H Series
The Flux H Series is a variable beam laser system designed for high-precision applications, offering adjustable beam size, high conversion efficiency, and closed-loop control.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

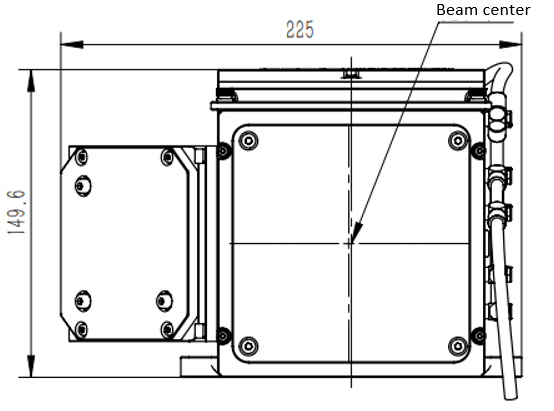

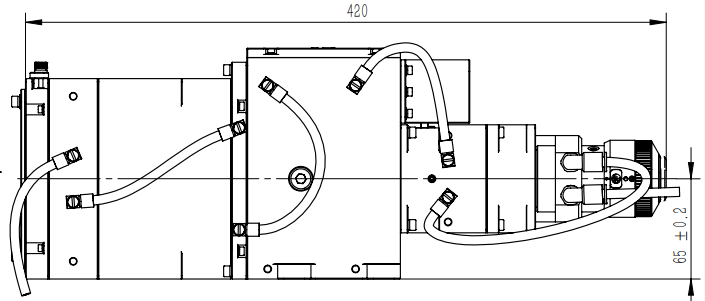

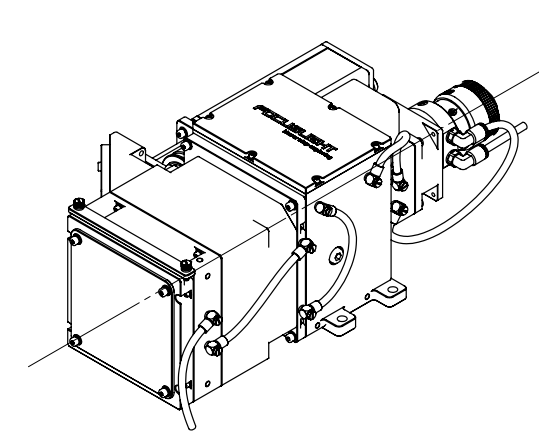

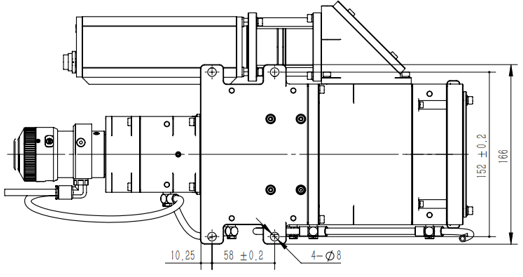

| Laser Process Head Dimensions (Height×Width×Depth) | 150mm×205mm×425mm |
| Max. Weight (Laser Process Head) | 15kg |

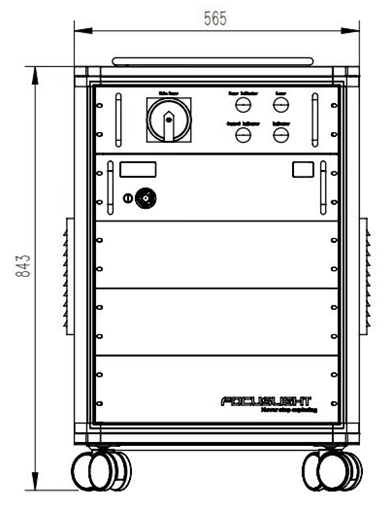

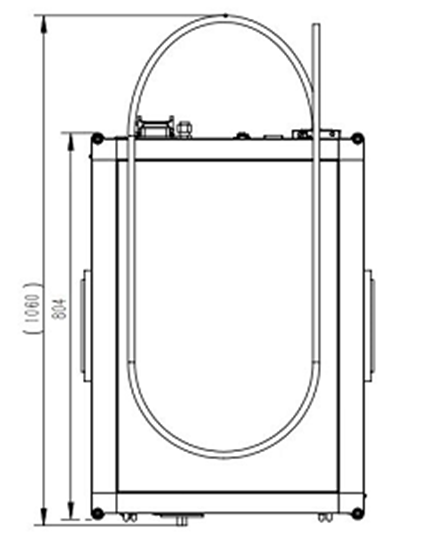

| Control Cabinet Dimensions (Length×Width×Depth) | 804mm×565mm×843mm |
| Max. Weight (Control Cabinet) | 70kg |
| CW-nominal Output Power | 4000W |
| Wavelength | 976±10nm |
| Fiber Diameter | 800μm |
| Fiber Length | 10m |
| Fiber Plug Type | QBH |
| Operating Voltage | 380V |
| Max. Operation Current | 16A |
| Supply Frequency | 50-60Hz |
| Number of Leads | 3L+N+PE |
| Operating Temperature | 5~45°C |
| Storage Temperature | 5~45°C |
| Chiller Type | Water-cooled |
| Detection Wavelength | 2000-2600nm |
| Temperature Measurement Range | 50-800°C |
| Temp. Control Precision | ±5°C |
| Sampling Rate (Standard) | ＞1kHz |
| Interface Type | RS232/Analog I/O |
| Socket Type | DB9/DB25 |
| Flow Parameter | ＞30L/min |
| Cooling Requirements | Two ways (Laser head + control cabinet) |
| Water Temp. | 25±3°C |
| Water Pressure | 3-5.3bar |
| Cooling Capacity | ＞4.5kW |
| Working Distance | 300/400/700mm |
| Focal Depth | 2mm |

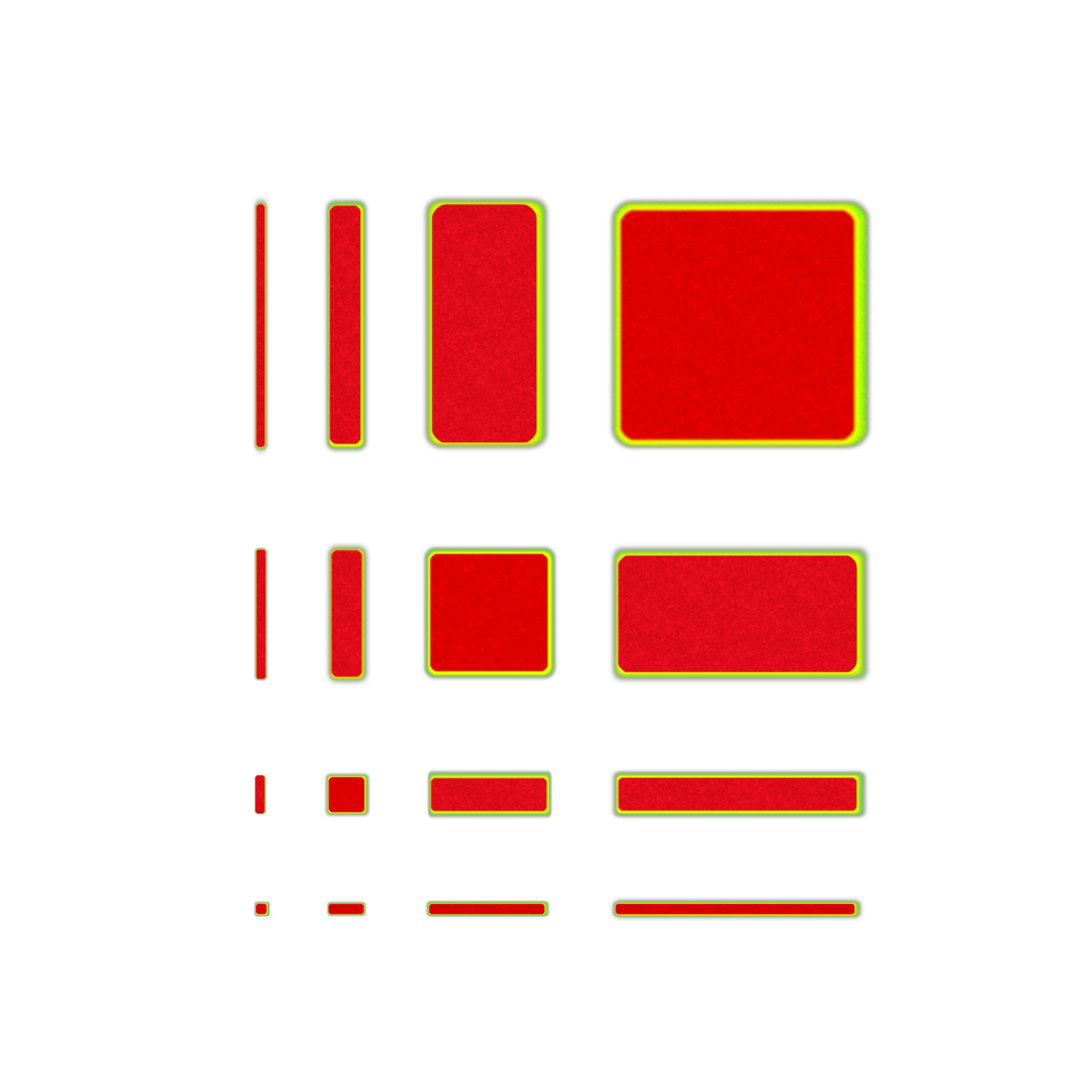

| Line Length X-direction (top-hat) | 2-20/20-100/100-200mm |
| Line Length Y-direction (top-hat) | 2-20/20-100/100-200mm |
| Uniformity of X and Y-direction | ＞95% |
| The optical efficiency | ＞90% |
