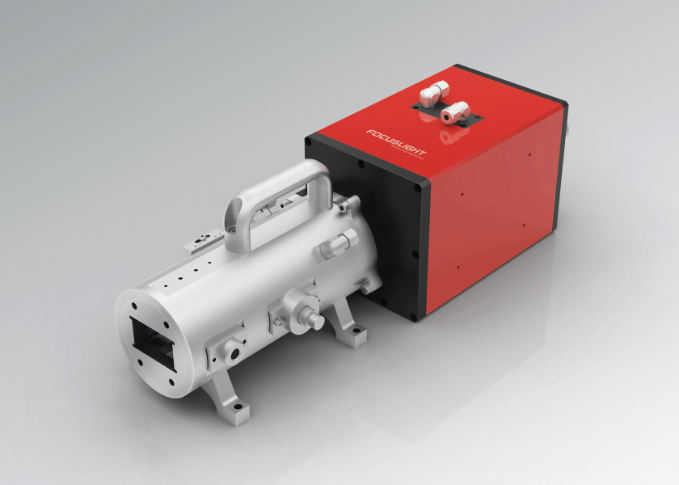

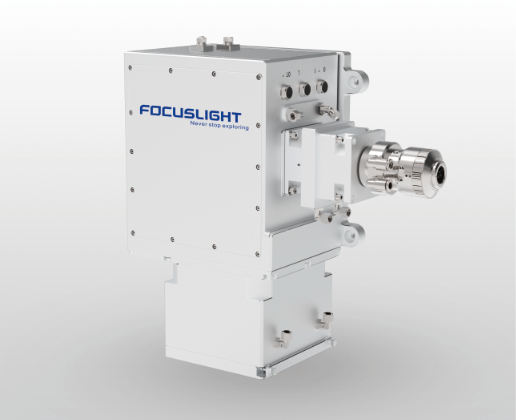

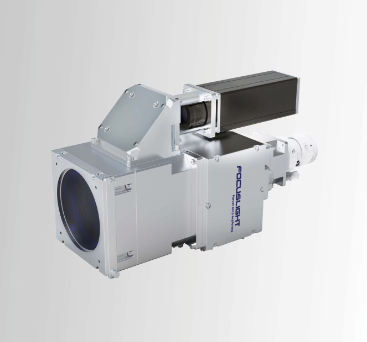

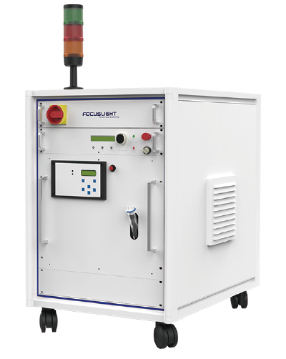

Flux H Series Variable Beam Laser System

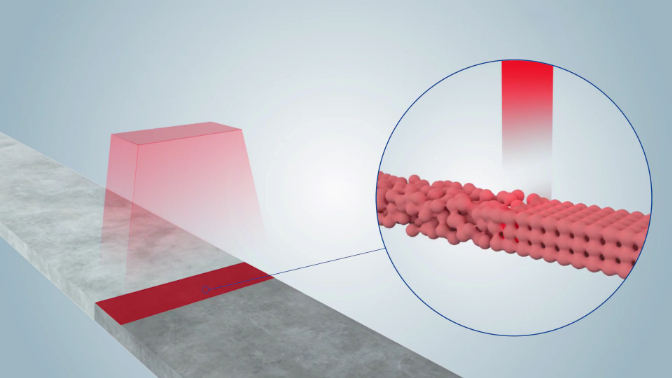

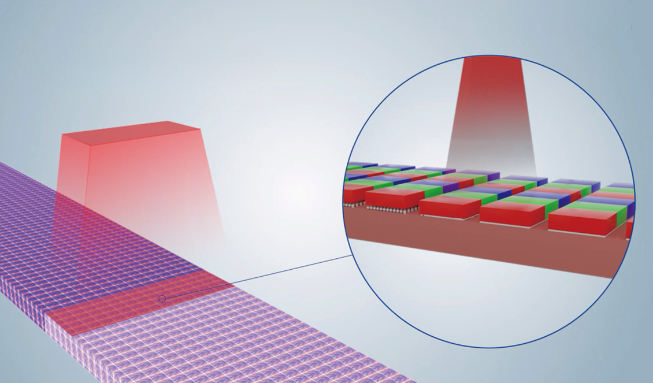

Focuslight's Flux H series variable beam laser system is designed to offer efficient solutions specifically tailored to laser mass soldering and laser chip repair, addressing the major challenges that accompany the development of Mini & Micro LED technology.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Beam Uniformity for mass soldering | ≥97% |
| Beam Uniformity for chip repair | ≥90% |
| Beam Length (both directions) for mass soldering | 2to200mm continuously adjustable |
| Beam Length (both directions) for chip repair | 0.2to5mm fixed |
| Power Output for mass soldering | 4000W,976nm |
| Power Output for chip repair | 30–150W,976nm |
Applications
Key Features
Datasheet
