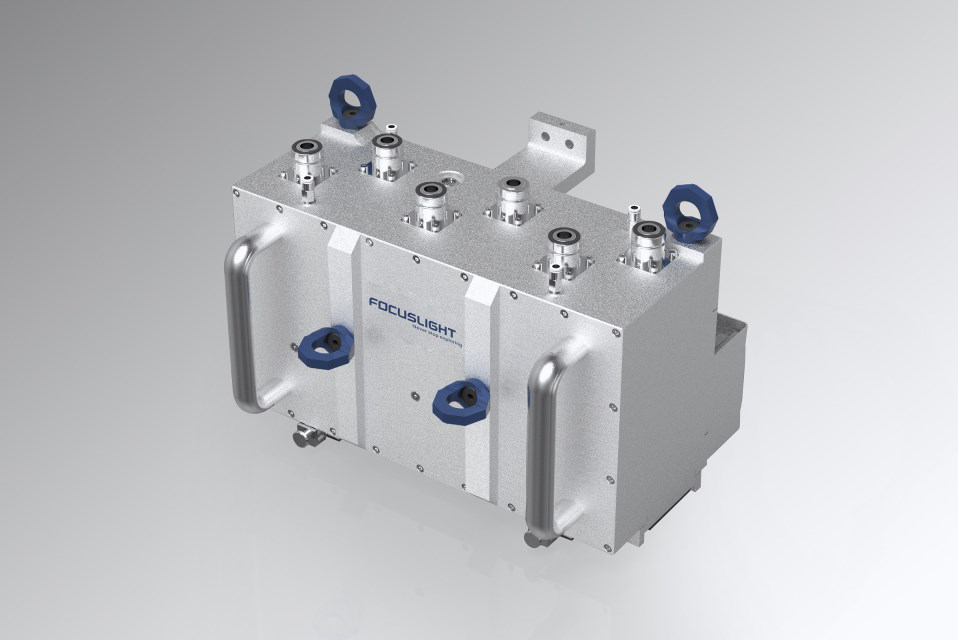

Industrial Laser System for Material Processing - Activation Series
The Activation Series is a high-performance industrial laser system designed for material processing applications. It offers high beam uniformity, power density, reliable control, and protection functions, with an expandable beam length.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Product Code ACT300159 | LM-AIR500-L155×0.4 |
| Product Code ACT300161 | LM-AIR900-L155×0.4 |
| Product Code ACT300162 | LM-AIR1000-L350×0.4 |
| Product Code ACT300163 | LM-AIR1800-L350×0.4 |

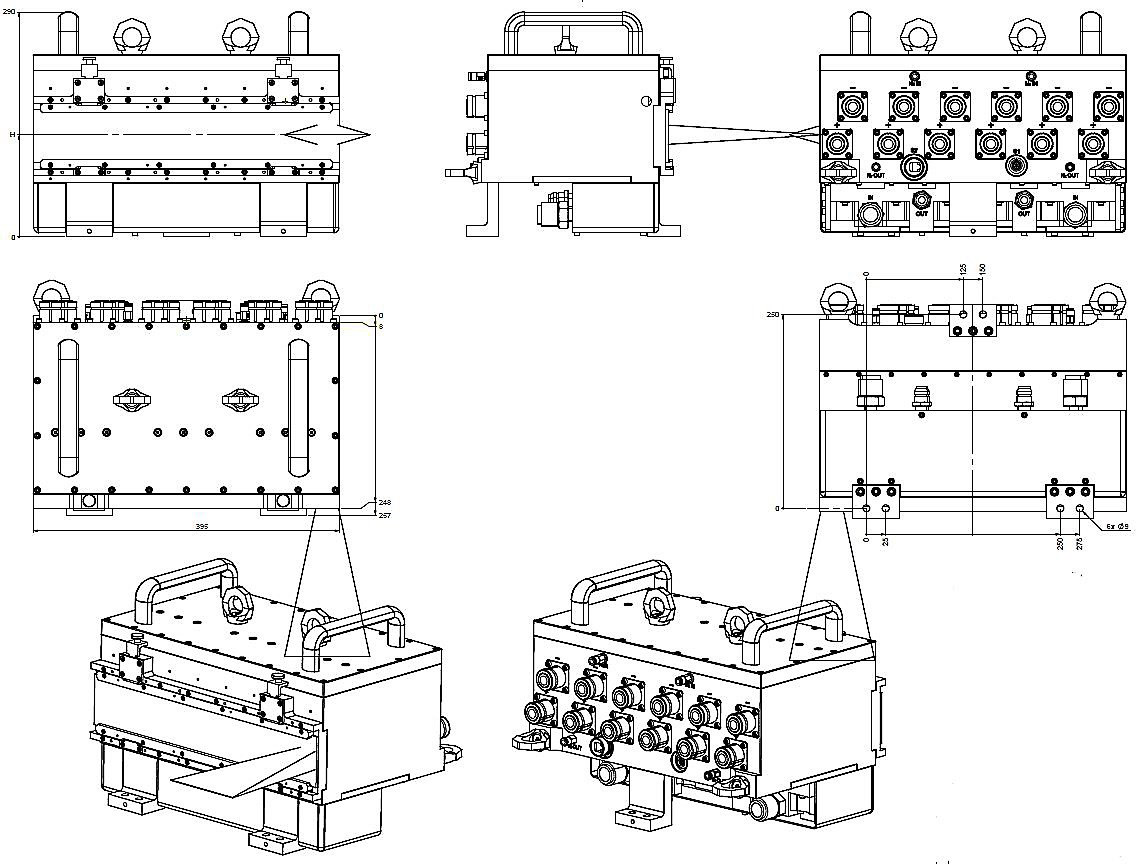

| Dimensions (H×W×D) ACT300159 | 395×305×285mm |
| Dimensions (H×W×D) ACT300161 | 395×305×285mm |
| Dimensions (H×W×D) ACT300162 | 395×305×285mm |
| Dimensions (H×W×D) ACT300163 | 395×305×285mm |
| Max Weight ACT300159 | 24kg |
| Max Weight ACT300161 | 24kg |
| Max Weight ACT300162 | 24kg |
| Max Weight ACT300163 | 24kg |
| CW-nominal Output Power ACT300159 | 5000W |
| CW-nominal Output Power ACT300161 | 9000W |
| CW-nominal Output Power ACT300162 | 10000W |
| CW-nominal Output Power ACT300163 | 18000W |
| Wavelength ACT300159 | 940nm |
| Wavelength ACT300161 | 940nm |
| Wavelength ACT300162 | 940nm |
| Wavelength ACT300163 | 940nm |
| Wavelength Tolerance (±) ACT300159 | 10nm |
| Wavelength Tolerance (±) ACT300161 | 10nm |
| Wavelength Tolerance (±) ACT300162 | 10nm |
| Wavelength Tolerance (±) ACT300163 | 10nm |
| Beam Length: Beam Size at Working Distance ACT300159 | 155mm |
| Beam Length: Beam Size at Working Distance ACT300161 | 155mm |
| Beam Length: Beam Size at Working Distance ACT300162 | 350mm |
| Beam Length: Beam Size at Working Distance ACT300163 | 350mm |
| Beam Length: Line Tolerance (±) ACT300159 | 5mm |
| Beam Length: Line Tolerance (±) ACT300161 | 5mm |
| Beam Length: Line Tolerance (±) ACT300162 | 5mm |
| Beam Length: Line Tolerance (±) ACT300163 | 5mm |
| Beam Length: Beam Profile ACT300159 | TopHat |
| Beam Length: Beam Profile ACT300161 | TopHat |
| Beam Length: Beam Profile ACT300162 | TopHat |
| Beam Length: Beam Profile ACT300163 | TopHat |
| Beam Length: Measured at Level ACT300159 | FW85% |
| Beam Length: Measured at Level ACT300161 | FW85% |
| Beam Length: Measured at Level ACT300162 | FW85% |
| Beam Length: Measured at Level ACT300163 | FW85% |
| Beam Width: Beam Size at Working Distance ACT300159 | 400μm |
| Beam Width: Beam Size at Working Distance ACT300161 | 400μm |
| Beam Width: Beam Size at Working Distance ACT300162 | 400μm |
| Beam Width: Beam Size at Working Distance ACT300163 | 400μm |
| Beam Width: Line Tolerance (±) ACT300159 | 50μm |
| Beam Width: Line Tolerance (±) ACT300161 | 50μm |
| Beam Width: Line Tolerance (±) ACT300162 | 50μm |
| Beam Width: Line Tolerance (±) ACT300163 | 50μm |
| Beam Width: Beam Profile ACT300159 | Gaussian |
| Beam Width: Beam Profile ACT300161 | Gaussian |
| Beam Width: Beam Profile ACT300162 | Gaussian |
| Beam Width: Beam Profile ACT300163 | Gaussian |
| Beam Width: Measured at Level ACT300159 | FW1/e² |
| Beam Width: Measured at Level ACT300161 | FW1/e² |
| Beam Width: Measured at Level ACT300162 | FW1/e² |
| Beam Width: Measured at Level ACT300163 | FW1/e² |
| Uniformity ACT300159 | >90% |
| Uniformity ACT300161 | >90% |
| Uniformity ACT300162 | >90% |
| Uniformity ACT300163 | >90% |
| Working Distance ACT300159 | >180mm |
| Working Distance ACT300161 | >180mm |
| Working Distance ACT300162 | >180mm |
| Working Distance ACT300163 | >180mm |
| Chiller Type ACT300159 | Air-Water |
| Chiller Type ACT300161 | Air-Water |
| Chiller Type ACT300162 | Air-Water |
| Chiller Type ACT300163 | Air-Water |
| Cooling Capacity ACT300159 | >6000W |
| Cooling Capacity ACT300161 | >10000W |
| Cooling Capacity ACT300162 | >12000W |
| Cooling Capacity ACT300163 | >24000W |
| Laser Circuit Water Pressure ACT300159 | 3.5bar |
| Laser Circuit Water Pressure ACT300161 | 3.5bar |
| Laser Circuit Water Pressure ACT300162 | 3.5bar |
| Laser Circuit Water Pressure ACT300163 | 3.5bar |
| Laser Circuit Water Flow ACT300159 | 15L/min |
| Laser Circuit Water Flow ACT300161 | 27L/min |
| Laser Circuit Water Flow ACT300162 | 30L/min |
| Laser Circuit Water Flow ACT300163 | 45L/min |
| Laser Circuit Water Type ACT300159 | DI Water |
| Laser Circuit Water Type ACT300161 | DI Water |
| Laser Circuit Water Type ACT300162 | DI Water |
| Laser Circuit Water Type ACT300163 | DI Water |
| Operating Temperature ACT300159 | 15~35°C |
| Operating Temperature ACT300161 | 15~35°C |
| Operating Temperature ACT300162 | 15~35°C |
| Operating Temperature ACT300163 | 15~35°C |
| Storage Temperature ACT300159 | 15~60°C |
| Storage Temperature ACT300161 | 15~60°C |
| Storage Temperature ACT300162 | 15~60°C |
| Storage Temperature ACT300163 | 15~60°C |
