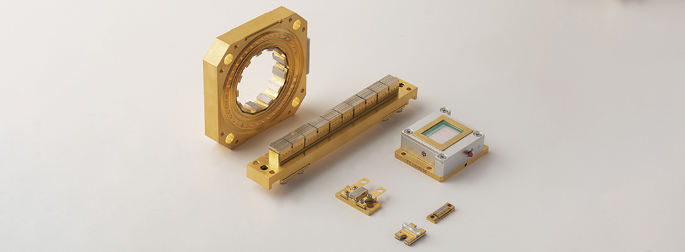

High-Power Diode Lasers and Materials

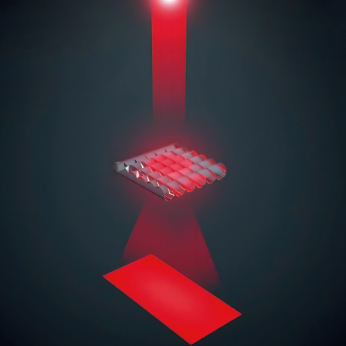

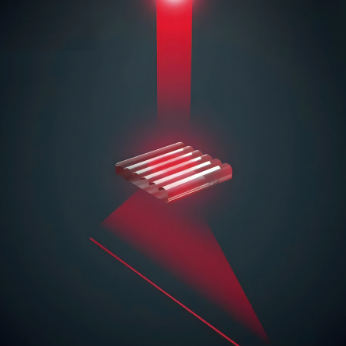

Focuslight specializes in high-power diode lasers and advanced beam shaping technologies, offering reliable and efficient solutions for photonics applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Typical Power Output Single Emitter | 10W 808nm CW, 12W 915/940/976nm CW, 51W 1470nm CW |
| Available Wavelengths Single Emitter | 660/808/915/940/976/1470nm |

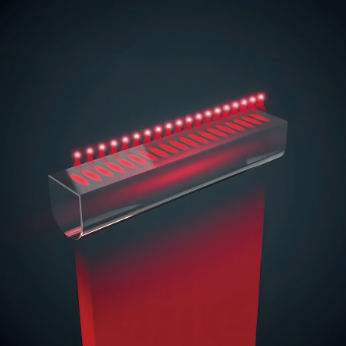

| Fast Axis Collimation Single Emitter | 1:1 or 1:2 optional, customizable |

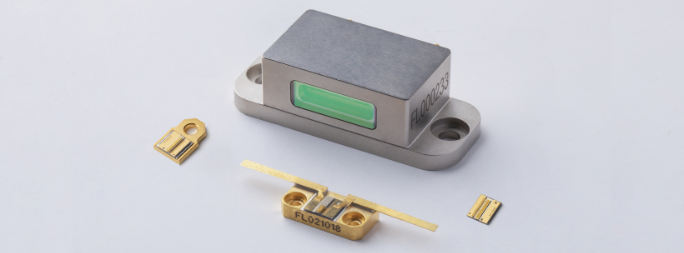

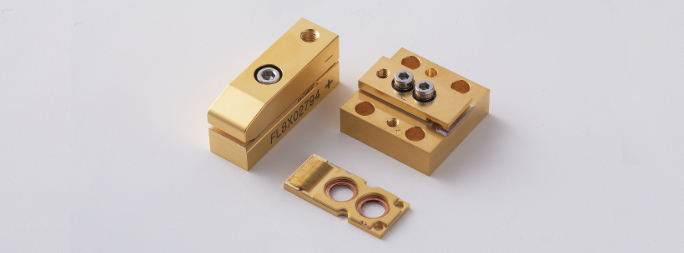

| Typical Power Output Single Bar | 60W 808nm CW, 100W 940/976/980nm CW, 80W 1060nm CW, 30W 1470nm CW |
| Cooling Single Bar | Water-cooled or conduction-cooled |
| Smile Single Bar | <2μm (typical); <1μm (new LCS series) |

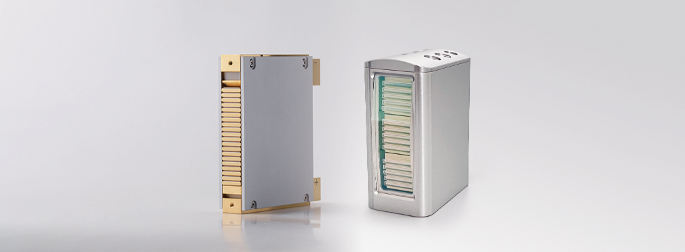

| Typical Power Output Micro-Channel Water Cooled Diode Laser Stacks | 100W/bar CW 808nm, 200W/bar CW 940nm |
| Smile Micro-Channel Water Cooled Diode Laser Stacks | <2μm |
| Number of Bars Micro-Channel Water Cooled Diode Laser Stacks | Up to 60 bars per stack |
| Fast Axis Collimation Micro-Channel Water Cooled Diode Laser Stacks | Optional |
| Typical Power Output G-Stacks | 200-500W/bar OCW, 808/940nm |
| Duty Cycle G-Stacks | 1% or few percent |
| Operation Temperature G-Stacks | -45°C to 60°C |
| Fast Axis Collimation G-Stacks | Optional |
| Power Output Fiber-Coupled Emitter-Based Modules | Up to 30W 808/976/1064nm |
| Fiber Core Diameter Fiber-Coupled Emitter-Based Modules | 105/200μm |
| Numerical Aperture Fiber-Coupled Emitter-Based Modules | 0.15/0.22 |
| Optional Functions Fiber-Coupled Emitter-Based Modules | Fiber detection |
| Optional Functions Fiber-Coupled Emitter-Based Modules | power detection |
| Optional Functions Fiber-Coupled Emitter-Based Modules | pilot beam |
| Power Output Fiber-Coupled Bar-Based Modules | Up to 500W 808/940/976nm |
| Fiber Core Diameter Fiber-Coupled Bar-Based Modules | 100/200/400μm |
| Numerical Aperture Fiber-Coupled Bar-Based Modules | 0.22 |
| Optional Functions Fiber-Coupled Bar-Based Modules | Fiber detection |
| Optional Functions Fiber-Coupled Bar-Based Modules | negative temperature coefficient thermistor |
| Optional Functions Fiber-Coupled Bar-Based Modules | power detection |
| Optional Functions Fiber-Coupled Bar-Based Modules | pilot beam |
| Optional Functions Fiber-Coupled Bar-Based Modules | feedback reflection |
| Optional Functions Fiber-Coupled Bar-Based Modules | VBG |

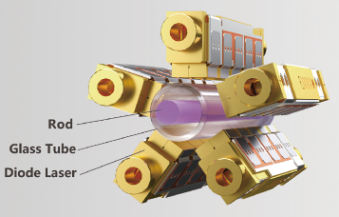

| Typical Power Output Side Pumped Modules | SP17: 30kW GCW, SP18: 5kW GCW |
| Rod Diameter Side Pumped Modules | SP17: 10mm, SP18: 4mm |
| Number of Bars Side Pumped Modules | SP17: 150, SP18: 25 |
| Small Signal Gain Side Pumped Modules | SP17: 55, SP18: 30 |

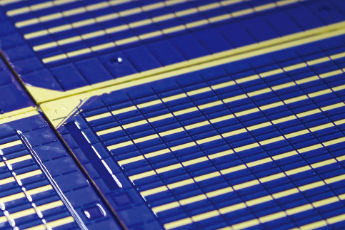

| AuSn Thickness AuSn Pre-deposited AlN Substrates | 4.5±1μm |
| Melting Point AuSn Pre-deposited AlN Substrates | 280-320°C |
| Thermal Resistance AuSn Pre-deposited AlN Substrates | ≤2kW |
| AuSn Thickness AuSn Pre-deposited CuW Substrates | 6.0±1μm |
| Melting Point AuSn Pre-deposited CuW Substrates | 280-320°C |
| AuSn Deposition Side AuSn Pre-deposited CuW Substrates | Single/double sided |
