Slow Axis Collimator

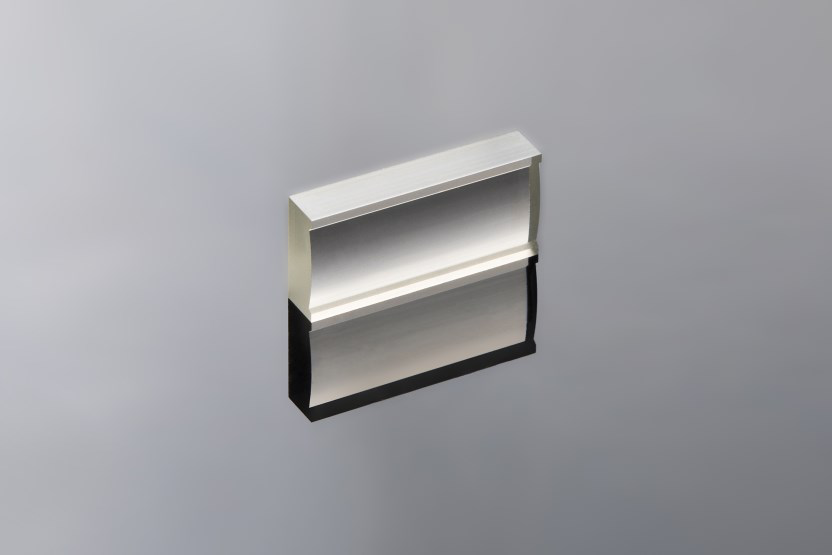

A cylindrical lens designed for collimating the slow axis of diode lasers.
Save to Favorites
Overview
Specifications

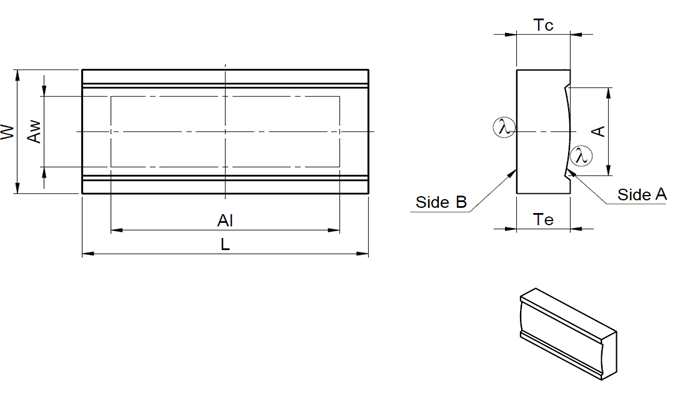

| Parameter | Value |
|---|---|
| Length (L) | 15.0±0.05mm |
| Width (W) | 7.0±0.05mm |
| Thickness (Te) | 2.81±0.05mm |
| Clear Aperture (A x Aeff) | 12.0x3.0mm² |
| Refractive Index @808nm | 1.823 |
| NA | <0.2 |
| Standard Coating - AR | 790-990nm |
| Transmission | >99% |
| Surface Imperfections (DIN ISO 10110-7) | 5/5×0.063; C4×0.25; L4×0.063; E0.5 |
