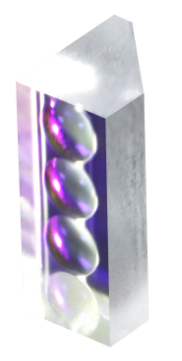

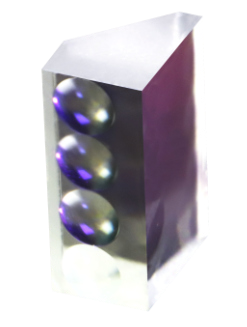

Microprism Lens Array
Microprism Lens Array is designed with precision-molded prism geometry and monolithic all-glass construction, ensuring high optical performance and manufacturing efficiency.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

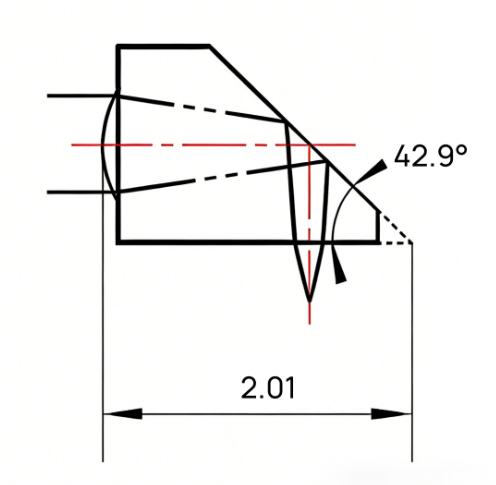

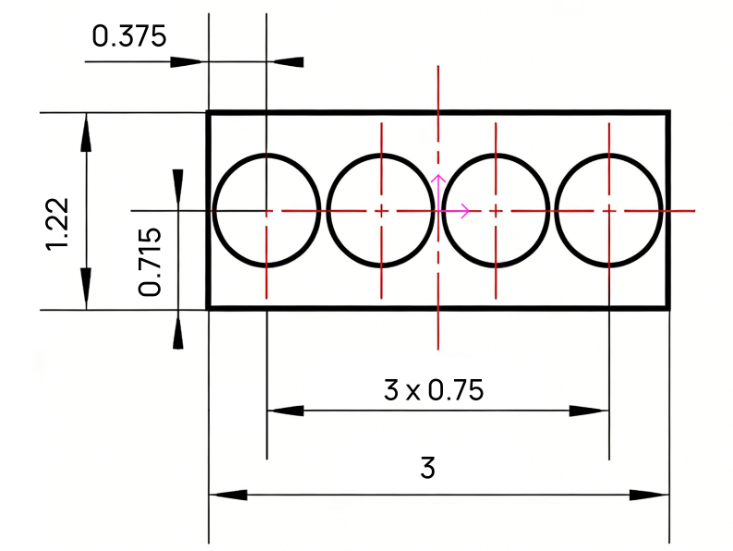

| Outer Dimensions | 3×2.01×1.22mm (Customizable upon request) |
| Designed Wavelength | 1310/1550nm |
| NA | 0.15~0.25 |
| Working Distance | 0.62 |
| Optical Coating | R<0.2%@1260-1340nm |
Applications
Key Features
Datasheet
