2050nm 1x2/2x2 Dual-Axis-Operation Polarization-Maintaining Fiber Coupler MCPMFC-12-2050-50-L-B-P19-10-L-FA
Mchlight glass-plate polarization-maintaining fiber couplers (PM Fiber Filter Coupler) support operation on both axes. Optical-path adjustment enables 0.1-55% splitting. Couplers are available at various wavelengths and splitting ratios over 780-2050nm, for fiber communication, fiber lasers and fiber amplifiers.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating wavelength [1x2 (2x2); Temperature measurement ambient conditions: 25℃] | 2050 nm |
| Bandwidth [1x2 (2x2); Temperature measurement ambient conditions: 25℃] | ±40 nm |
| Splitting ratio [1x2 (2x2); Temperature measurement ambient conditions: 25℃] | 01/99~50/50 |
| max [1x2 (2x2); Temperature measurement ambient conditions: 25℃; max; The above data exclude connectors ；@1x2,1.5@2x2] | 1.2@1x2,1.5@2x2 |
| min [1x2 (2x2); Temperature measurement ambient conditions: 25℃; min; The above data exclude connectors ；@1x2,20@2x2] | 22@1x2,20@2x2 |
| Return loss [1x2 (2x2); Temperature measurement ambient conditions: 25℃; The above data exclude connectors] | 50 dB |
| Fiber type [1x2 (2x2); The Fiber Slow Axis Is Aligned by Default with the Key] | PM1550/PM1950 |
| Power Level [1x2 (2x2); Temperature measurement ambient conditions: 25℃] | 0.5~20 optional |
| Operating axis [1x2 (2x2)] | Dual-axis Operating |
| Connector [1x2 (2x2)] | FC/APC or other |
| Fiber length [1x2 (2x2)] | 1 m |

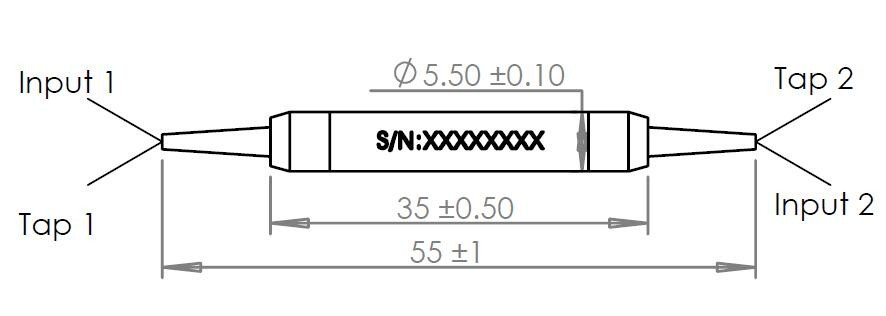

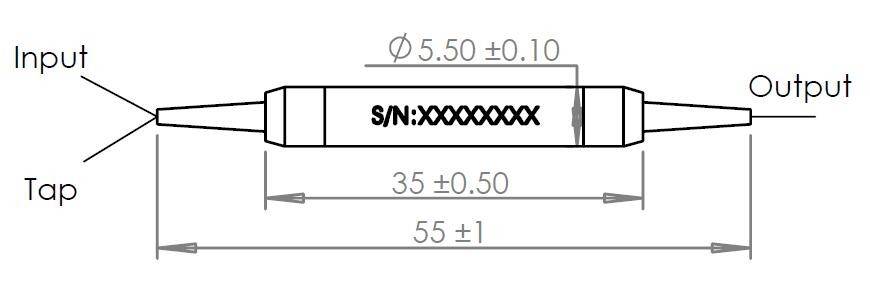

| Package dimensions [1x2 (2x2)] | φ5.5x35 |
| Operating temperature [1x2 (2x2)] | -5~+70 ℃ |
| Storage temperature [1x2 (2x2)] | -40~+85 ℃ |
