Optical mirror

Optical mirror

Supplier
Astarphotonics
Category
Optical Mirrors
Origin
China

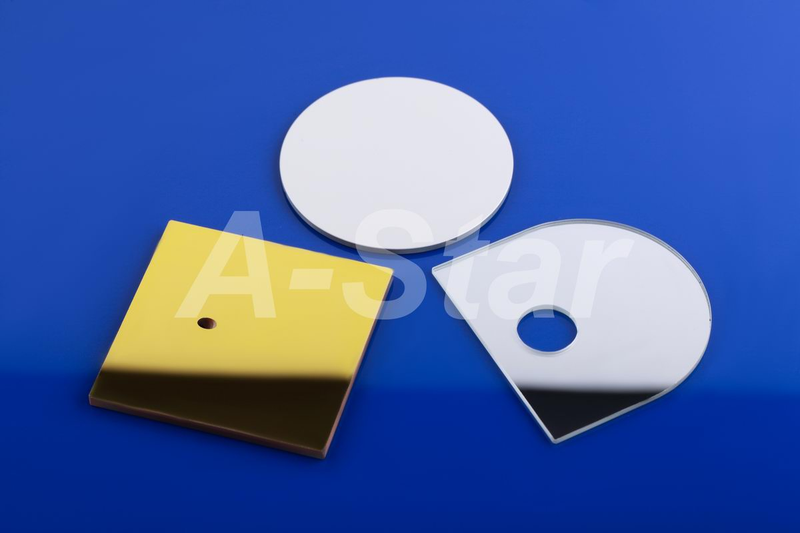

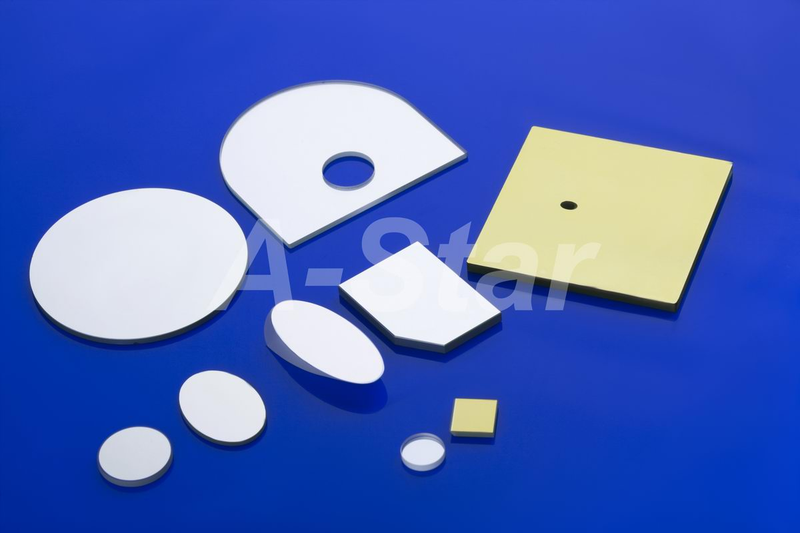

An optical mirror is a smooth, highly reflective element that uses reflection to converge, diverge or redirect beams. Common plane mirrors use silver- or aluminum-coated flat glass. Curved mirrors magnify or reduce images and focus or reflect them. Mirrors are widely used in microscopes, lasers, cameras and industrial machinery. Coatings can be customized.

Specification Snapshot
表面质量 [一般精度]
60/40
表面质量 [高精度]
10/5
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

An optical mirror is a smooth, highly reflective element that uses reflection to converge, diverge or redirect beams. Common plane mirrors use silver- or aluminum-coated flat glass. Curved mirrors magnify or reduce images and focus or reflect them. Mirrors are widely used in microscopes, lasers, cameras and industrial machinery. Coatings can be customized.

Specifications

ParameterValue
尺寸公差 [一般精度]+0.0/-0.1mm
尺寸公差 [高精度]+0.0/-0.01mm
厚度公差 [一般精度]±0.05mm
厚度公差 [高精度]±0.005mm
表面质量 [一般精度]60/40
表面质量 [高精度]10/5
有效通光口径 [一般精度]80%
有效通光口径 [高精度]95%
面型 λ [一般精度 / @633nm]1λ@633nm
面型 λ [高精度 / @633nm]λ/10@633nm
平行度 [一般精度]3′
平行度 [高精度]3″
镀膜 [一般精度]HR coating, aluminum coating, silver coating, gold coating, etc.
镀膜 [高精度]HR coating, aluminum coating, silver coating, gold coating, etc.

Datasheet

Please provide your email to download the datasheet.

Your name
Email Address

Invalid email format. Please try again.

Send Request

Supplier Information

As
Astarphotonics
View Supplier →
A-Star Photonics Inc, which specializes in Projection Display Optical Elements, Crystals Material, Precision Optics & Optical Communication Components, is a high-tech enterprise integrated R&D, manufacturing, and selling, A-Star is also Rated as “advanced enterprise of a small giant of science and technology” in Fujian Province. A-Star Photonics Inc. was found in 2011. Now A-Star has 13000 square meters of the factory building and more than 200 staffers. The biggest advantage of A-star is to have a strong team consist of experienced experts and to have a whole set of clean and dust-free workshops, automated ultrasonic cleaning production lines, most advanced production equipment, and test instruments to ensure quality. To offer value maximization for all clients is our root of existence. A-Star Products include: High-precision Lenses,Plano Convex and Plano Concave Lens, C-Lens, D-Lens, G-Lens, & Fiber Pigtail; High-accuracy Windows, BBO/LBO NLO crystals, YVO4 crystal, Nd: YVO4 laser chip, LN Wedge, KTP+ND: YVO4(DPM); Wave plates, High-precision Prism, Glan Polarizer Prism, Polarizing Beamsplitters, NPBS, Laser Mirrors & Filters; . Which selling Domestic and Foreign, were widely used in Laser Industry, Laser Display, Precision Instruments, Optical Communication & Semiconductor field, Micro-measurement System, Building Surveying & mapping, Nondestructive Detection, Medical Devices, Automation Equipment, High-energy Laser Equipment and so on. North America, Europe, Israel, Japan, and Korea are the main customer base areas we exported. A-Star has always been oriented by Modern Enterprise Management with continuing research, management innovation to establish a solid and feasible Modern Enterprise Management System. To enhance our core competitiveness, A-Star self-developed the enterprise management system ERP, which is completely realized the management in selling, purchasing, producing, financing & shipping and ensures the high efficiency of management and production as well as the quality traceability, let A- Star Photonics be managing efficiently. Best Reputation, Recognition, and Reliance from the customer is our foothold to the marketing. In the future, A-Star will keep adhering to Persistent improving and surpassing the peak to make us become one of the global brands which are one dream of all A-Star’s. Making technology change our lives is all A-Star’s pursuit. A- Star Photonics Inc. is working hard to be a new bright star in the field of photonics.
