Laser Noise and Linewidth Measurement Systems Linewidth / Noise measurement instrument LD100
Save to Favorites

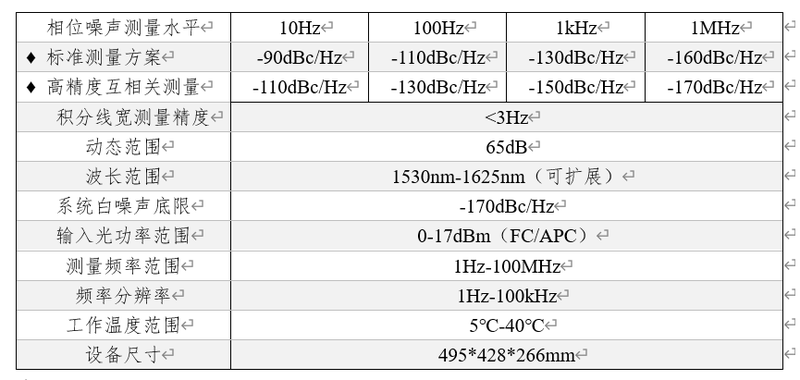

Specifications
| Parameter | Value |
|---|---|
| 相位噪声测量水平-标准测量方案 [10Hz] | -90dBc/Hz |
| 相位噪声测量水平-标准测量方案 [100Hz] | -110dBc/Hz |
| 相位噪声测量水平-标准测量方案 [1kHz] | -130dBc/Hz |
| 相位噪声测量水平-标准测量方案 [1MHz] | -160dBc/Hz |
| 相位噪声测量水平-高精度互Related Categories测量 [10Hz] | -110dBc/Hz |
| 相位噪声测量水平-高精度互Related Categories测量 [100Hz] | -130dBc/Hz |
| 相位噪声测量水平-高精度互Related Categories测量 [1kHz] | -150dBc/Hz |
| 相位噪声测量水平-高精度互Related Categories测量 [1MHz] | -170dBc/Hz |
| 积分线宽测量精度 | <3Hz |
| 波长范围 [可扩展 / 可定制] | 1530nm-1625nm (expandable);960nm-1060nm (customizable) |
| 系统白噪声底限 | -160dBc/Hz |
| 输入光功率范围 [FC/APC] | 0-17dBm（FC/APC） |
| 测量频率范围 | 1Hz-100MHz |
| 频率分辨率 | 1Hz-100kHz |
| 工作温度范围 | 5℃-40℃ |
| Equipment尺寸 | 495 mm × 428 mm × 266 mm |
Key Features
