Reflection spectrum measurement system

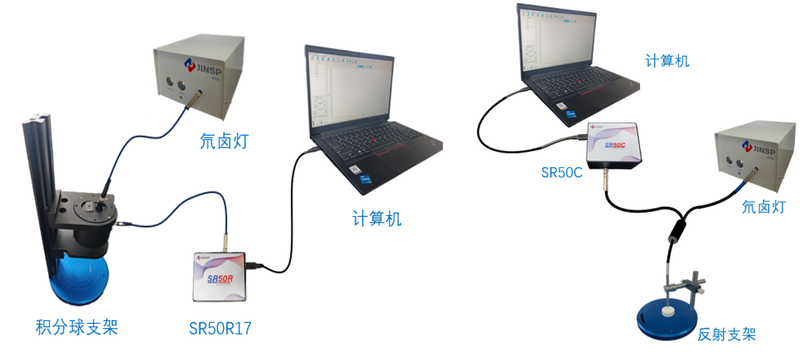

Jianzhi Technology's reflectance spectroscopy system uses the reflection and absorption characteristics of materials. A spectrometer, light source, fiber, test holder and computer produce spectra describing sample surfaces and optical properties, enabling objective, quantitative characterization. A stable ultraviolet-visible-near-infrared source works with the Jianzhi SR50C/SR50R17 miniature fiber spectrometer, supporting 200~1000nm/900-1700nm. An integrating-sphere holder or reflectance holder can be selected as required. Different configurations accommodate different measurement conditions across many industries.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| 光源-波长范围 [光源：氘卤灯 / 氘灯 / 卤素灯] | 180 - 400 nm（ Deuterium lamp ） 360 - 2500 nm （ Halogen lamp ） |
| 光源-波长范围 [光源：卤钨灯] | 350 - 2500 nm |
| 光源-功率 [光源：氘卤灯 / 氘灯 / 卤素灯] | 30 W（ Deuterium lamp ）20 W（ Halogen lamp ） |
| 光源-功率 [光源：卤钨灯] | 20W |
| 光源-寿命 [光源：氘卤灯] | 2000 hr |
| 光源-寿命 [光源：卤钨灯] | 10000 hr |
| 光源-稳定性 [光源：氘卤灯] | <0.01%/hr |
| 光源-稳定性 [光源：卤钨灯] | <0.2%/hr |
| 光源-尺寸 [光源：氘卤灯] | 200 mm × 145 mm × 110 mm |
| 光源-尺寸 [光源：卤钨灯] | 150 mm × 75 mm × 50 mm |
| 光源-供电 [光源：氘卤灯] | 85~250 V AC 50~60 HZ |
| 光源-供电 [光源：卤钨灯] | 85~250 V AC 50~60 HZ |
| 光谱仪-波长范围 [光谱仪：SR50C] | 200 - 1000 nm |
| 光谱仪-波长范围 [光谱仪：SR50R17] | 900 - 1700nm |
| 光谱仪-数值孔径 [光谱仪：SR50C] | 0.14 |
| 光谱仪-数值孔径 [光谱仪：SR50R17] | 0.13 |
| 光谱仪-分辨率 [光谱仪：SR50C / @25μm] | 2.4nm@25μm |
| 光谱仪-分辨率 [光谱仪：SR50R17 / @25μm] | 6.5nm@25μm |
| 光谱仪-ADC位深 [光谱仪：SR50C] | 16bit |
| 光谱仪-ADC位深 [光谱仪：SR50R17] | 16bit |
| 光谱仪-供电 [光谱仪：SR50C] | 5 V |
| 光谱仪-供电 [光谱仪：SR50R17] | 5 V |
| 光谱仪-探测器 [光谱仪：SR50C] | Hamamsu S11639 |
| 光谱仪-探测器 [光谱仪：SR50R17] | Linear-array InGaAs |
| 光纤-长度 [光纤：石英光纤] | 0.8m |
| 光纤-长度 [光纤：Y型光纤] | 1m |
| 光纤-芯径 [光纤：石英光纤] | 100 - 600 μm |
| 光纤-芯径 [光纤：Y型光纤] | 100 - 600 μm;1~7 cores optional |
| 光纤-波长范围 [光纤：石英光纤] | 190 - 2500nm |
| 光纤-波长范围 [光纤：Y型光纤] | 190 - 2500 nm |
| 光纤-光纤接口 [光纤：石英光纤] | SMA905 |
| 光纤-光纤接口 [光纤：Y型光纤] | SMA905 |
| 支架-尺寸 [支架：反射支架] | Base 150mm Diameter ， Thickness 15mm |
| 支架-尺寸 [支架：积分球支架] | Inner chamber diameter 30mm; sample-port diameter 6mm |
| 支架-接口 [支架：反射支架] | Probe mounting hole6.35mm |
| 支架-接口 [支架：积分球支架] | SMA905 |
| 支架-材质 [支架：反射支架] | Black anodized aluminum |
| 支架-材质 [支架：积分球支架] | PTFE Material |
| 标准板-材质 [标准板：漫反射白板] | PTFE Material |
| 标准板-材质 [标准板：反射铝镜] | Fused silica Coating |
| 标准板-反射率 [标准板：漫反射白板] | ＞98% |
| 标准板-反射率 [标准板：反射铝镜] | ＞85% |
