Fiber optic demodulator 67GHz DPSK Demodulator Optoplex DI-C1MLCS010

测试方式: Uses metal strips to divide the charge cloud and defines the event position from electrical-signal time differences 空间分辨率: Submillimeter 计数率: Can achieve >100kHz with an electronics system

The ATOM-DXL Delay-line anode determines event position from signal delays and provides good spatial and temporal resolution.

类型: With Skeleton, Without Skeleton, Semi-skeleton, Custom-shaped, Bonded 外形尺寸: 5～150 mm 绕制层数: 1～120 layers

波长范围(C波段) [通用DQPSK标准表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格]: 1527 to1567 nm 波长范围(L波段) [通用DQPSK标准表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格]: 1567 to1607 nm 自由光谱范围(FSR) [通用DQPSK标准规格表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格 / 标称数据速率的~1/2；仅列出典型值 / 所列数值为典型示例，客户可指定。]: typical:10.7,21.5,28 or32.5

Optoplex’s Optical DQPSK demodulator converts differential quadratural phase modulation to amplitude modulation over the entire C+L band in support of data transmission rates of 20 or 40 Gb/s. DQPSK demodulator is designed for the next generation optical communications systems utilized in commercial, defense and space exploration markets. The device plays a key role in improving signal quality and performance to meet the expanding demand for higher data rates and more complex transmission formats within current and next generation systems without major capital expenditure. DQPSK demodulator uses half the transmission rate to achieve the same data rate (20-Gb/s system for 40-Gb/s data rate, with four phase states as compared to two in DPSK format). A lower transmission rate saves cost on many other components and electronics and is more tolerant to dispersion. 20-Gb/s system is the highest transmission rate possible for the 50-GHz channel spacing system. Optoplex’s fully integrated DQPSK demodulator combines a power splitter and both I- and Q-arms.

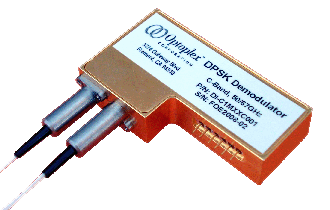

Optical DPSK Demodulator, also known as Delay Line Interferometer (DLI), converts phase modulation to amplitude modulation over the entire C+L band in support of data transmission rates of 2.5, 10 or 40 Gb/s. The DPSK Demodulator is designed for phase modulated optical communication systems utilized in commercial, defense and space exploration markets. The DPSK device plays a key role in improving signal quality and performance to meet the expanding demand for higher data rates and more complex transmission formats within current and next generation systems without major capital expenditure.
