Fiber optic demodulator 21.9GHz DQPSK Demodulator Optoplex DI-C0KLCC002
Optoplex’s Optical DQPSK demodulator converts differential quadratural phase modulation to amplitude modulation over the entire C+L band in support of data transmission rates of 20 or 40 Gb/s. DQPSK demodulator is designed for the next generation optical communications systems utilized in commercial, defense and space exploration markets. The device plays a key role in improving signal quality and performance to meet the expanding demand for higher data rates and more complex transmission formats within current and next generation systems without major capital expenditure. DQPSK demodulator uses half the transmission rate to achieve the same data rate (20-Gb/s system for 40-Gb/s data rate, with four phase states as compared to two in DPSK format). A lower transmission rate saves cost on many other components and electronics and is more tolerant to dispersion. 20-Gb/s system is the highest transmission rate possible for the 50-GHz channel spacing system. Optoplex’s fully integrated DQPSK demodulator combines a power splitter and both I- and Q-arms.
Save to Favorites
Overview
Specifications

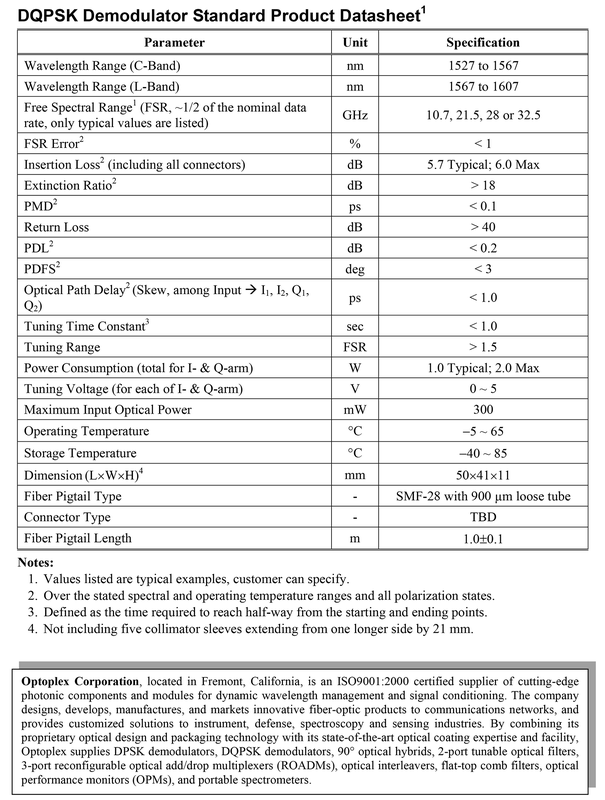

| Parameter | Value |
|---|---|
| 波长范围(C波段) [通用DQPSK标准表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格] | 1527 to1567 nm |
| 波长范围(L波段) [通用DQPSK标准表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格] | 1567 to1607 nm |
| 自由光谱范围(FSR) [通用DQPSK标准规格表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格 / 标称数据速率的~1/2；仅列出典型值 / 所列数值为典型示例，客户可指定。] | typical:10.7,21.5,28 or32.5 |
| FSR误差 [通用DQPSK标准表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格 / 覆盖所列光谱范围、工作温度范围及所有偏振态。] | <1 % |
| 插入损耗 [通用DQPSK标准规格表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格 / 包括所有连接器 / 在所述光谱范围、工作温度范围 and 所有偏振态下。] | typical:5.7 dB；max:6.0 dB |
| 消光比 [通用DQPSK标准表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格 / 覆盖所列光谱范围、工作温度范围及所有偏振态。] | >18 dB |
| PMD [通用DQPSK标准表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格 / 覆盖所列光谱范围、工作温度范围及所有偏振态。] | <0.1 ps |
| 回波损耗 [通用DQPSK标准表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格] | >40 dB |
| PDL [通用DQPSK标准表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格 / 覆盖所列光谱范围、工作温度范围及所有偏振态。] | <0.2 dB |
| PDFS [通用DQPSK标准表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格 / 覆盖所列光谱范围、工作温度范围及所有偏振态。] | <3 deg |
| 光程延迟 [通用DQPSK标准规格表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格 / Input→I₁,I₂,Q₁,Q₂之间的时延偏差 / 在所述光谱范围、工作温度范围 and 所有偏振态下。] | <1.0 ps |
| 调谐时间常数 [通用DQPSK标准规格表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格 / 定义为从起点到终点达到中间位置所需的时间。] | <1.0 sec |
| 调谐范围 [通用DQPSK标准表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格] | >1.5 FSR |
| 功耗 [通用DQPSK标准规格表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格 / I臂 and Q臂的总计] | typical:1.0 W；max:2.0 W |
| 调谐电压 [通用DQPSK标准规格表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格 / I臂 and Q臂分别对应] | 0~5 V |
| 最大输入光功率 [通用DQPSK标准表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格] | 300 mW |
| 工作温度 [通用DQPSK标准表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格] | -5~65 °C |
| 储存温度 [通用DQPSK标准表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格] | -40~85 °C |
| 尺寸(L×W×H) [通用DQPSK标准规格表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格 / 不包括从一 complete plans长边伸出21mm的五 complete plans准直器套筒。] | 50 mm × 41 mm × 11 mm |
| 光纤尾纤类型 [通用DQPSK标准表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格] | SMF-28 with900µm loose tube |
| 光纤尾纤长度 [通用DQPSK标准表中的示例；所列数值为典型示例，客户可指定；尚未证实为DI-C0KLCC002的确切规格] | 1.0±0.1 m |
Applications
Key Features
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
