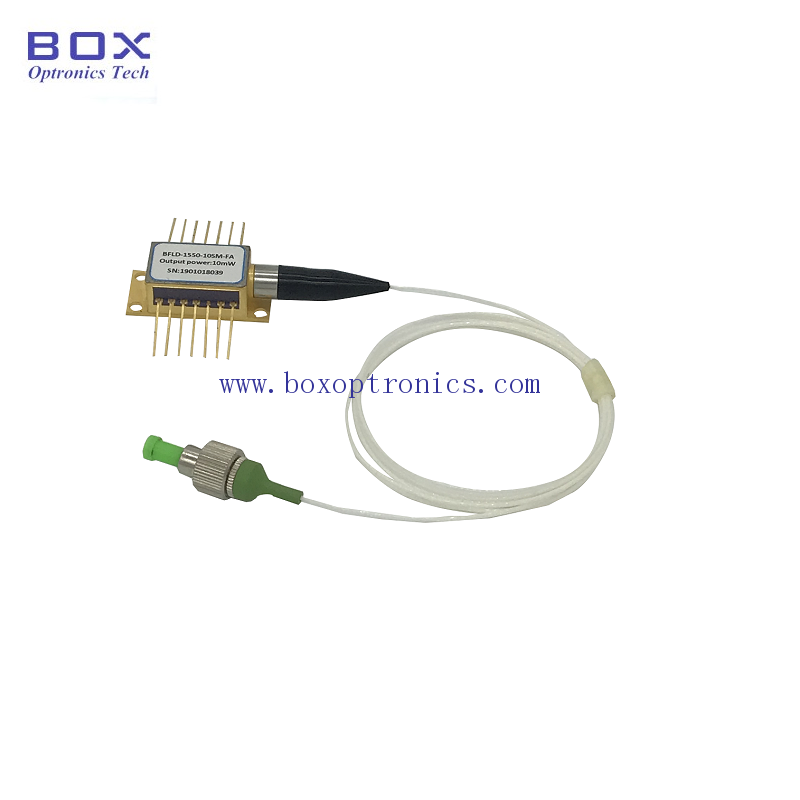

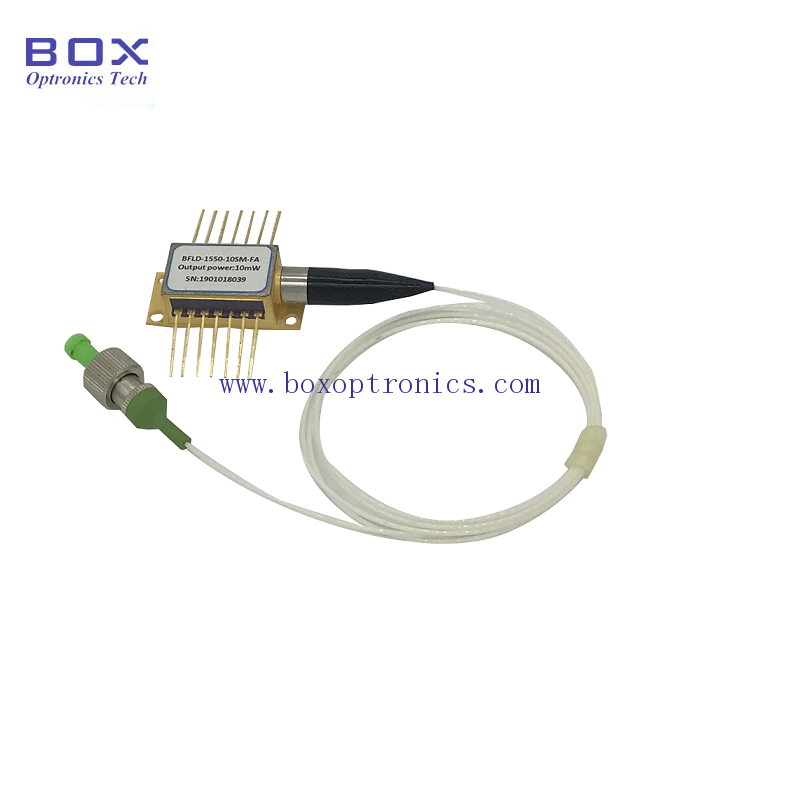

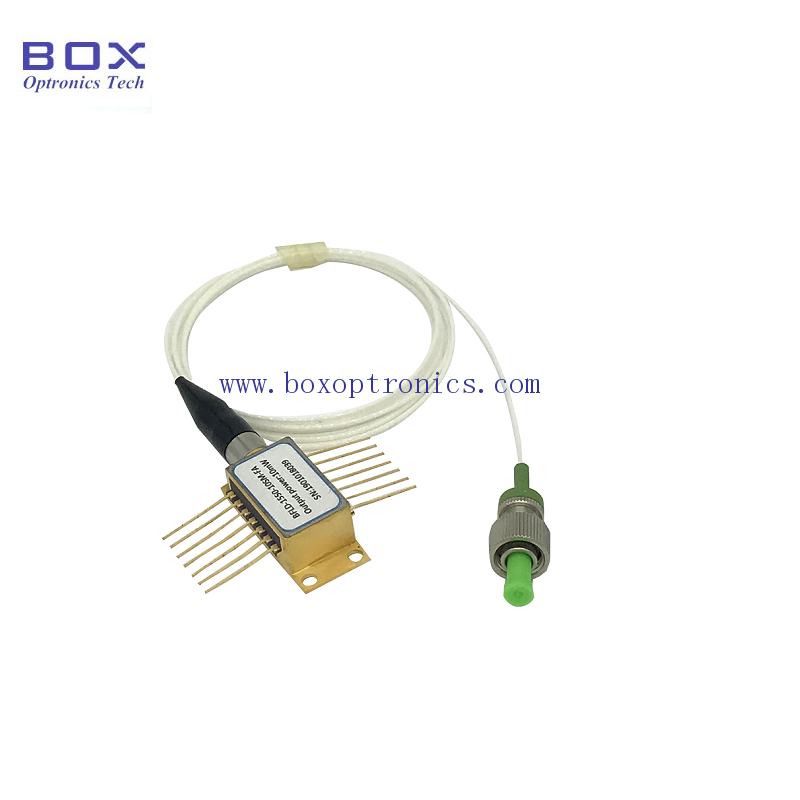

For lidar 14pin Package 1570nm 10mW Distributed feedback laser
Semiconductor lasers offer low power consumption and high output and are suitable for optical systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| 中心波长 λc [TL=15～35ºC CW] | min:1568 nm；typical:1570 nm；max:1572 nm |
| 输出功率 P_O | min:10 mW |
| 光谱线宽 LW [全波半波(FWHM)] | typical:2 MHz |
| 带宽 BW [@-3dB] | typical:2.5 GHz |
| 边模抑制比 SMSR [CW] | min:35 dB；typical:40 dB |
| 光隔离度 [-10 < TC < +70 ºC] | min:30 dB |
| 相对强度噪声 RIN [CW, 输出功率5mW] | typical:-145 dB |
| 波长温度系数 Δλ/ΔT [TEC温度15ºC-35ºC] | typical:0.09 nm/℃ |
Applications
Key Features
Datasheet
