AF2206 Autofocus galvanometer

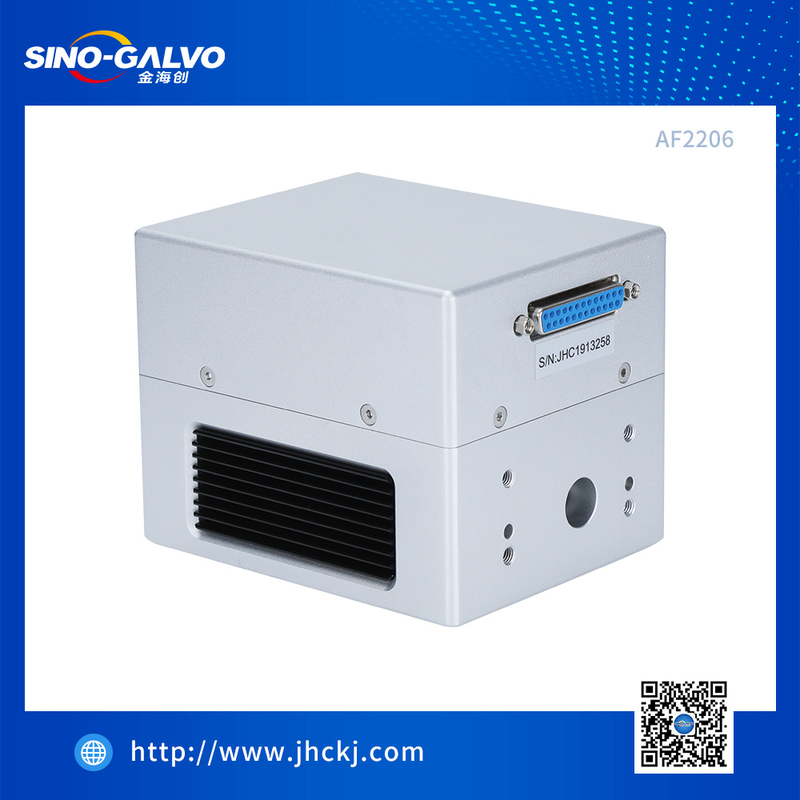

The AF2206 galvanometer scanner offers stable operation, high positioning accuracy, fast marking, and strong interference resistance. Its autofocus module provides one-touch rapid positioning to improve efficiency. Overall specifications match the technical level of comparable domestic and international products.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Marking speed | 6000mm/s |
| Positioning speed | 11000mm/s |
| Writing speed | 516cps |
| Step response time [Full travel 1%] | 288us |
| Step response time [Full travel 10%] | 895us |
| Tracking error | ≤164us |
| Linearity | 99.9% |
| Repeatability | ＜8μRad |
| Gain error | ＜5mRad |
| Zero offset (batch origin error) | ＜5mRad |
| Long-term drift [Continuous Operating 8 hours] | ＜0.5mRad |
| Scale drift | ＜40PPM/℃ |
| Zero drift | ＜15μRad/℃ |
| Input Voltage | ±15VDC |
| Rated Current | 2A |
| Interface Protocol | XY2-100 |
| Mechanical scan angle | ±11° |
| Operating Temperature | 0℃~45℃ |
| Storage temperature | -10℃~60℃ |
| Laser input aperture | 10mm |
| Galvanometer dimensions (length × width × height) | 118.5 mm × 96.5 mm × 94.1 mm |
| Galvanometer scanner Weight | ≈1.65Kg |
| Measurement scheme | Laser ranging |
| Measurement range (2 options) | 120~280mm/200~600mm |
| Measurement Resolution | 0.01mm |
| Measurement Accuracy | ±0.1mm |
| Laser Wavelength | 620~690nm |
| Single operation Measurement Time | 0.25s |
