16X16 Distributed optical switching subsystem
Save to Favorites

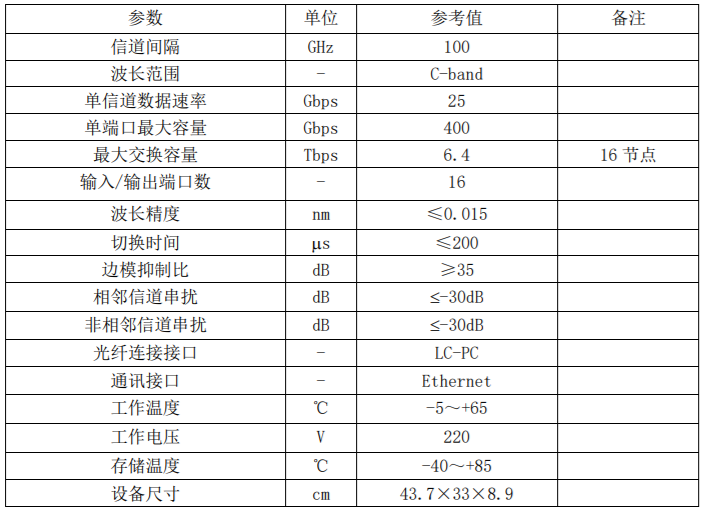

Specifications
| Parameter | Value |
|---|---|
| 信道间隔 | 100 GHz |
| 波长范围 | C-band |
| 单信道数据速率 | 25 Gbps |
| 单端口最大容量 | 400 Gbps |
| 最大交换容量 [16节点] | 6.4 Tbps |
| 输入/输出端口数 | 16 |
| 波长精度 | ≤0.015 nm |
| 切换时间 | ≤200 μs |
| 边模抑制比 | ≥35 dB |
| 相邻信道串扰 | ≤-30dB |
| 非相邻信道串扰 | ≤-30dB |
| 光纤连接接口 | LC-PC |
| 通讯接口 | Ethernet |
| 工作温度 | -5~+65 °C |
| 工作电压 | 220 V |
| 存储温度 | -40~+85 °C |
| Equipment尺寸 | 43.7 cm × 33 cm × 8.9 cm |
Applications
Key Features
Datasheet
