2.0μm Point Light Source
The 2.0 μm laser point source is a miniature device for precise spatial positioning, eye safety and strong environmental adaptability. Eye safety, micrometer-level spot positioning, high peak power, automotive-grade robustness and multiband customization make it key to next-generation LiDAR, precision medicine and industrial processing.
Save to Favorites
Overview

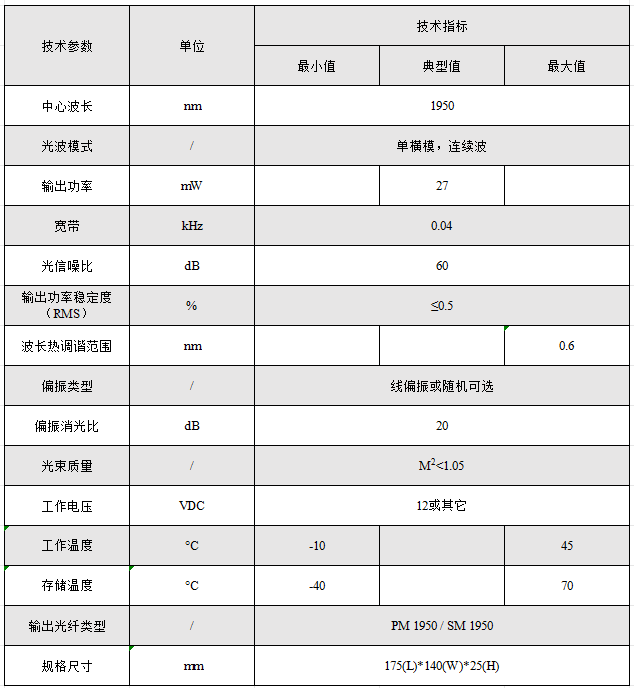

Specifications
| Parameter | Value |
|---|---|
| Center wavelength | 1950 nm |
| Optical Wave Mode | Single Transverse Mode, Continuous Wave |
| Output Power | Typical ：25 mW |
| Spectral width | 0.04 nm |
| Optical signal-to-noise ratio | 60 dB |
| Output Power Stability (P-P) | ≤0.5 % |
| Wavelength Thermal Tuning Range | Max ：0.6 nm |
| Polarization type | Linear polarization |
| Polarization Extinction ratio | 20 dB |
| Beam quality M² | M²<1.05 |
| Operating voltage | 12 or other |
| Operating temperature | Min ：-10 °C； Max ：45 °C |
| Storage temperature | Min ：-40 °C； Max ：70 °C |
| Output Fiber Type | PM1950/SM1950 |
| Specifications Dimensions | 175(L)*140(W)*25(H) |
