1.5μm Point Light Source
The 1.5 μm laser point source is a miniature device operating in the infrared eye-safe band with excellent optical performance. Eye safety, high peak power, miniature packaging and environmental stability make it ideal for lidar, quantum technology and precision medicine.
Save to Favorites
Overview

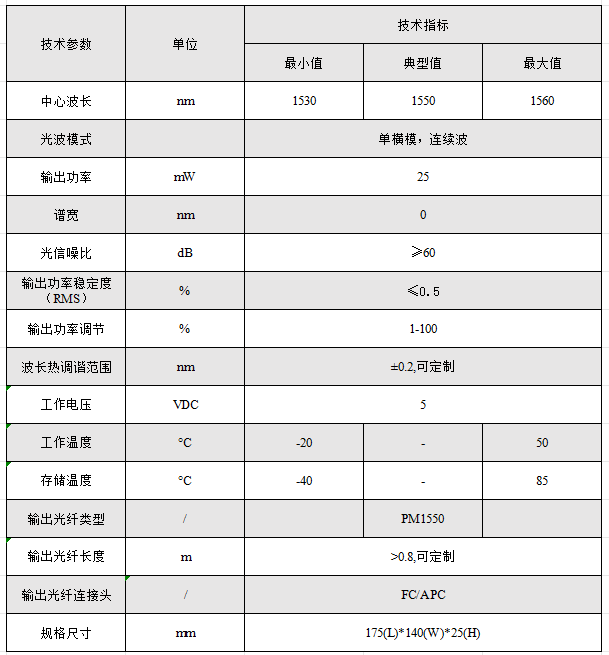

Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | Min ：1530 nm； Typical ：1550 nm； Max ：1560 nm |
| Optical Wave Mode | Single Transverse Mode, Continuous Wave |
| Output Power | 25 mW |
| Spectral width | 0.04 nm |
| Optical signal-to-noise ratio | >50 dB |
| Output Power Stability (P-P) | ≤0.5 % |
| Output Power adjustment | 1-100 % |
| Wavelength Thermal Tuning Range | ±0.2, customizable |
| Operating voltage | 5 VDC |
| Operating temperature | Min ：-10 °C； Max ：45 °C |
| Storage temperature | Min ：-40 °C； Max ：70 °C |
| Output Fiber Type | Typical ：PM1550 |
| Output Fiber Length | >0.8, customizable |
| Output Fiber connector | FC/APC |
| Specifications Dimensions | 175(L)*140(W)*25(H) |
