JW8607 Automatic Polarization Extinction Ratio Tester (JW8607 Type A)

Wavelength Range: 400~700 nm Maximum Input Power [Power Customizable]: +10/+25 dBm (power customizable) Input Power Range: -30~+10 dBm

The JW18001 PER multi-channel polarization extinction ratio test system is a high-precision test platform developed by Jiahui Optics based on years of experience. It is dedicated to the core performance evaluation of polarization-maintaining devices and systems, and can accurately perform polarization extinction ratio (PER) measurement, light source degree of polarization analysis, and extinction ratio testing of polarization-maintaining fibers and connectors. The system has large dynamic range PER measurement capability, supports multi-channel synchronous detection and channel expansion, and while achieving high-precision, high-stability testing, integrates insertion loss measurement, temperature monitoring, and continuous data recording functions. Its host computer software facilitates data management and statistical analysis and supports long-term reliability monitoring, making it an ideal test solution for ensuring efficiency and reliability of polarization-maintaining devices in R&D, production, and quality inspection.

Wavelength Range: 400~700 nm Maximum Input Power [Power Customizable]: +10/+25 dBm (power customizable) Input Power Range: -30~+10 dBm

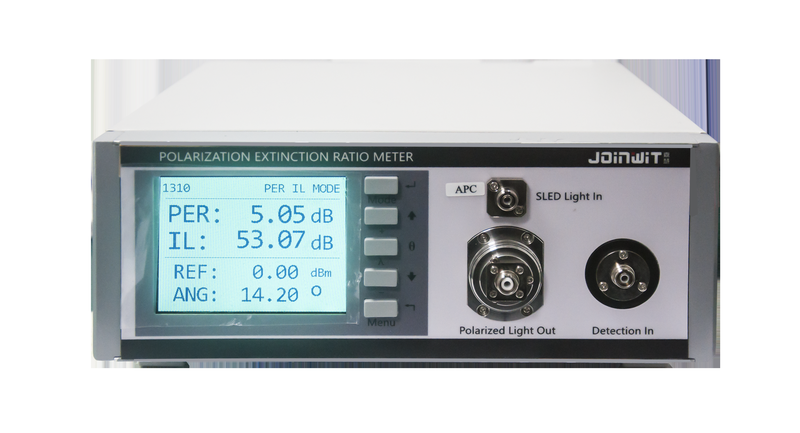

The JW8607 automatic polarization extinction ratio tester is a new-generation precision optical detection device developed by Shanghai Jiahui. It is specially designed for measuring the polarization extinction ratio, light source degree of polarization, and polarization axis angle of polarization-maintaining devices (such as fibers, optical devices, and connectors). Its host computer software is powerful and easy to operate, and the newly added automatic polarization function further improves the speed and convenience of testing, with an overall simple and efficient design.

Wavelength Range: 600~1200 nm Maximum Input Power [Power Customizable]: +10/+25 dBm (power customizable) Input Power Range: -40~+10 dBm

The JW18001 PER multi-channel polarization extinction ratio test system is a high-precision test platform developed by Jiahui Optics based on years of experience. It is dedicated to the core performance evaluation of polarization-maintaining devices and systems, and can accurately perform polarization extinction ratio (PER) measurement, light source degree of polarization analysis, and extinction ratio testing of polarization-maintaining fibers and connectors. The system has large dynamic range PER measurement capability, supports multi-channel synchronous detection and channel expansion, and while achieving high-precision, high-stability testing, integrates insertion loss measurement, temperature monitoring, and continuous data recording functions. Its host computer software facilitates data management and statistical analysis and supports long-term reliability monitoring, making it an ideal test solution for ensuring efficiency and reliability of polarization-maintaining devices in R&D, production, and quality inspection.

Wavelength Range: 1200~1700 nm Maximum Input Power [Power Customizable]: +10/+25 dBm (power customizable) Input Power Range: -40~+10 dBm

The JW8607 automatic polarization extinction ratio tester is a new-generation precision optical detection device developed by Shanghai Jiahui. It is specially designed for measuring the polarization extinction ratio, light source degree of polarization, and polarization axis angle of polarization-maintaining devices (such as fibers, optical devices, and connectors). Its host computer software is powerful and easy to operate, and the newly added automatic polarization function further improves the speed and convenience of testing, with an overall simple and efficient design.
